Agilent 6500 Series Q-TOF LC/MS Maintenance Guide 127
Maintenance 2
To clean the ion optics assembly
11 Use the 1.5 mm ball driver to remove the two screws that hold Lens 2
(Figure 65). Then remove the spacer insulator (Figure 66).

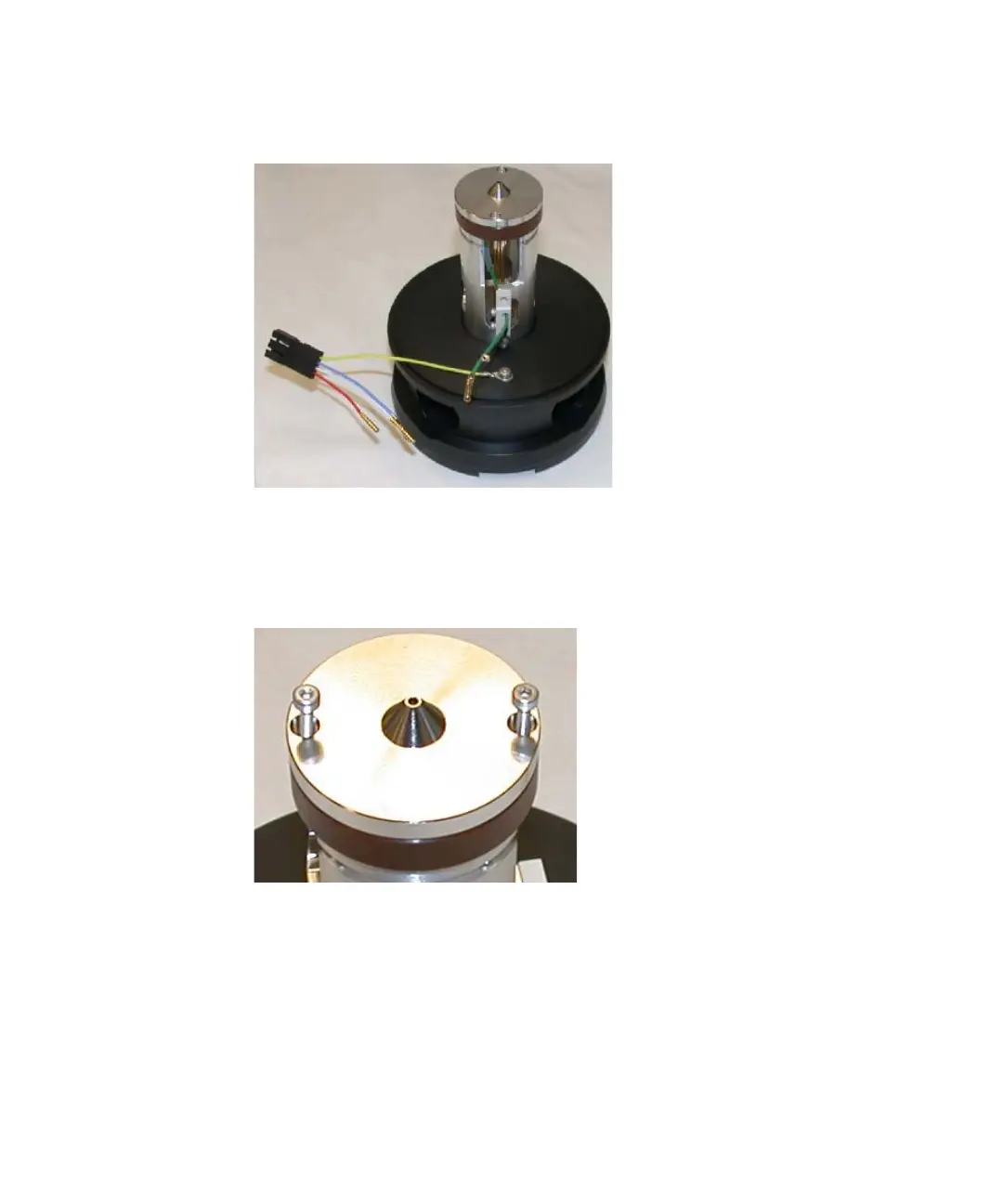

Figure 64 Skimmer spacer
Figure 65 Lens 2
