Agilent 6500 Series Q-TOF LC/MS Maintenance Guide 131
Maintenance 2
To clean the ion optics assembly
23 Reinstall the desolvation assembly onto the front of the vacuum manifold.
Reinstall the Aux module onto the top of the vacuum manifold, and
reconnect the connections to the Aux module. Reconnect the drying gas
heater cable and the drying gas line to the side of the desolvation assembly.

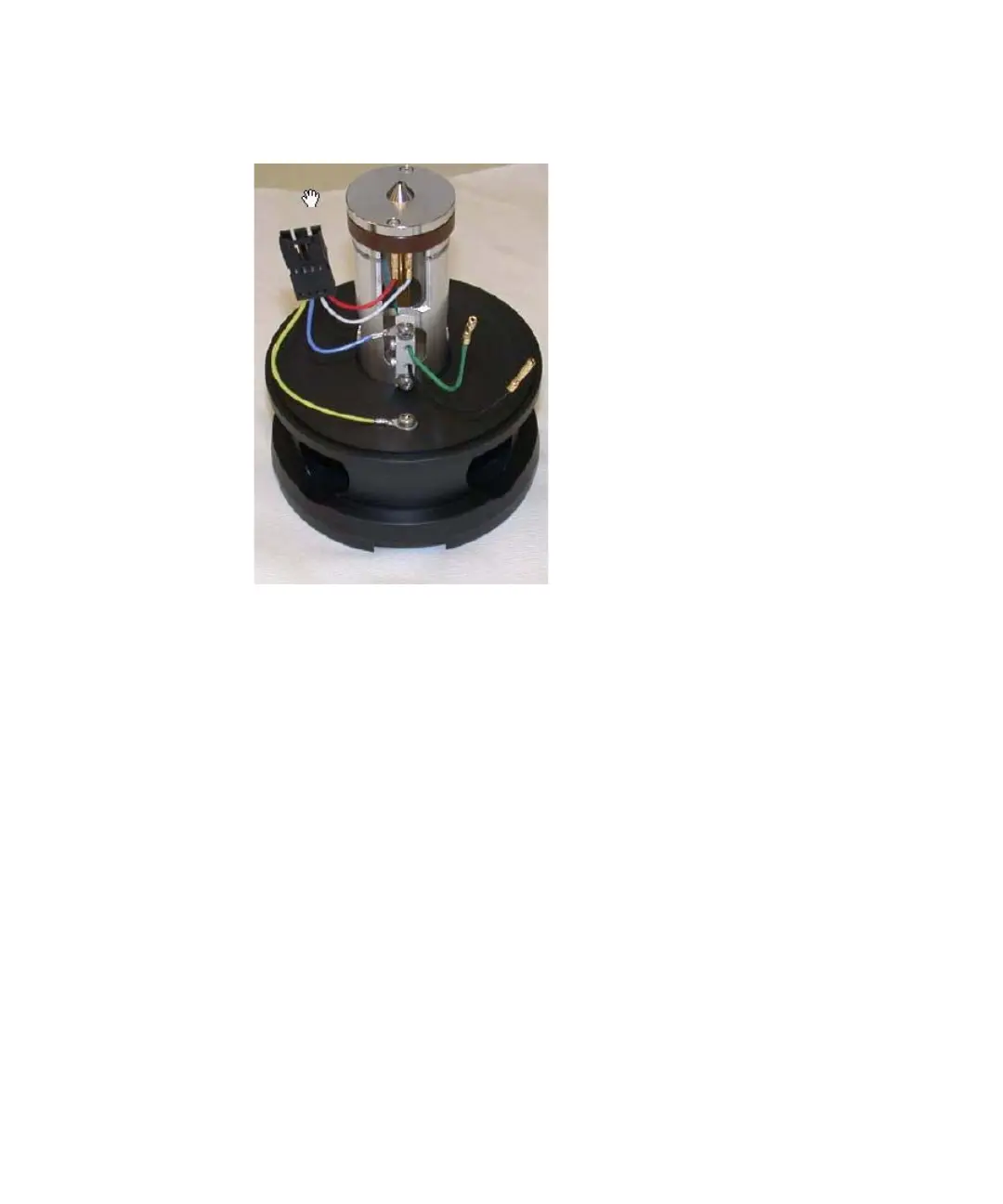

Figure 69 The re-assembled ion optics assembly
