130 Agilent 6500 Series Q-TOF LC/MS Maintenance Guide
2Maintenance
To clean the ion optics assembly
22 After reassembly of the ion optics assembly (see Figure 69), reinstall the ion
optics assembly into the vacuum manifold. Connect the green and black
octopole leads, and reconnect the lens cable connector.

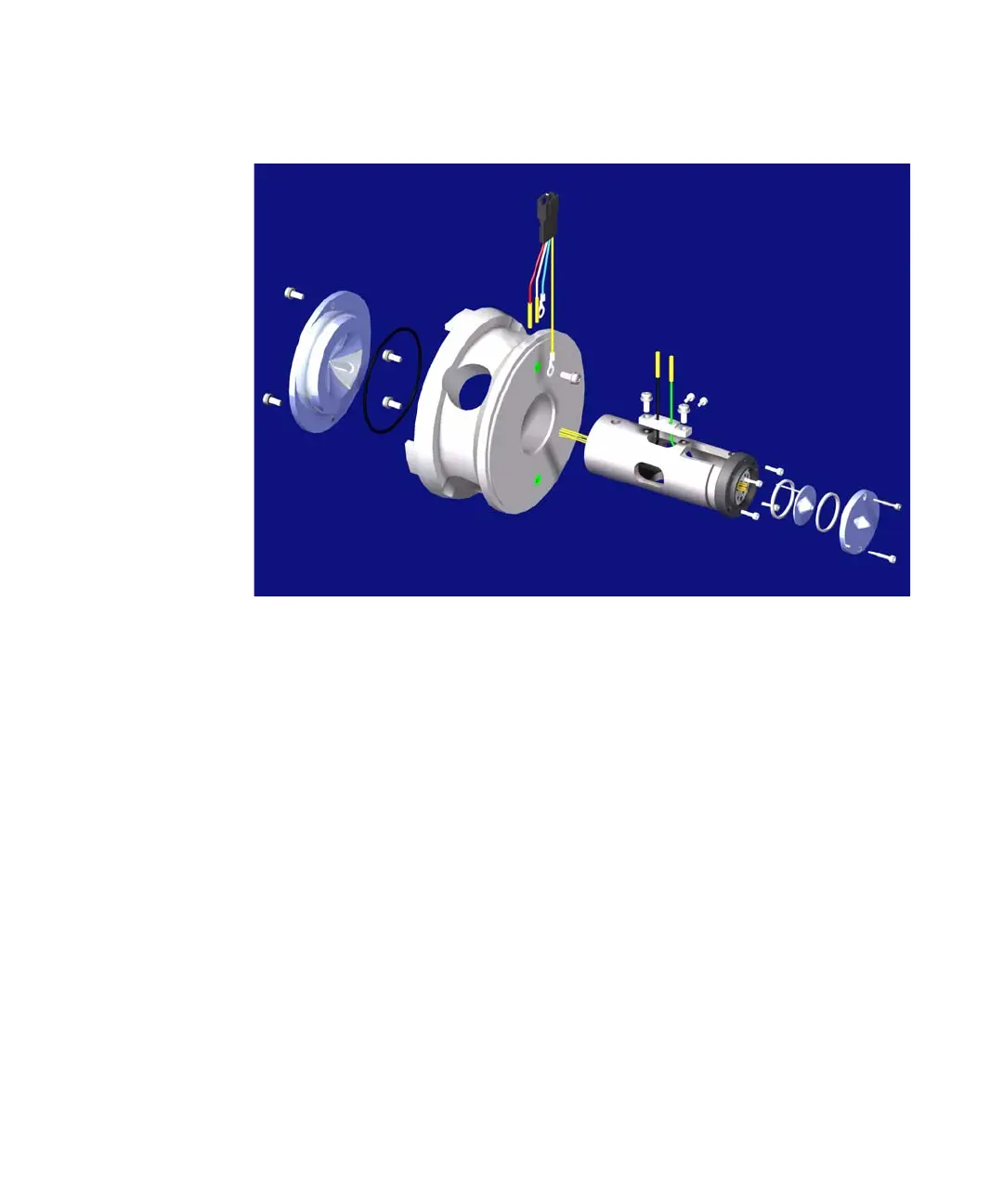

Figure 68 An exploded view of the ion optics assembly
