To clean the high pressure ion funnel
2 Slowly put the high pressure ion funnel in a glass beaker. See Figure 73.

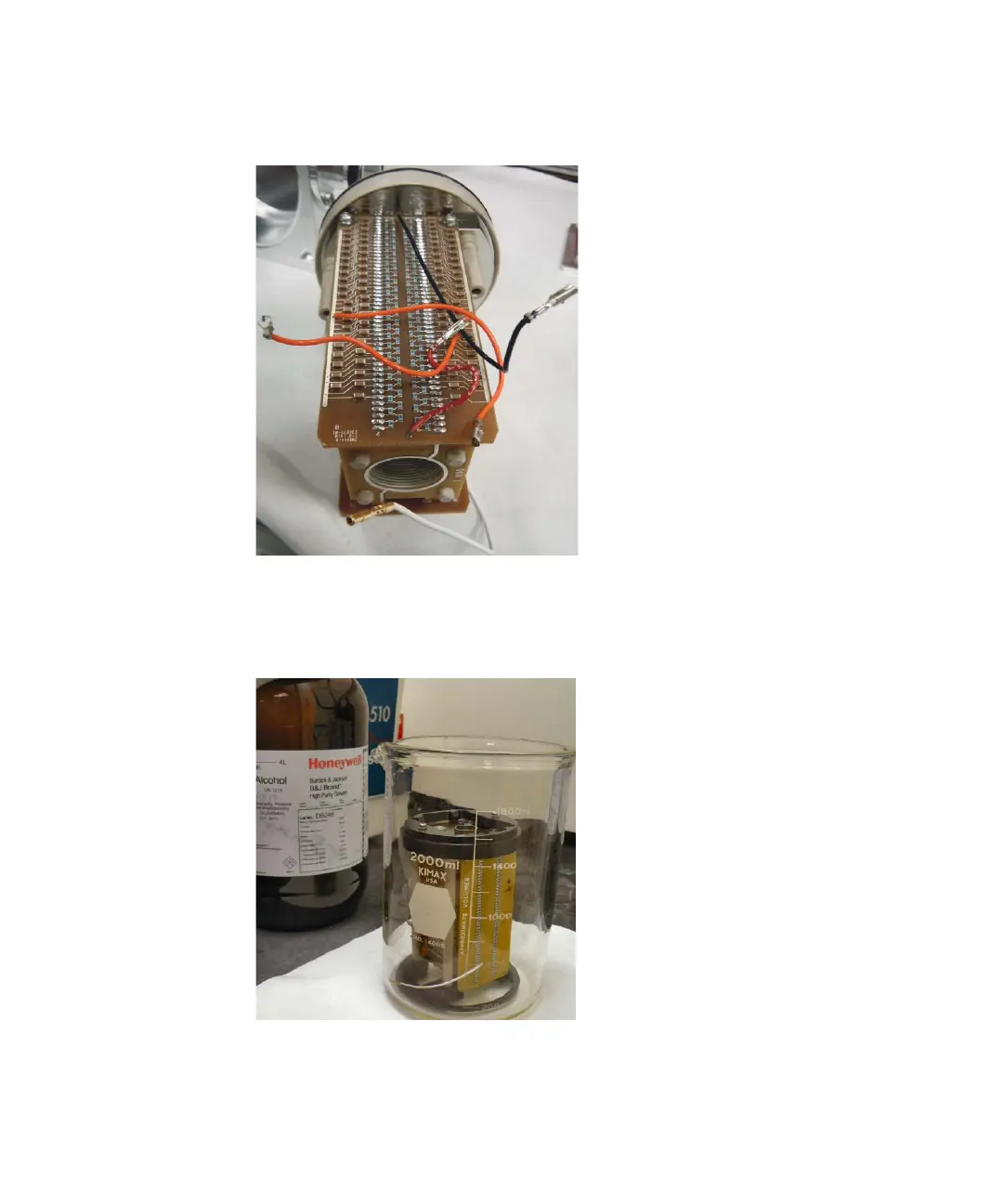

Figure 72 High pressure ion funnel on top of a clean cloth.
Figure 73 High pressure ion funnel in a glass beaker.
