Return Loss Measurement Getting Started With Return Loss
136 Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement
System, & Agilent 8166A Lightwave Multichannel System, Fourth Edition
connector at the output is not damaged. The full range of patchcords available are
described in Table 3.
Disturbance of the source due to reflections is reduced because the patchcord uses
a high return loss connector.
The setup described uses a fiber with Diamond HMS-10/Agilent/HRL and
Diamond HMS-10/Agilent connectors throughout.
1 Making sure to clean all the connectors, set up the instrument as shown in the
Figure 87. Connect the source to the HP 81534A Input. Attach the high return
loss connector of the patchcord to the Output. The high return loss connector
on these cables is the connector with the orange sleeve. For best results and
higher repeatability, fix the cables.
Table 3 High Return-Loss Patchcords
Model No. High Return-Loss Patchcords
Description
Agilent 81102AC Diamond HMS-10/Agilent/HRL - Diamond HMS-10/Agilent/HRL
Agilent 81102BC Diamond HMS-10/Agilent/HRL - Bare Fiber
Agilent 81102DC Diamond HMS-10/Agilent/HRL - Radiall
Agilent 81102PC Diamond HMS-10/Agilent/HRL - FC/APC
Agilent 81102SC Diamond HMS-10/Agilent/HRL - DIN/HRL-10
Agilent 81109AC Diamond HMS-10/Agilent/HRL - Diamond HMS-10/Agilent

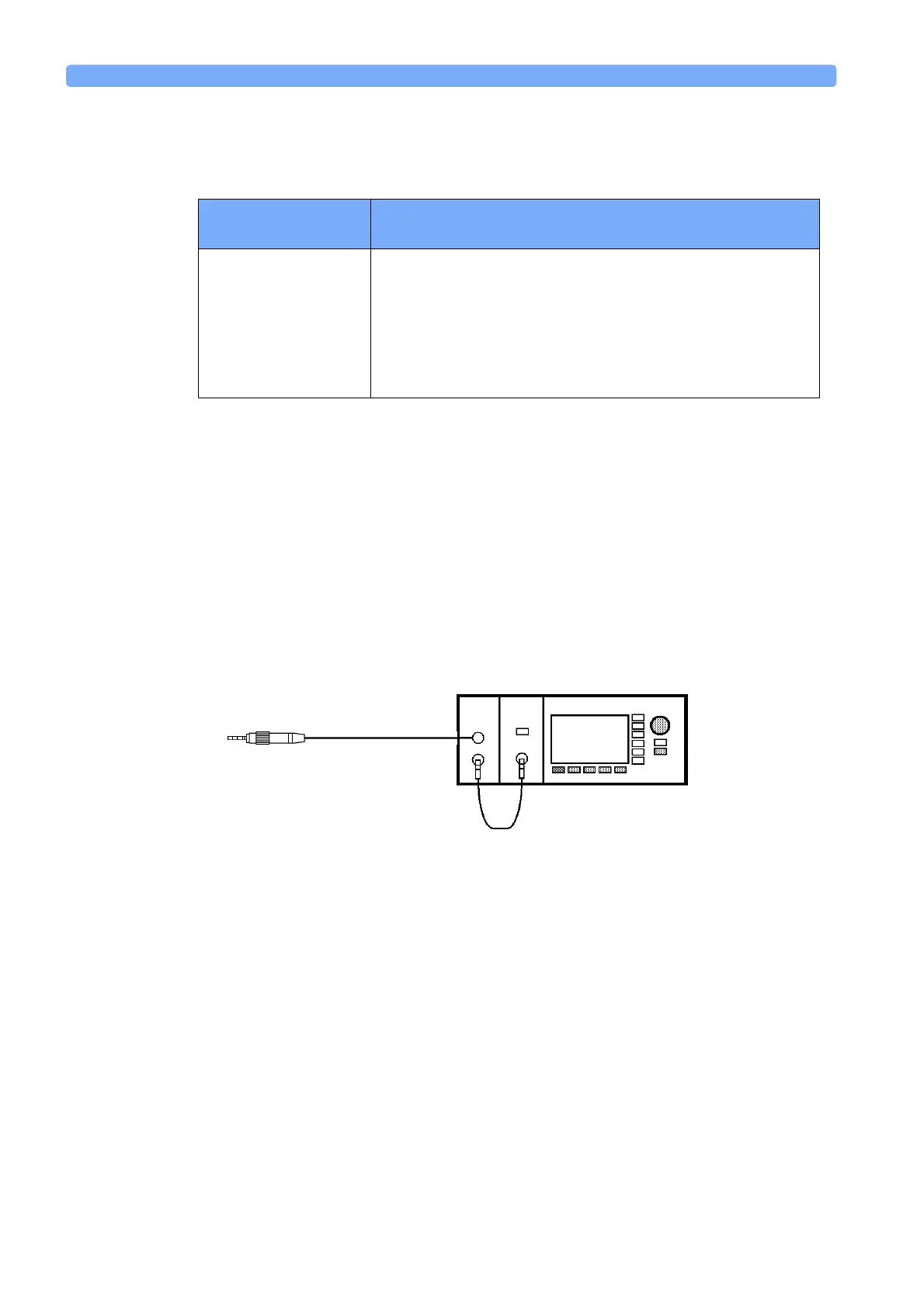

Figure 87 Return Loss Measurement Setup
81534A
Laser
Source
8163A Lightwave Multimeter
Agilent 81101AC
Agilent 81109AC
