Working with Application Graphs Applications
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
163
Figure 115 shows a graph where markers A and B are not locked to samples. If
you press the cursor key, the marker will move along the curve.
NOTE You can only lock/unlock markers to samples if you have already locked markers
to the curve, see “How to Lock Markers to the Curve” on page 161.
To lock/unlock markers to samples:
1 Press the [Menu] softkey.
2 Move to one of the following menu items:
– <Lock to Samples On>, to lock markers to samples or
– <Lock to Samples Off>, to lock markers to the curve.
NOTE Only one of these menu items will be available for selection.
3 Press Enter to return to the graph.

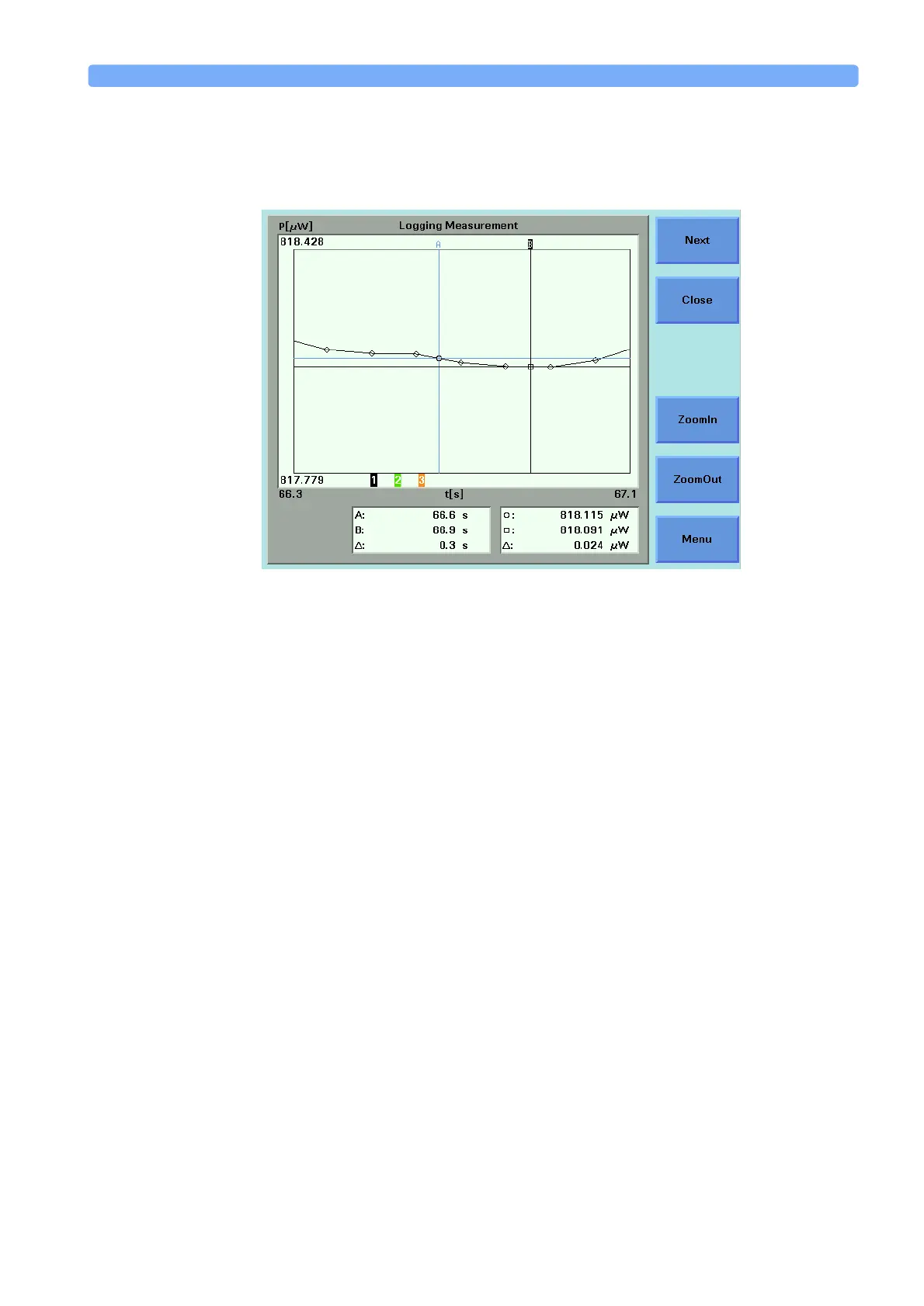

Figure 115 Lock to Samples Off
