Agilent Technologies 8163A User Guide

Input and Output Connectors Installation and Maintenance
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
217
There is one output BNC connectors: the Trigger Output, see Figure 167 or
Figure 168. This is a TTL output. Do not apply an external voltage to this
connector.

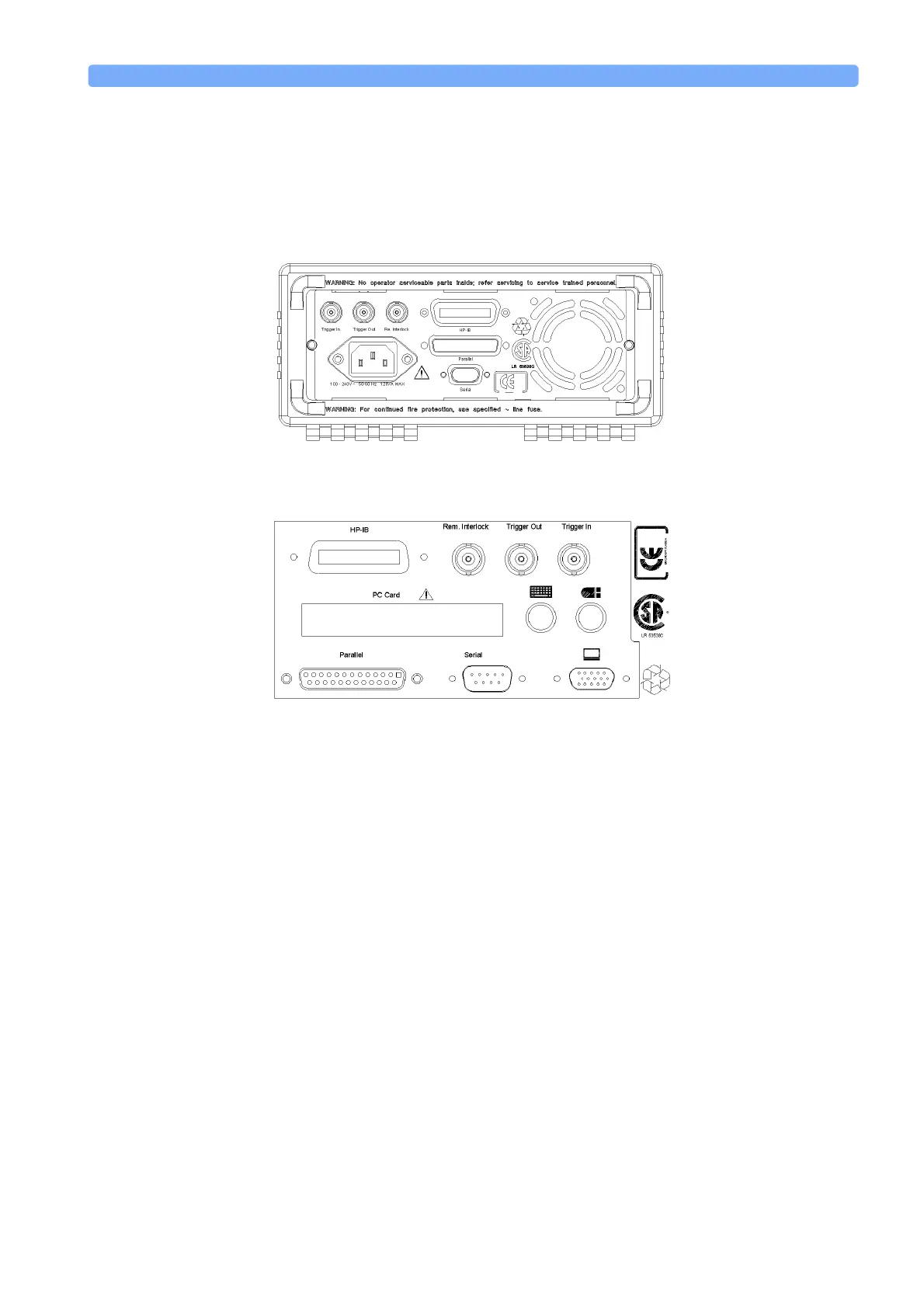

Figure 167 Rear Panel of the Agilent 8163A Lightwave Multimeter System
Figure 168 Rear Panel of the Agilent 8164A Lightwave Measurement System
