How to Use Laser Source Modules Laser Sources
Agilent 8163A Lightwave Multimeter, Agilent 8164A Lightwave Measurement System, & Agilent 8166A Lightwave
Multichannel System, Fourth Edition
99
3 Move to <Output Trigger Mode>, by using the cursor key, and press Enter.
You will see the screen in Figure 64.
4 Move to one of the following, by using the cursor key:
– <Disabled>, the output trigger mode is disabled.
– <Modulation>, the output trigger connector outputs a TTL signal at the
frequency of the internal modulation. This signal is output whether the laser
is switched on or off.
5 Press Enter.

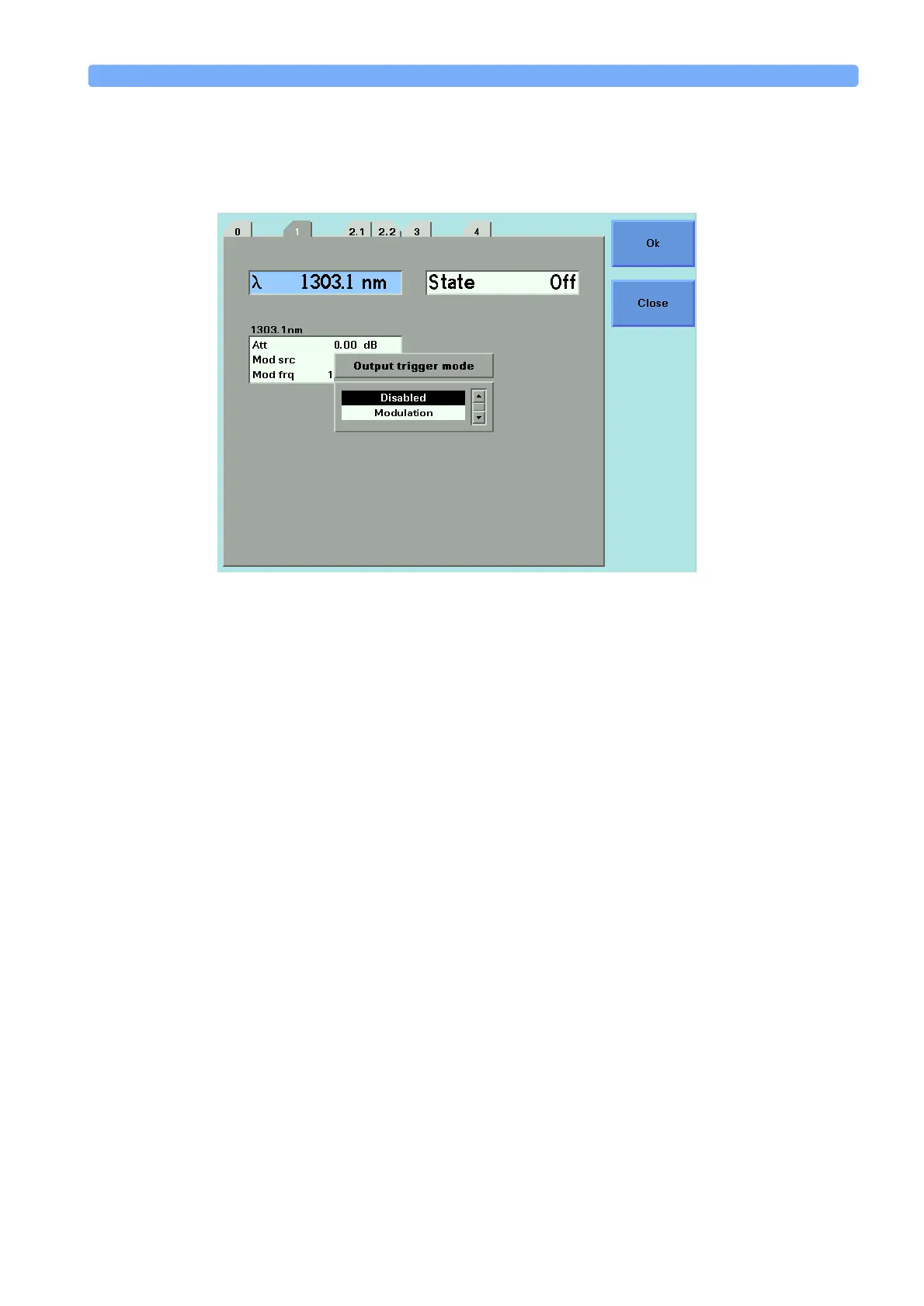

Figure 64 Output Trigger Mode
