152 Chapter 3
Parts List
Hardware

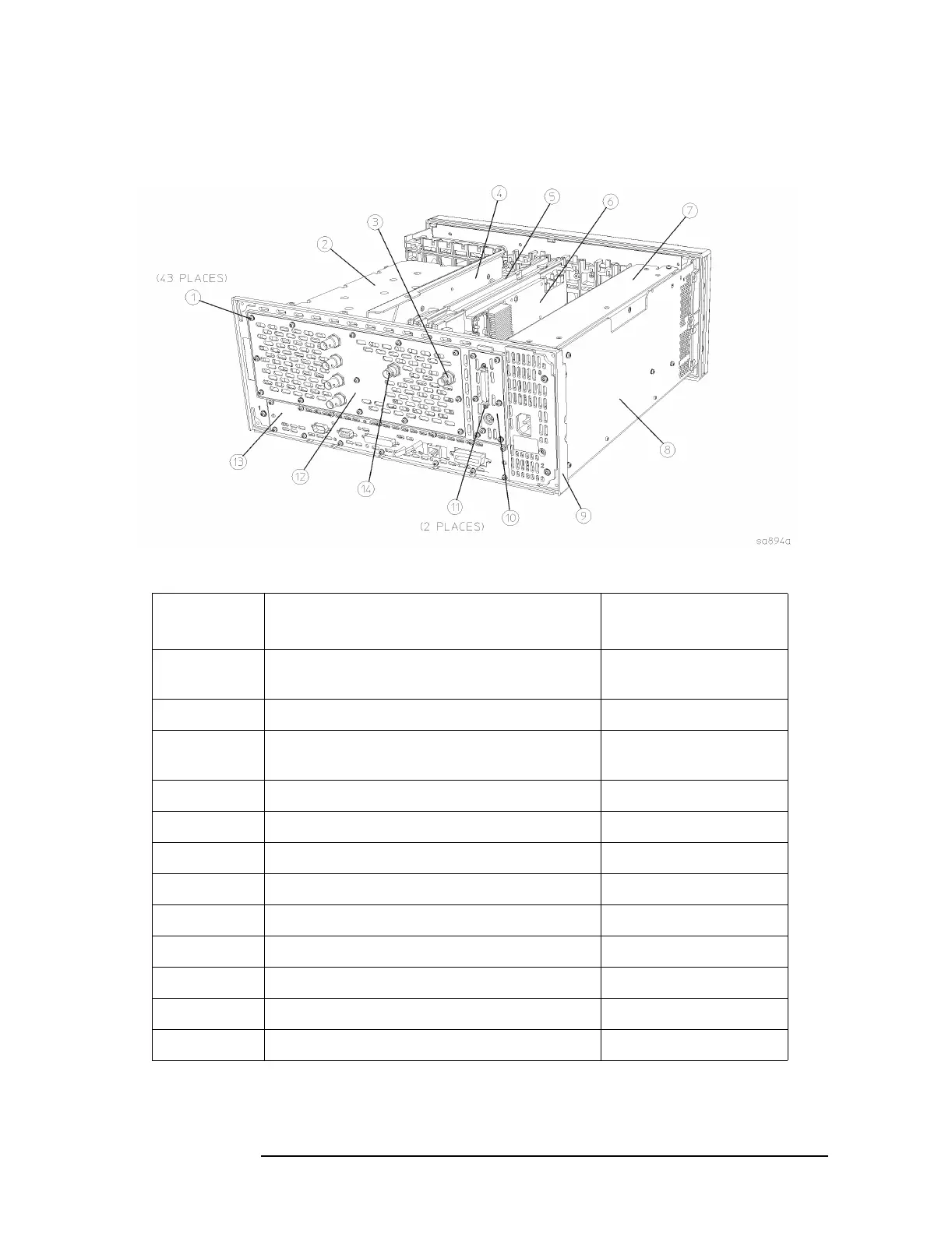

Figure 3-11 Rear Frame Hardware
Item Description
Agilent Part
Number
1 Screw M3x0.5 8mm-LG
(Crest Washer-Pan Head-TORX)
0515-0372
2 A17 RF Assembly E4406-60197
3 W20 Cable, Coax
EXT Trig In, Rear Panel
8120-5055
4 Center Web E4406-60054
5 A12 Analog IF Assembly E4440-60029
6 A10 Digital IF Assembly E4440-60195
7 A6 Power Supply Assembly 0950-2797
8 Chassis E4406-00073
9 Rear Frame Assembly and EMI gaskets E4406-60154
10 Dress Panel, SCSI E4406-00017
11 Screwlock 1252-5828
12 Rear Dress Panel E4406-00032
