188 Chapter 4
Assembly Replacement
A14 Fan Control Board

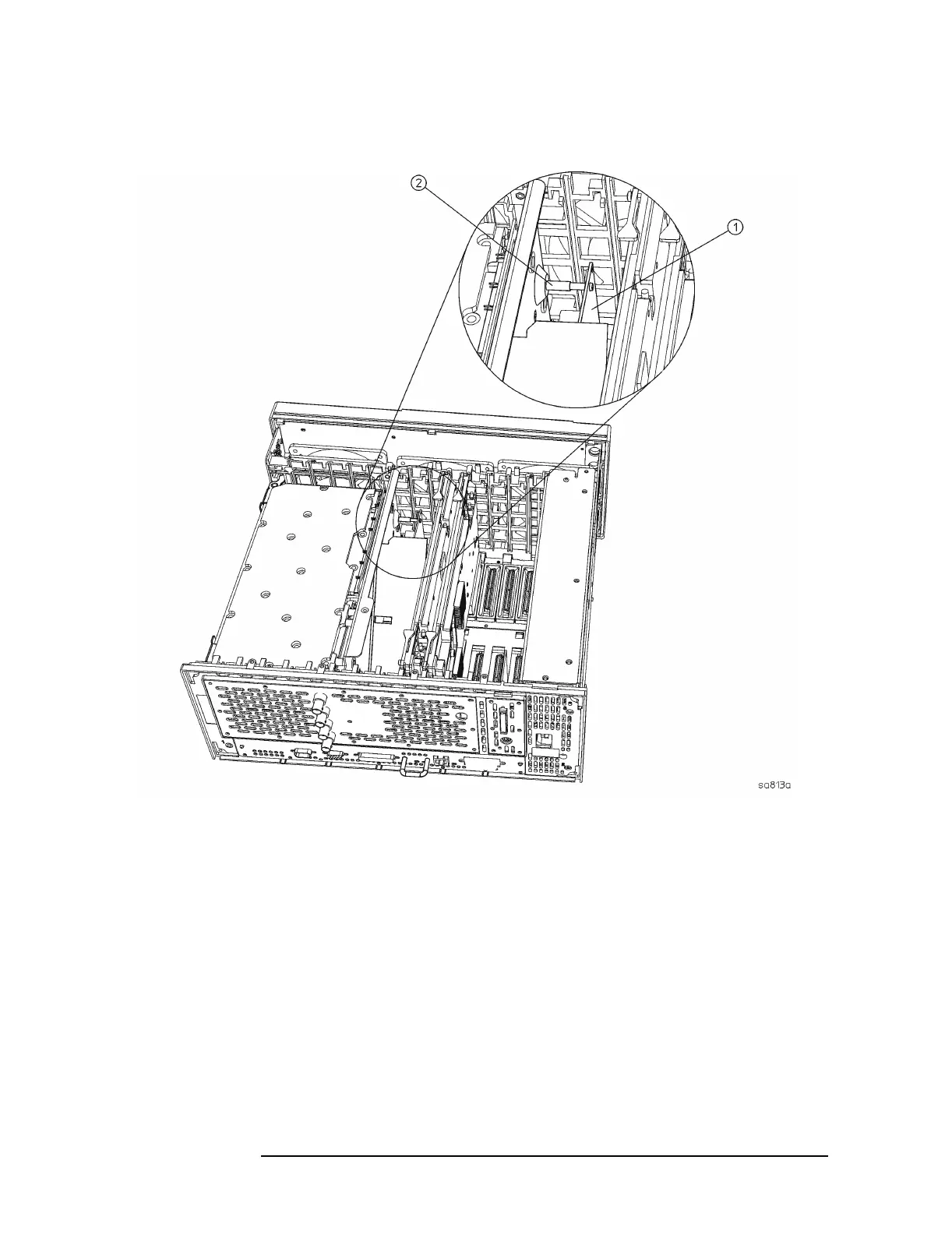

Figure 4-14 Fan Control Board Removal
Replacement
1. Place the fan control board into position and carefully push down to
mate with the motherboard connector.
2. Push the top of the fan control board towards the daughter board
until it snaps onto the snap-top standoffs.
3. Replace the instrument top brace. Refer to the “Top Brace”
replacement procedure.
