Agilent Technologies E4406A VSA Series - A2 Display, Backlights, and Filter

Chapter 4 219
Assembly Replacement
Front Frame Subassemblies
A2 Display, Backlights, and Filter

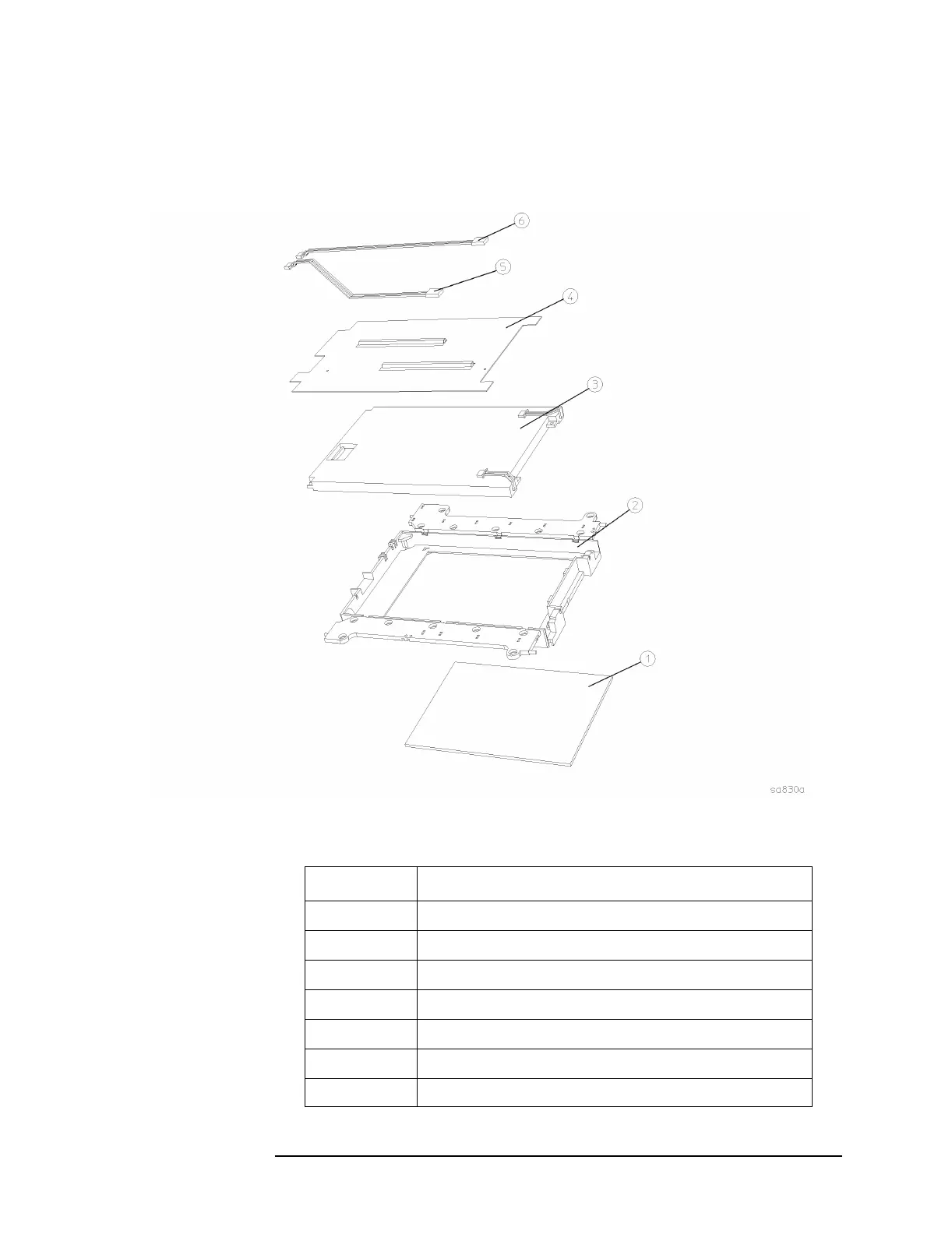

Figure 4-33 Display Parts
Refer to Figure 4-33. The display assembly consists of:
Item Description
1
EMI filter
2
display mount
3
L
CD with backlights
4
D
isplay shield board
5
B
acklight extension cable, bottom
6
B
acklight extension cable, top
7Backlight
