Agilent Technologies E4406A VSA Series - Front Frame Exploded View

218 Chapter 4
Assembly Replacement
Front Frame Subassemblies

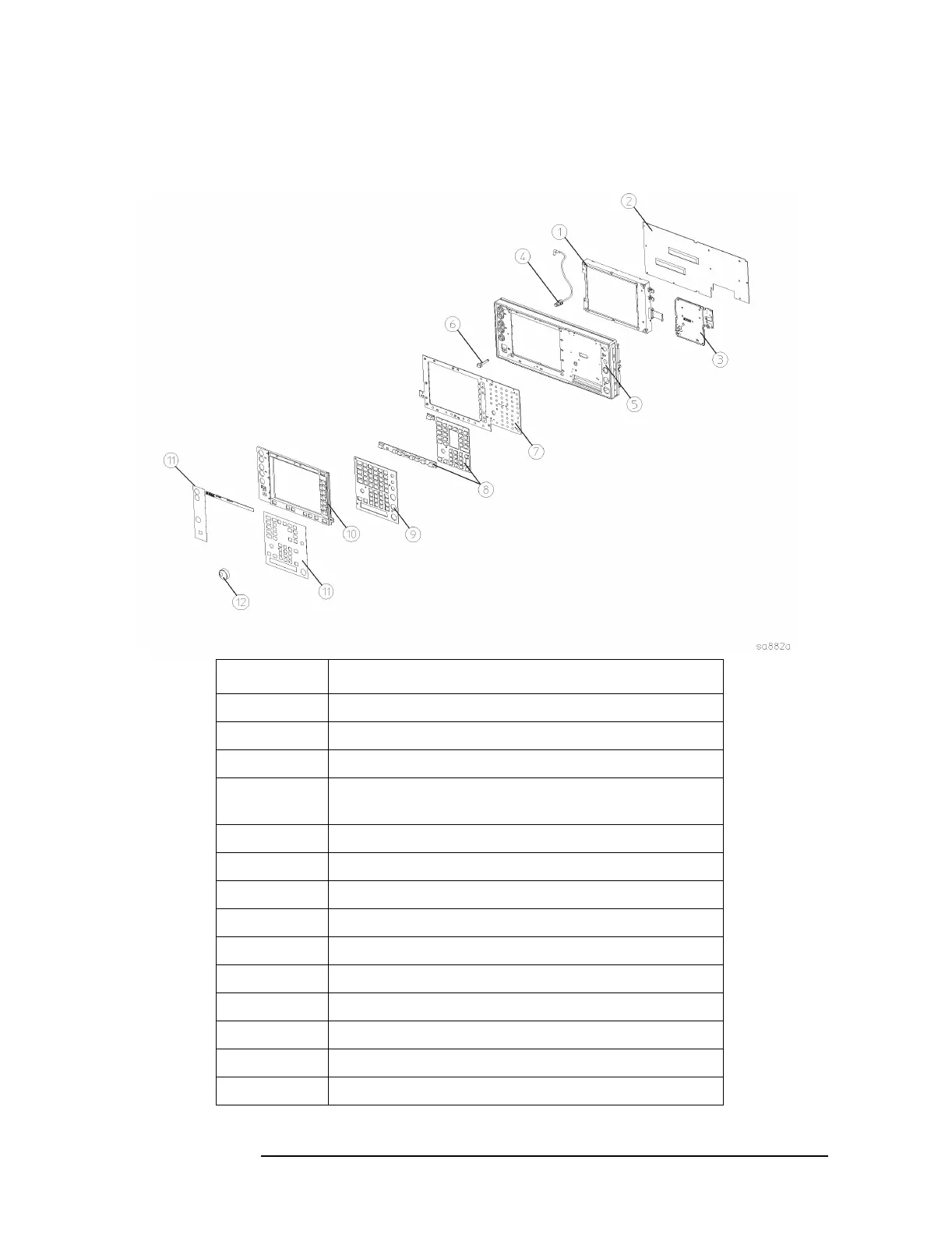

Front Frame Exploded View
Figure 4-32 Front Frame Exploded View
Item Description
1 Display Assembly
2 Front Shield
3 Front Panel Interface Assembly
4 W3 Cable, Coax
Ext Trig In, Front Panel
5 Front Frame Assembly
6 Line Key (push rod)
7 Keyboard
8Keypad
9 and 11 Dress Panel Assembly
10 Display Bezel Assembly (includes E4406-80007
12 RPG Knob
13 Front Panel Overlay, Left
14 Plug, Hole, Nylon
15 Name Plate Overlay
