154 Chapter 3
Parts List
Hardware

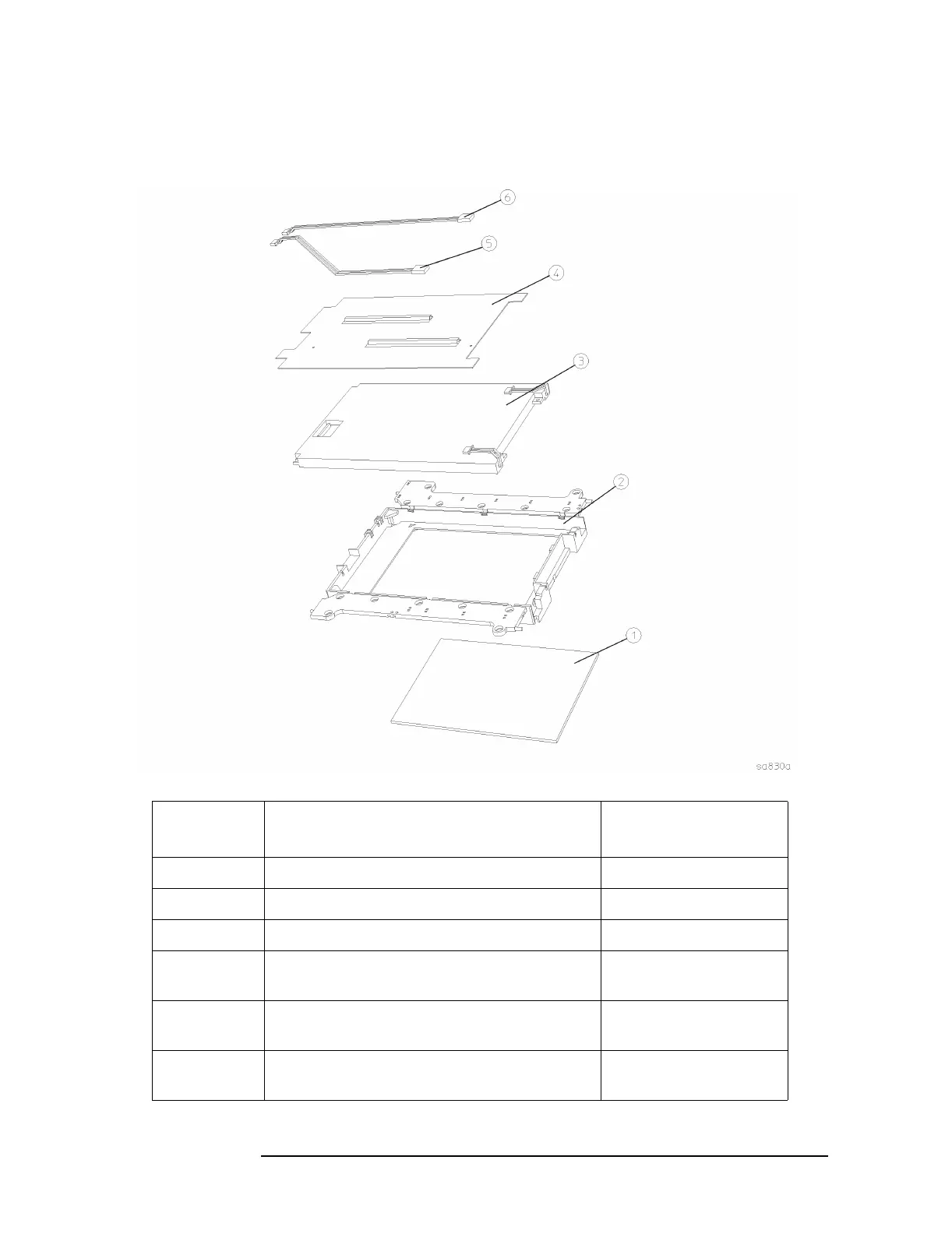

Figure 3-12 Display Parts
(Instruments with Serial Prefix US/MY4402 & below)
Item Description
Agilent Part
Number
1 Display EMI Filter 1000-1001
2 Display Mount E4406-40004
3 Flat Panel Display 2090-0396
4 Display Shield Board
(includes gaskets)
E4406-60052
5 W24 Cable, Backlight Extension
Bottom (264 mm)
8120-8459
6 W23 Cable, Backlight Extension
Top (235 mm)
8120-8460
