Chapter 3 163
Parts List
Hardware

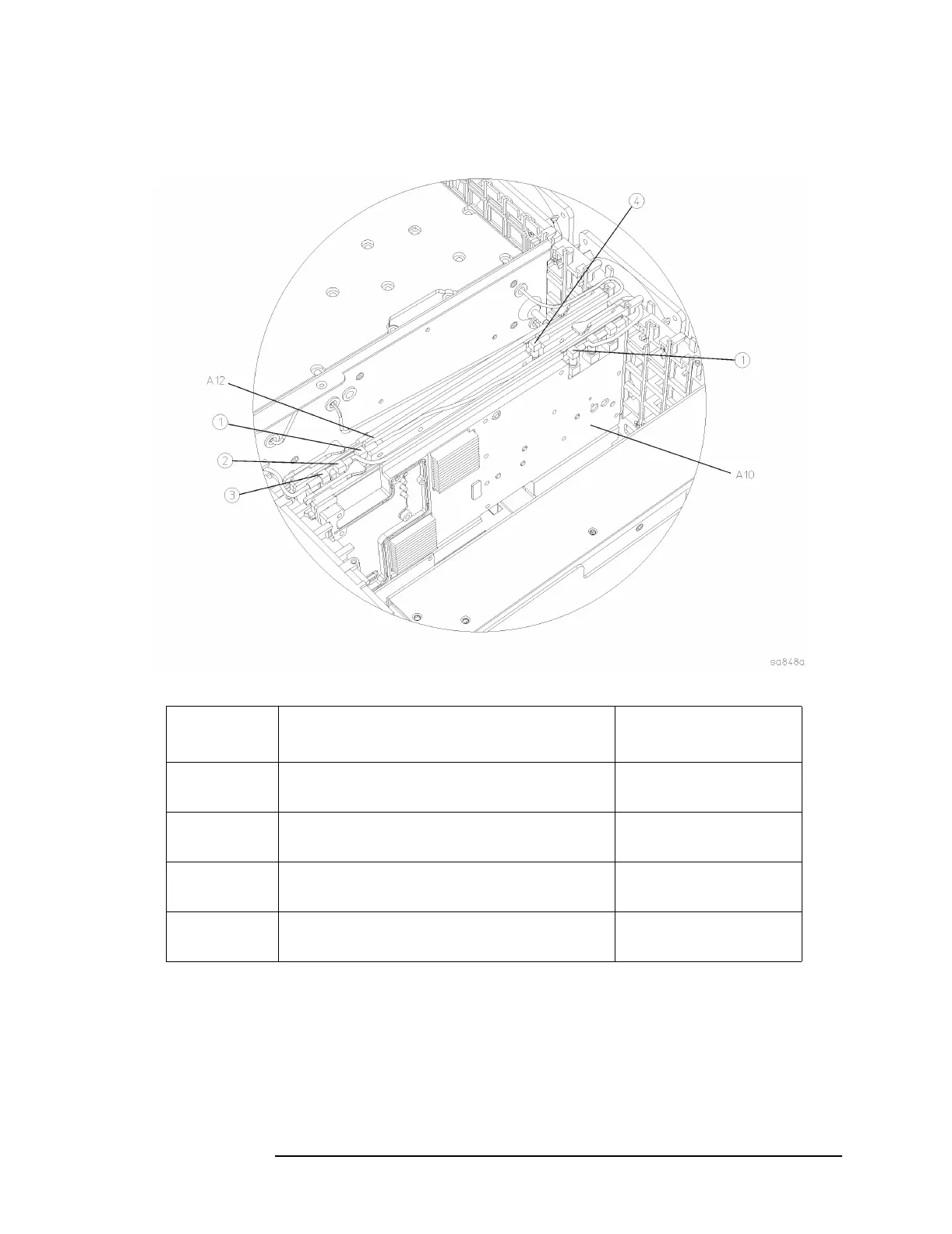

Figure 3-21 Cables
Item Description
Agilent Part
Number
1 W13 - Cable, Coax
7.5 MHz - Digital IF to Analog IF
8120-5022
2 W3 - Cable, Coax
Ext Trig In, Front Panel
E4406-60139
3 W20 - Cable, Coax
Ext Trig In, Rear Panel
8120-5055
4 W12 - Cable, Coax
21.4 MHz - RF to Analog IF
E4406-60027
