36 Chapter 1
Troubleshooting
Power Supply Check

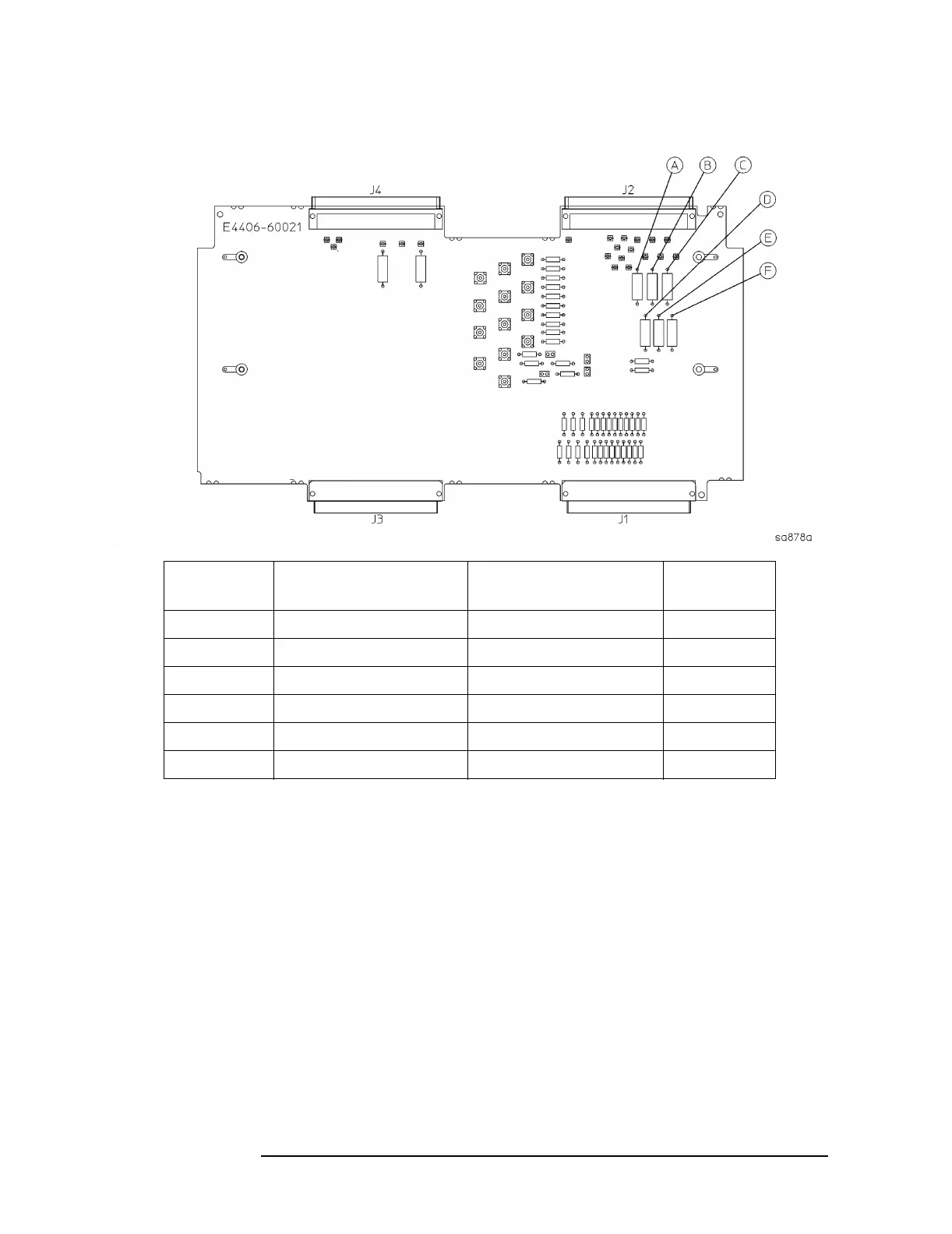

Figure 1-6 E4406-60021 Extender Measurement Locations
Measurement
Location
Signal Description Test Equipment Used Expected
Level
A power supply DVM +5.2 VDC
Bpower supply DVM−5.2 VDC
Cpower supply DVM +15 VDC
Dpower supply DVM −15 VDC
Epower supply DVM +9 VDC
Fpower supply DVM +32 VDC
