Agilent Technologies FieldFox N9913A User Manual

Preparing for Initial Use of Your New FieldFox 17

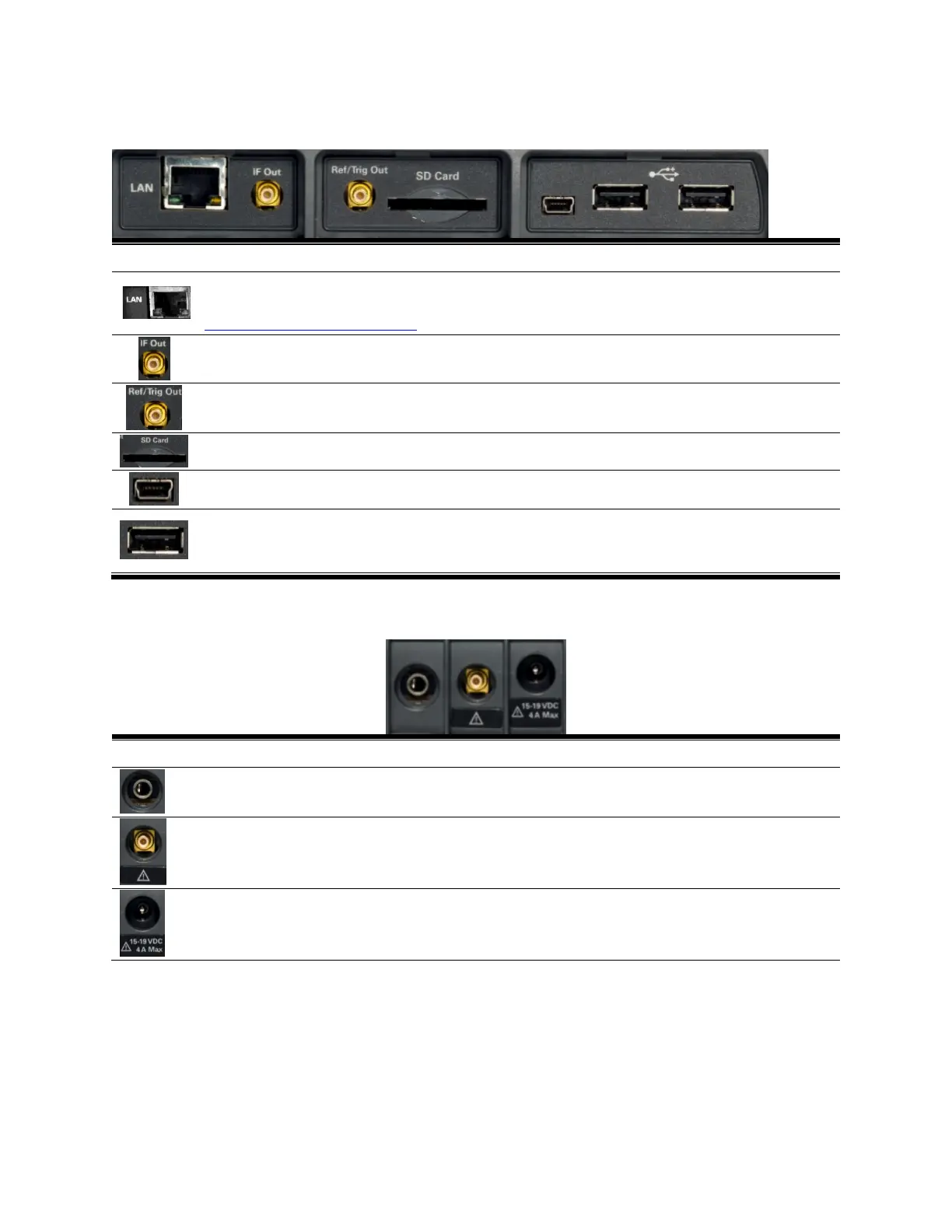

Right Side Panel
Connector
Description
Learn More
Ethernet cable connector to read trace data using the FieldFox Data Link Software.
Download the latest version of the software at:
www.agilent.com/find/fieldfoxsupport
On page 184.
IF Out used in SA mode for external signal processing.
On page 91.
Frequency Reference Source Output
Trigger Output – reserved for future development.
On page 181.
Secure Digital slot. Use to extend the memory of the FieldFox.
File locations on page 164
Reserved for future use.
Two standard USB connectors used to connect a power sensor for Power Meter
Mode. Also used to save files to a USB flash drive.
Use of Keyboard and Mouse is NOT supported.
File locations on page 164
Left Side Panel
Caption
Description
Learn More
Audio output jack for use with SA Mode Tune and Listen.
On page 86
DC Voltage Source for use with external DC Bias.
On page 182
DC power connector used to connect to the AC/DC adapter. Maximum: 19 VDC, 4
ADC.
On page 11

Agilent Technologies FieldFox N9913A Specifications

General

Brand	Agilent Technologies
Model	FieldFox N9913A
Category	Measuring Instruments
Language	English
