Agilent Technologies FieldFox N9913A - Screen Tour

18 FieldFox User’s Guide
Screen Tour

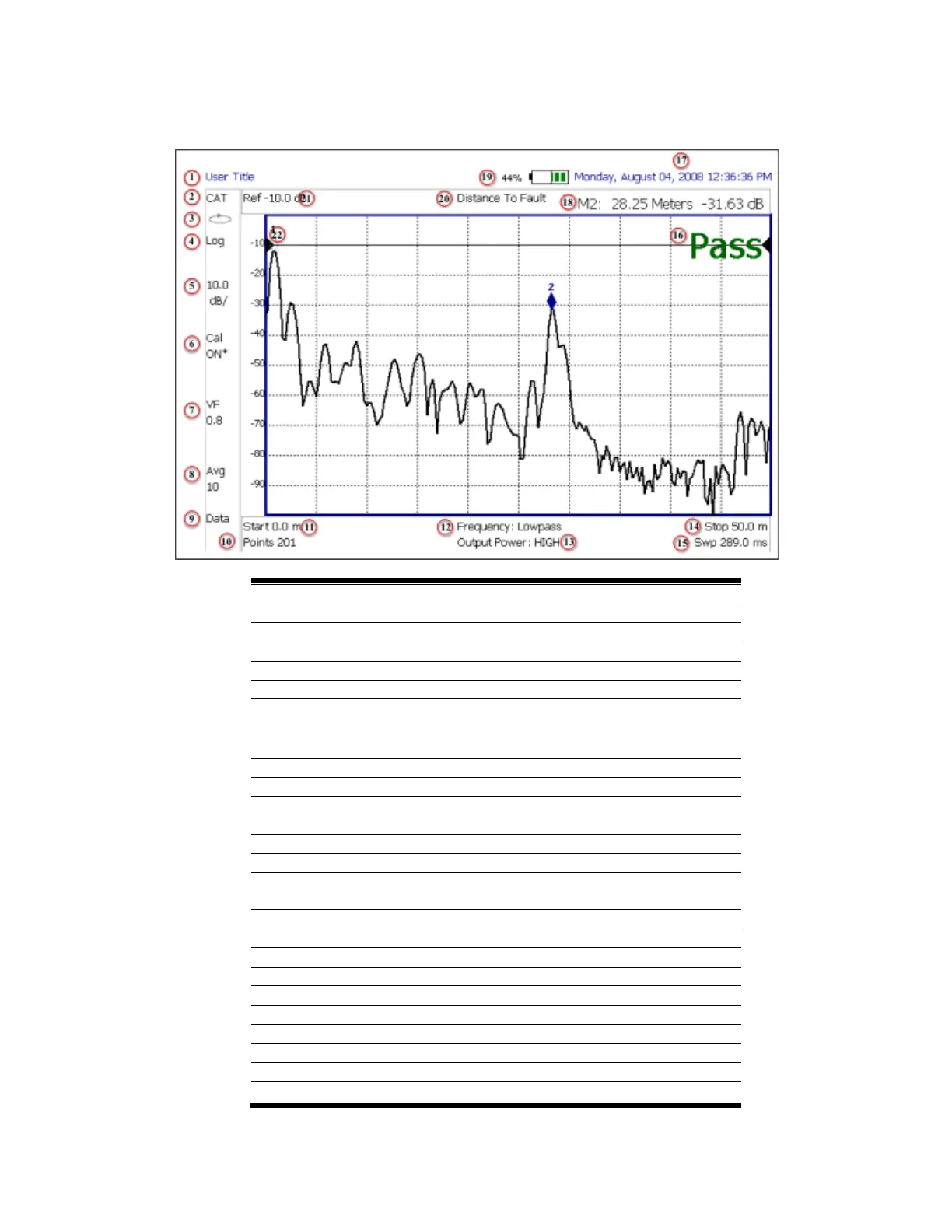

Caption
Description
Learn More on Page:
1
Title – write your own text here
175
2
Current Mode
3
Run / Hold
172
4
Display Format
Mode dependent
5
Scale/division
Mode dependent
6
Calibration Status (CAT and NA)
Detection Method (SA)
62
7
Velocity Factor (Fault Meas)
33
8
Averaging Status and Count
Mode dependent
9
Data / Mem Display (CAT and NA)
Step / FFT (SA)
161- Trace Math
86 - Res BW
10
Resolution Setting
Mode dependent
11
Measurement Start Freq or Distance
Mode dependent
12
Bandpass / Lowpass setting (Fault Meas)
IF BW in NA Mode
33
13
Output Power Level (CAT and NA)
26
14
Measurement Stop Freq or Distance
Mode dependent
15
Actual Sweep Time
Mode dependent
16
Limit Line Status
158
17
Time and Date
179
18
Marker Readout
148
19
Battery Status
188
20
Measurement Type (CAT and NA)
21
Reference Level
Mode dependent
22
Reference Position
Mode dependent
