NA (Network Analyzer) Mode 39
About S-parameters

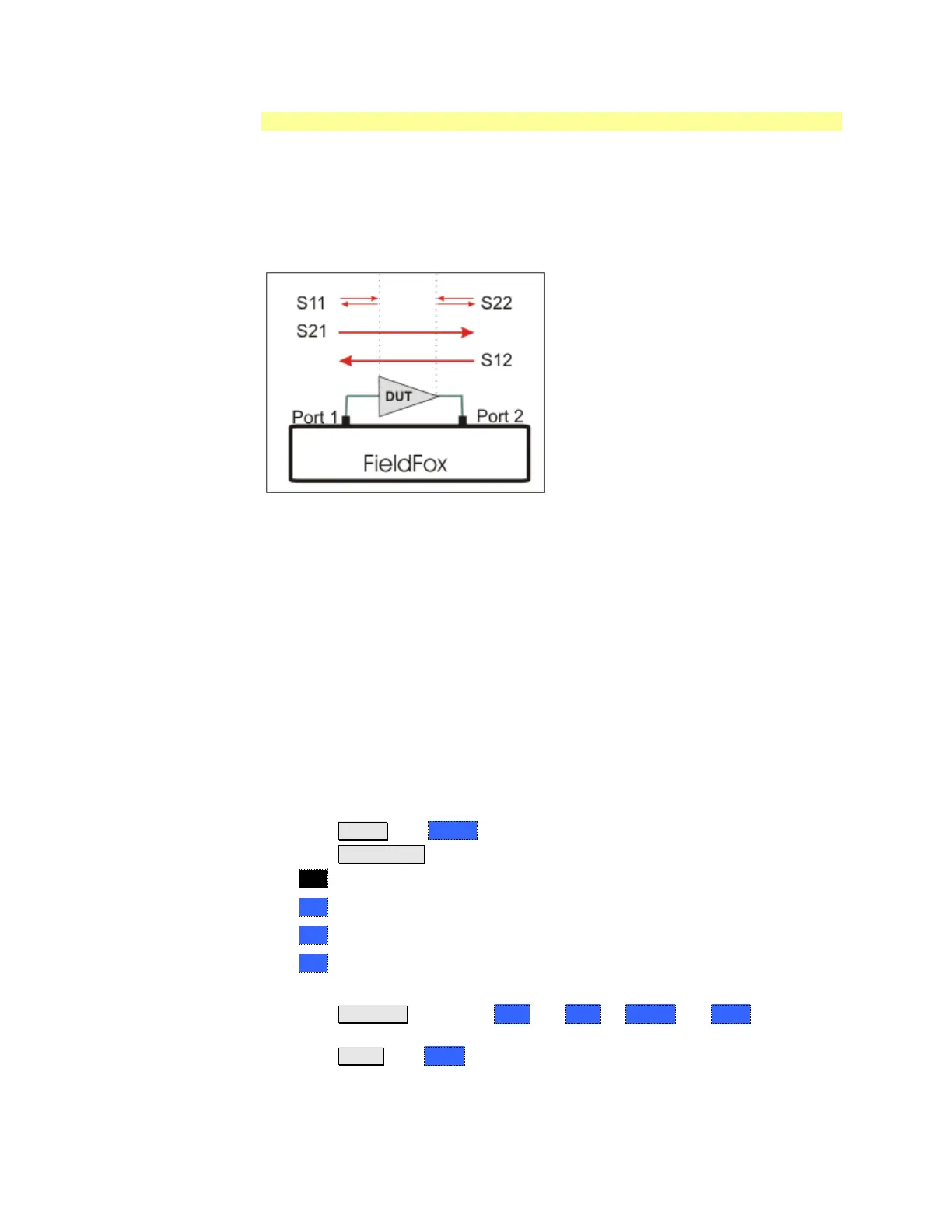

S-parameters (scattering parameters) are used to describe the way a device
modifies a signal. The FieldFox can measure four S-parameters. The syntax for
each parameter is described by the following:
S (out | in)
out = FieldFox receiver port
in = FieldFox source port
The FieldFox automatically switches the internal source and receivers to make
both forward and reverse measurements. Therefore, the FieldFox can measure
all four S-parameters with a single connection.
When the source comes from port 1, the measurement is said to be in the
forward direction.
When the source comes from port 2, the measurement is said to be in the reverse
direction.
S11 and S22 reflection measurements are used to measure the amount of
reflections off the corresponding DUT port. Low reflections means there is a
good impedance match between the source and DUT.
S21 and S12 transmission measurements are used to measure the loss or gain
through a DUT over a specified frequency range. Both ends of the DUT must be
connected to the FieldFox. The FieldFox signal source is transmitted out one of
the test port connectors, through the DUT, and into the other test port connector.
How to measure S-parameters
1. Press Preset then Preset
2. Press Measure 1 then choose from the following:
o S11 Reflection measurement at port 1.
o S21 Forward 2-port transmission measurement.
o S12 Reverse 2-port transmission measurement. May require an option.
o S22 Reflection measurement at port 2. May require an option.
OR select a multi-trace configuration. Learn more on page 40.
3. Press Freq/Dist then either Start and Stop or Center and Span to enter a
Frequency Range for the measurement.
4. Press BW 2 then IFBW to select the IF Bandwidth for the measurement.
Narrower bandwidths require more time to sweep, but lowers trace noise.
