SA (Spectrum Analyzer) Mode 75
SA (Spectrum Analyzer) Mode
SA Mode measures signals at the SA RF IN connector.
SA Mode measurements require NO calibration.
For a comprehensive SA mode tutorial, see Spectrum Analysis Basics (App Note
150) at http://cp.literature.agilent.com/litweb/pdf/5952-0292.pdf

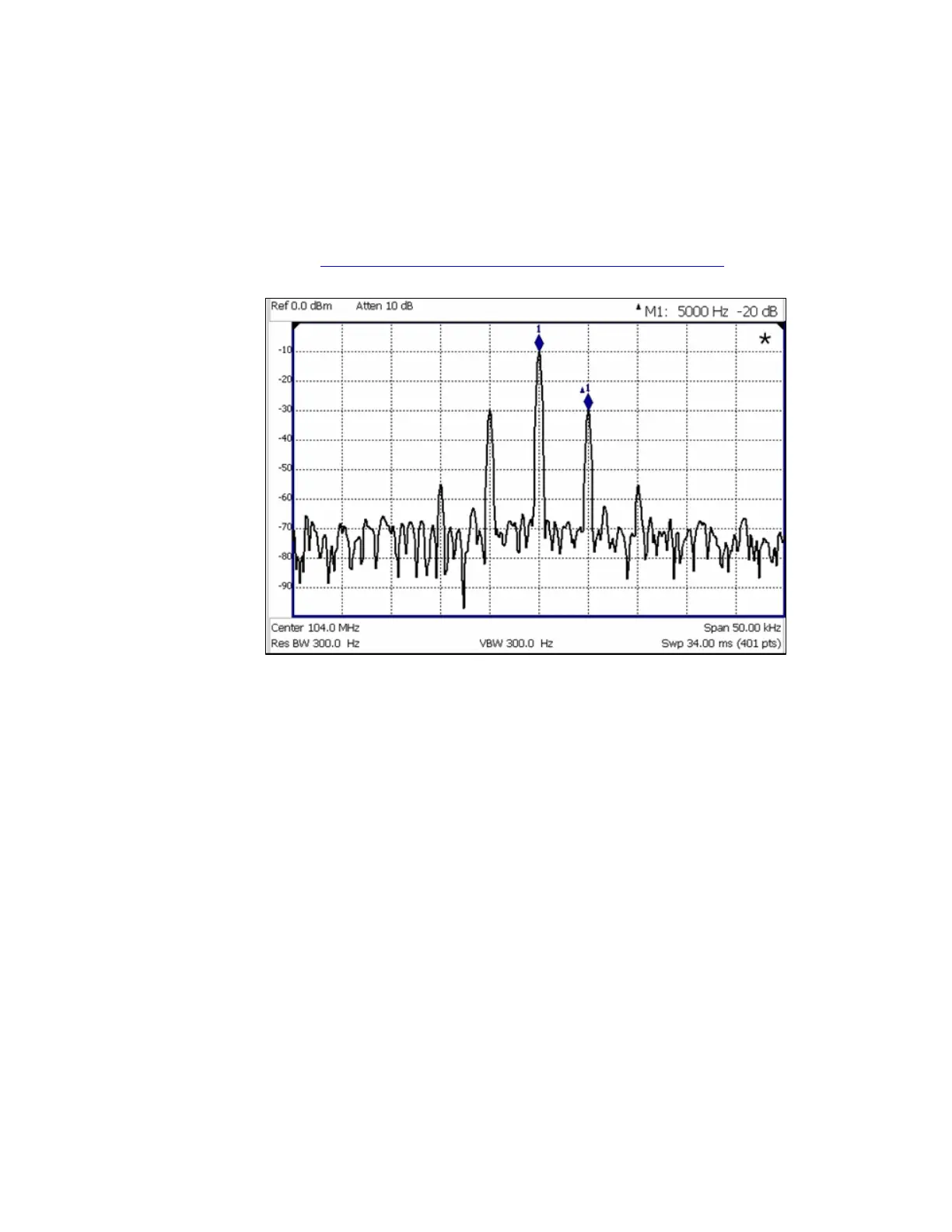

SA display with markers
Carrier with 5 kHz frequency modulation and deviation of 1 kHz
In this Chapter
Frequency Range ................................................... 77
Radio Standard ...................................................... 78
Channel Selection .................................................. 79
Scale and Units ...................................................... 80
External Gain ......................................................... 81
Attenuation and Preamp Control ....................... 81
Check for Compressed Measurements ............... 83
Field Strength Measurements .............................. 83
Tune and Listen ..................................................... 86
Independent Source .............................................. 86
Resolution Bandwidth .......................................... 86
Video Bandwidth ................................................... 90
Sweep Type ............................................................. 91
IF Output ................................................................. 91
Sweep Acquisition ................................................. 92
