180 FieldFox User’s Guide

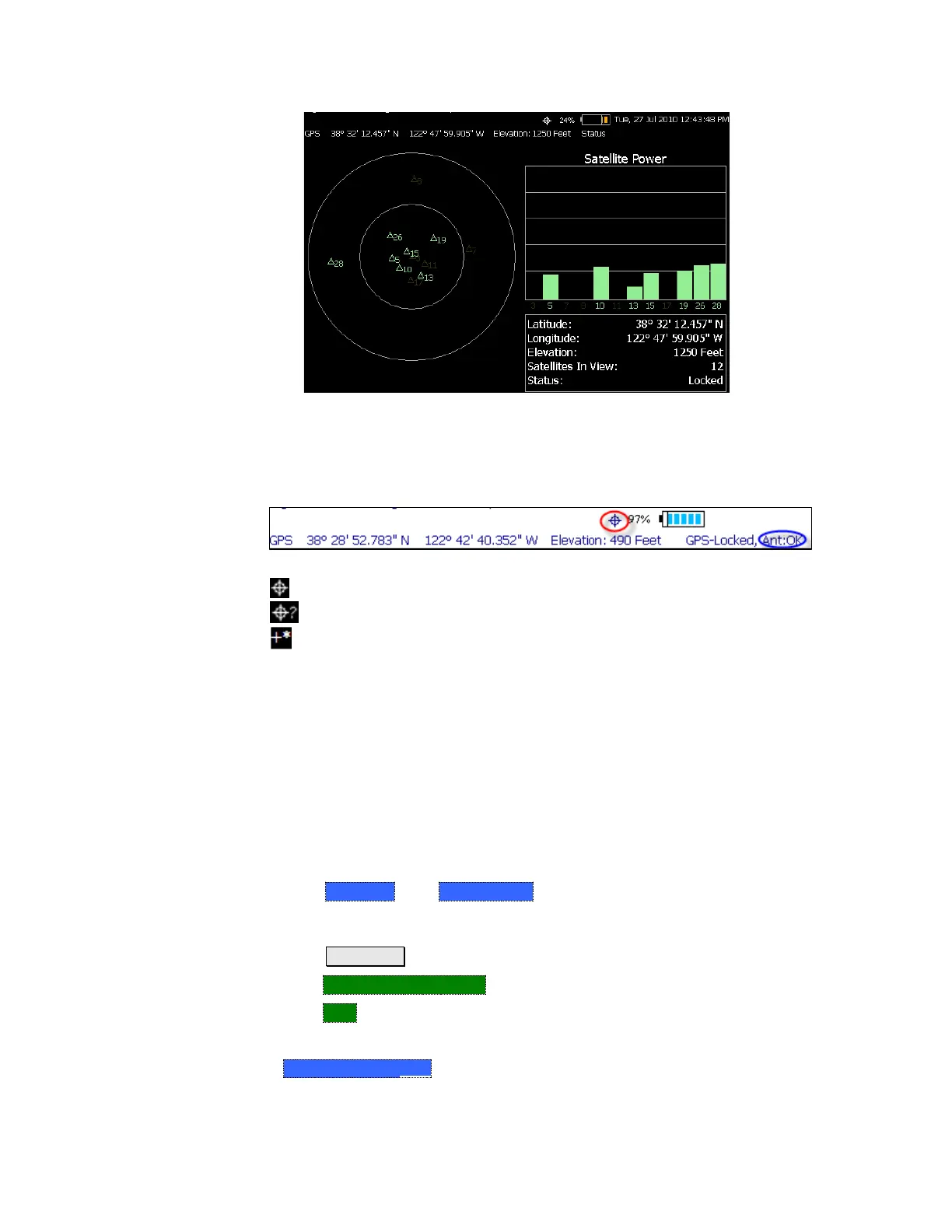

 The left portion of the screen shows satellites and the corresponding number
on the adjacent Satellite Power chart.
GPS Status
With GPS enabled the following is displayed at the top of the FieldFox screen:
The following icons (located in RED circle above) indicate the GPS lock status:
- GPS ON and locked on satellites.
- GPS ON, but NOT locked on satellites.
- GPS ON, but no GPS receiver is present or detected.
The following annotation (BLUE circle in above image) indicates the INTERNAL,
top-panel antenna status:
 Ant: INIT – antenna status initializing.
 Ant: OK – antenna present and working.
 Ant: OPEN – antenna is not drawing DC bias current. This could occur when
an active antenna is not connected properly or the antenna does not require
DC bias current. Antennas that do not require bias current can still provide an
accurate GPS reading.
 Ant: SHORT – antenna center pin has been shorted to ground. The internal
bias circuitry is disabled for about one minute, then re-enabled. You can also
press GPS OFF, then GPS Internal.to quickly re-enable the antenna bias.
More GPS settings
 Press System 7
 Then System Configuration
 Then GPS
 Then choose from the following:
 Sync Clock ON OFF Enable and disable the synchronization of the FieldFox
internal clock to the GPS UTC time standard.
