Agilent Technologies FieldFox N9913A User Manual

NA (Network Analyzer) Mode 41

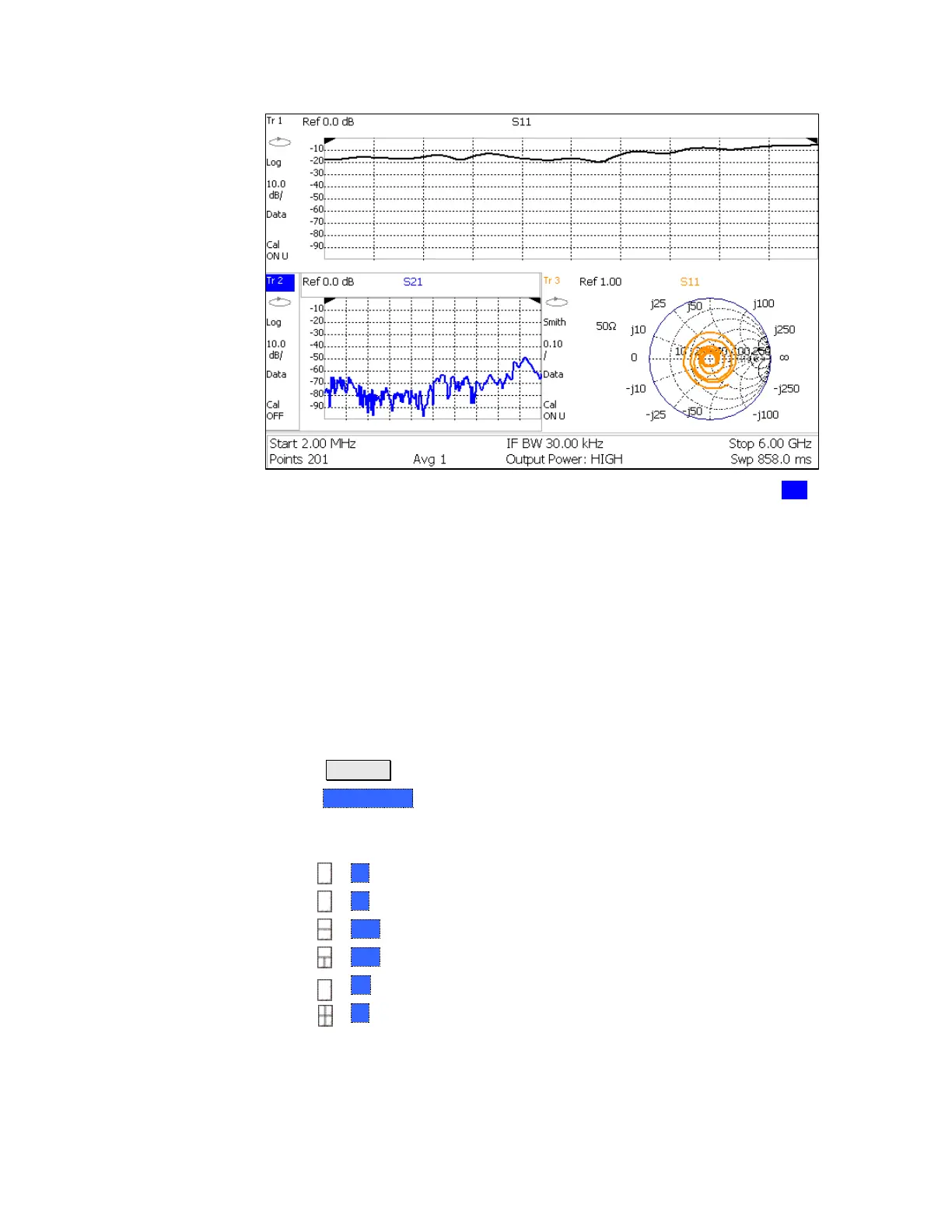

An x3H configuration. Tr2 is the ACTIVE trace as indicated by the highlighted Tr 2
Trace Setting Notes
 The Frequency Range, IF BW, Resolution, Average, and Output Power settings
are common for all displayed traces.
 All other trace settings, such as measurement, format, and limit lines, are
applied individually to the ACTIVE trace in the same manner as when a single
trace is present.
 By default, a marker is created on ALL traces as shown in the above image.
However, they can be created individually by disabling Coupled Markers.
Learn more on page 151.
How to select a multi-trace configuration
 Press Trace 6
 Then Num Traces
 Then choose from the following:
The default measurements depend on the options that are installed.
x1 1 trace standard configuration
x2 2 traces overlayed on a single graticule
x2H 2 traces on separate horizontal graticules
x3H 3 traces on separate horizontal graticules
X3 3 traces overlayed on a single graticule
x4 4 traces on separate graticules
