Akuvox R29 Series Administrator's Guide

R29X Door Phone Administrator Guide
AKUVOX SMART INTERCOM www.akuvox.com
135
16. Debug

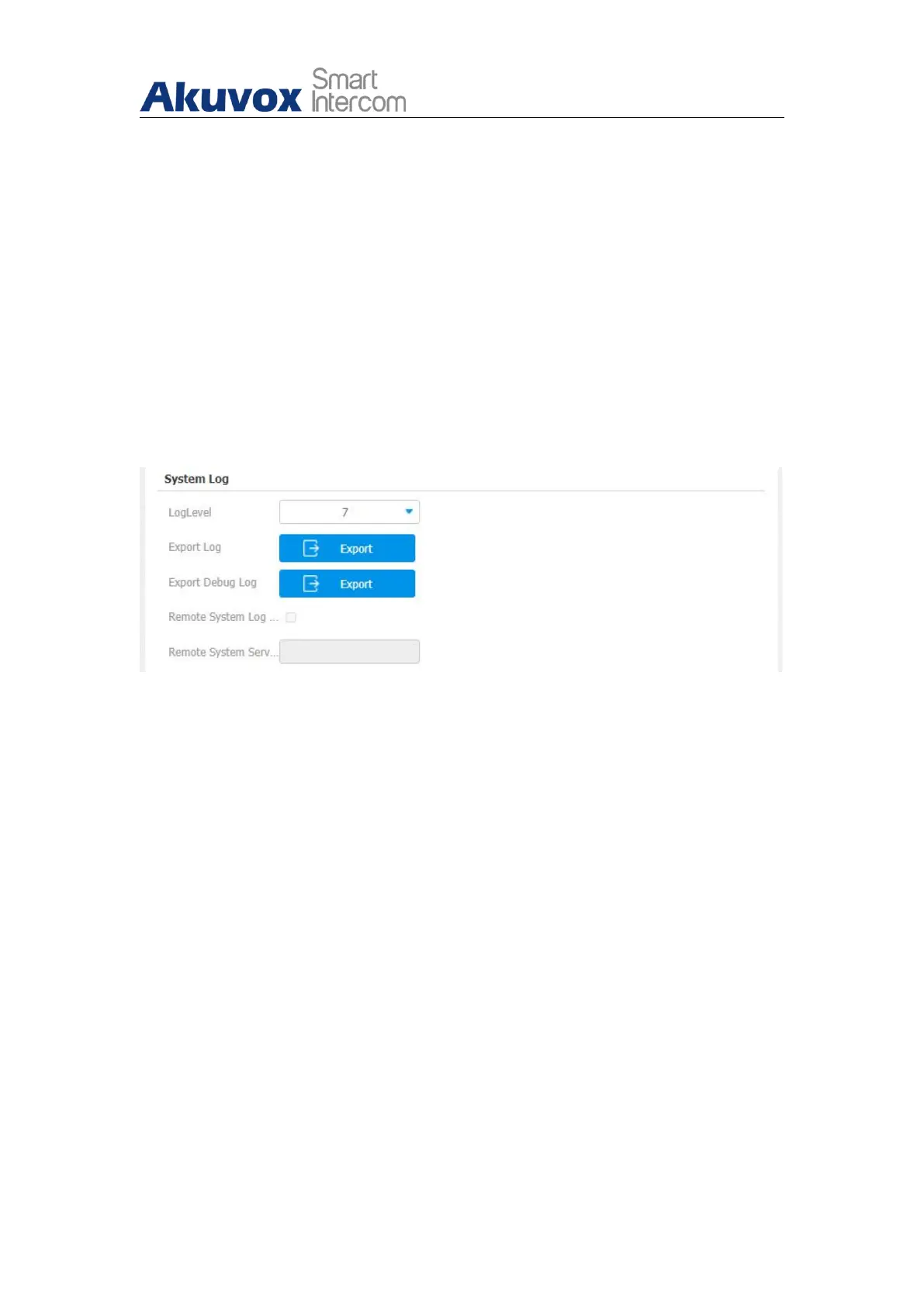

16.1.System Log for Debugging
System log in the door phone can be used for debugging purpose. If you
want to export the system out to a local PC or to a remote server for
debugging, you can set up the function on the web Upgrade > Advanced >
System Log interface.
Parameter Set-up:
 LogLevel: select log levels from 1 to 7 levels. You will be instructed by
Akuvox technical staff about the specific log level to be entered for
debugging purpose. The default log level is “3”. the higher the level is,
the more complete the log is.
 Export Log: click the Export tab to export the temporary debug log file to
a local PC.
 Export Debug Log: click the Export tab to export debug log file to a local
PC.
 Remote System Log: select “Enable” or “Disable” if you want to enable or
disable the remote system log.
 Remote System Server: enter the remote server address to receive the
device log. And the remote server address will be provided by Akuvox

Akuvox R29 Series Specifications

General

Power	PoE or 12V DC
Operating System	Android
RS485	Yes
Wiegand	Yes
Installation	Wall-mounted
Tamper-proof	Yes
Processor	Quad-Core
RAM	2GB
Display	7-Inch LCD
Camera	2MP
Network	Ethernet
Integration	SIP, ONVIF
Light compensation	Yes
Ethernet	10/100M
PoE	802.3af
Operating Humidity	10% to 90% (non-condensing)
Storage	8GB
Protocols	SIP, ONVIF, RTSP
