R29X Door Phone Administrator Guide
AKUVOX SMART INTERCOM www.akuvox.com
21. Device Integration with Third Party
Device
21.1. Integration via Wiegand
The door phone Wiegand interface is used to connect the door phone to the
third party devices for data transmission via Wiegand protocol. If you want to
integrate the R29 series door phone with third party devices via Wiegand, you
can configure the Wiegand on the web interface. Path: Intercom > Wiegand >
Wiegand.

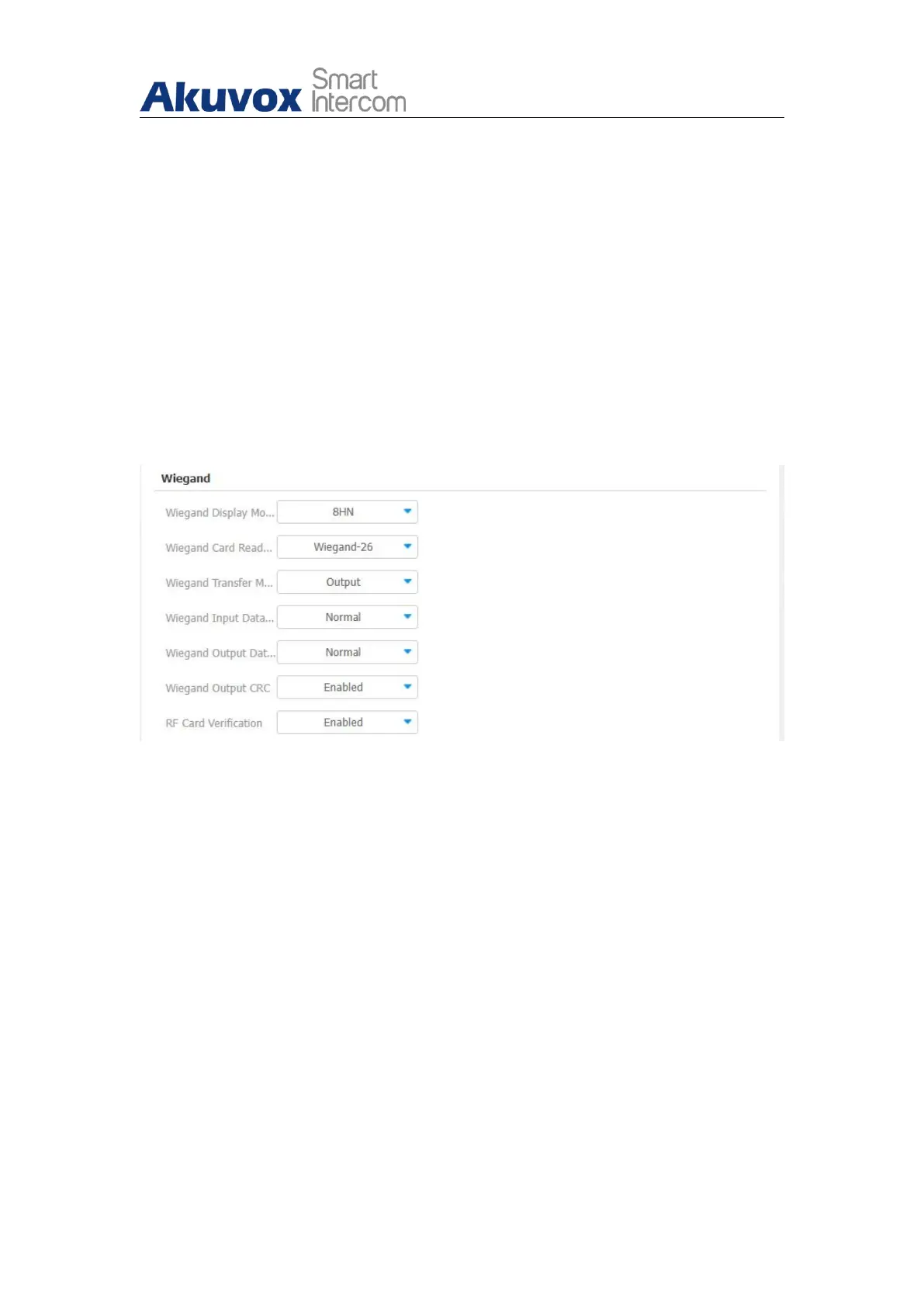

Parameter set-up:
Wiegand Display Mode: select Wiegand Card code format among 8H10D;
6H3D5D; 6H8D; 8HN; 8HR; RAW.
Wiegand Card Reader Mode: set the wiegand data transmission format
among three options: “Wiegand 26”, “Wiegand 34”, “Wiegand 58”. The
transmission format should be identical between the door phone and the
device to be integrated.
Wiegand Transfer Mode: select Input, Output, Convert to Card
No.OutputWiegand. if the door phone is used as a receiver, then set it as
“Input” for the door phone. Select “Output” if you want Wiegand output to
be converted to card number before sending it from the door phone to a
receiver. For facial recognition access, the user card number
corresponding to the facial recognition access will be sent out in a binary
system.
