Akuvox R29 Series Administrator's Guide

R29X Door Phone Administrator Guide
AKUVOX SMART INTERCOM www.akuvox.com
68

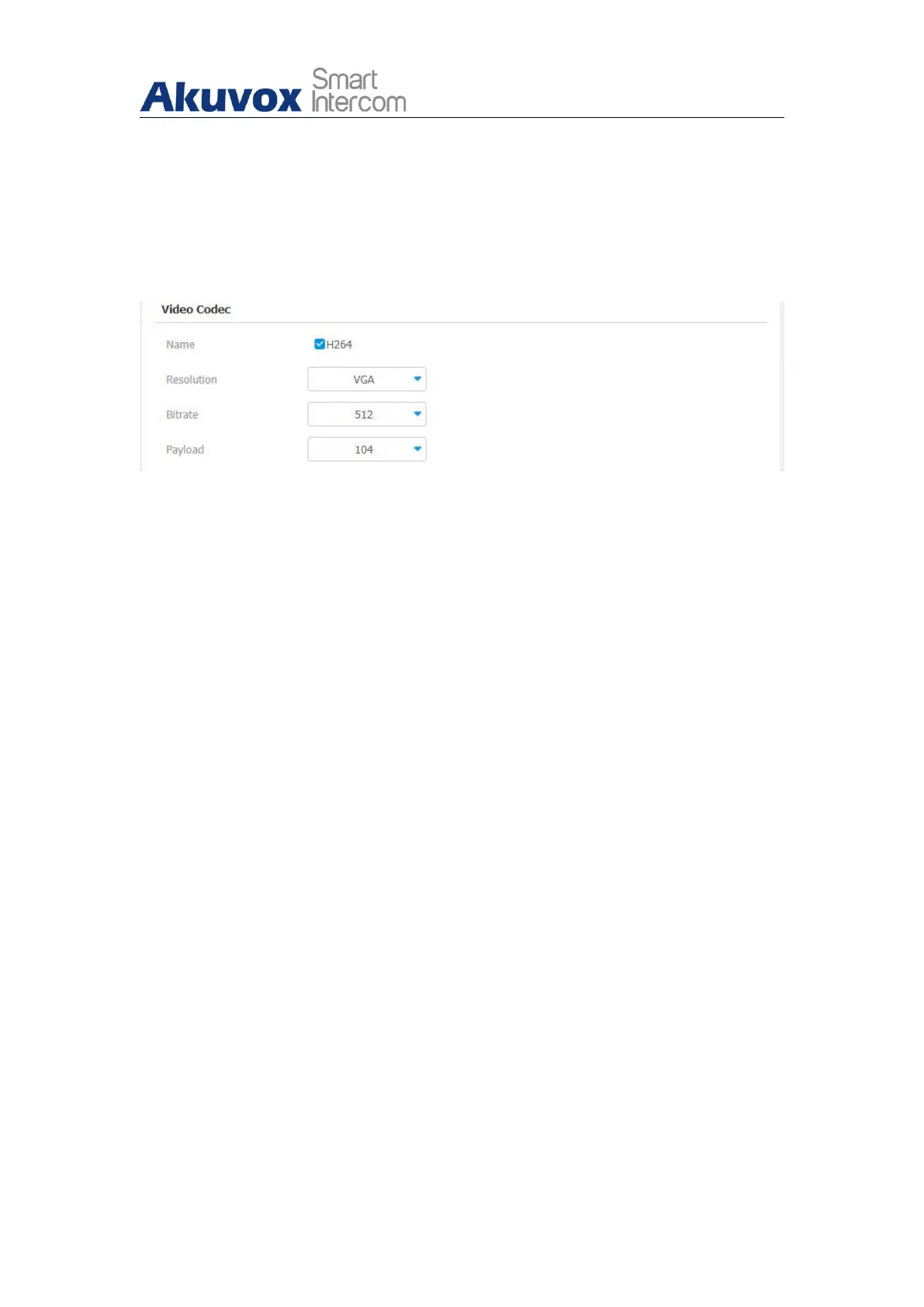

10.2.Video Codec Configuration
R29 series support H264 codec that provides a better video quality at a much
lower bit rate with different video quality and payload. To do the
configuration on device web Account > Advanced > Video Codec interface.
Parameter Set-up:
 Name: Check to select the H264 video codec format for the door phone
video stream. H264 is the video codec by default.
 Resolution: select the code resolution for the video quality among four
options: ”QCIF”, “CIF”, “VGA”, “4CIF” and “720P” according to your
actual network environment. The default code resolution is 4CIF.
 Bitrate: select the video stream bit rate (Ranging from 320-2048). The
greater the bitrate, the data transmitted in every second is greater in
amount therefore the video will be clearer. While the default code bitrate
is 2048.
 Payload: select the payload type (ranging from 90-118) to configure the
audio/video configuration file. The default payload is 104.

Akuvox R29 Series Specifications

General

Power	PoE or 12V DC
Operating System	Android
RS485	Yes
Wiegand	Yes
Installation	Wall-mounted
Tamper-proof	Yes
Processor	Quad-Core
RAM	2GB
Display	7-Inch LCD
Camera	2MP
Network	Ethernet
Integration	SIP, ONVIF
Light compensation	Yes
Ethernet	10/100M
PoE	802.3af
Operating Humidity	10% to 90% (non-condensing)
Storage	8GB
Protocols	SIP, ONVIF, RTSP
