Publication 1756-UM050A-EN-P - December 2001
1756-ENBT Module Diagnostics B-5
Class 1 (CIP) Transports
The Class 1 (CIP) Transports screen offers specific information about
Class 1 (CIP) connections coming into and going out of the
1756-ENBT module. Table 2.C lists the most useful fields on the Class
1 (CIP) Transports screen:

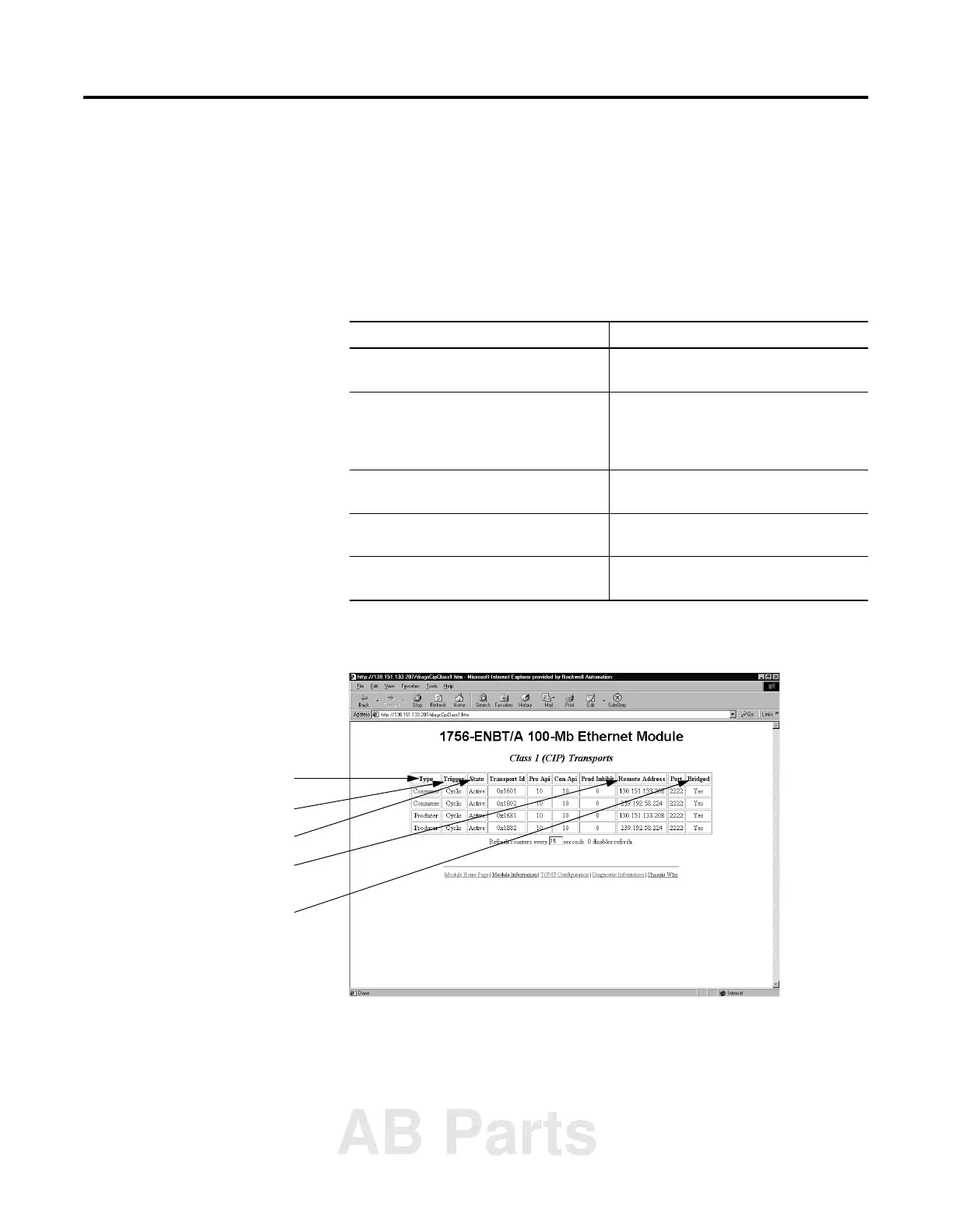

An example of the Class 1 (CIP) Transports screen is shown below.
Table 2.C
Most Useful Diagnostic Fields on the Class 1 (CIP) Connections Screen
Field: Definition:
Type Type of connection. This field can be either
consumer or producer.
Trigger The mechanism by which the producer
produces new data. The mechanism can
be Cyclic, Change-of-State, or Application
triggered
State The state of the connection, either active or
inactive.
Remote Address The remote IP address of the connection’s
originator or destination.
Bridged Denotes whether the connection is bridged
across the 1756-ENBT module or not.
Type
Trigger
Remote
Address
Bridged
State
