Transport, siting and installation
66
Transport, siting and installation
0000010038-003- GB

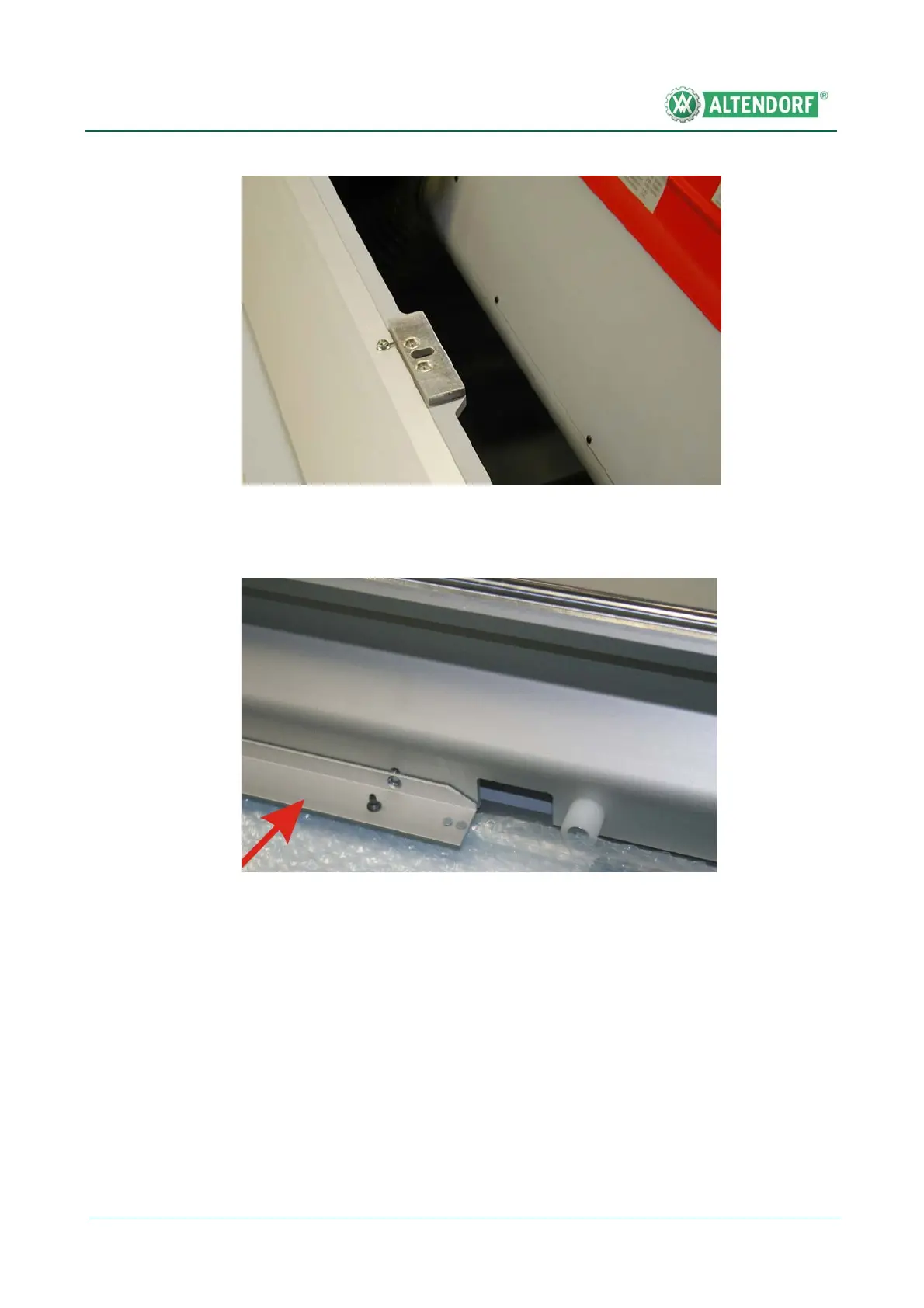

Fig. 5-29 Central fixing
[1] Tighten the central fixing screw.
[2] Check that the sub-rollers are correctly adjusted.
Fig. 5-30 Bracket on the bottom carriage
[1] Fix the bracket to the bottom carriage with 3 screws.
