Operating
93
0000010038-003- GB
Operating
Work cycle: Set the aluminium straight edge of the rip fence to the low guide
surface. Lay the workpiece on the sliding table and press against the rip fence
with your left hand. Push the workpiece forward with the sliding table; use the
push stick in the vicinity of the saw blade to push the strip beyond the riving kni-
fe.
Crosscutting wide workpieces
Tool: Circular saw blade for crosscuts
Work cycle: Lay the workpiece against the crosscut fence; when pushing for-
ward, push firmly against the fence with your left hand. When using the throw-
over stop, raise the stop and remove the workpiece from the saw blade before
pulling back after the cut, or remove the workpiece behind the rising gear rim.

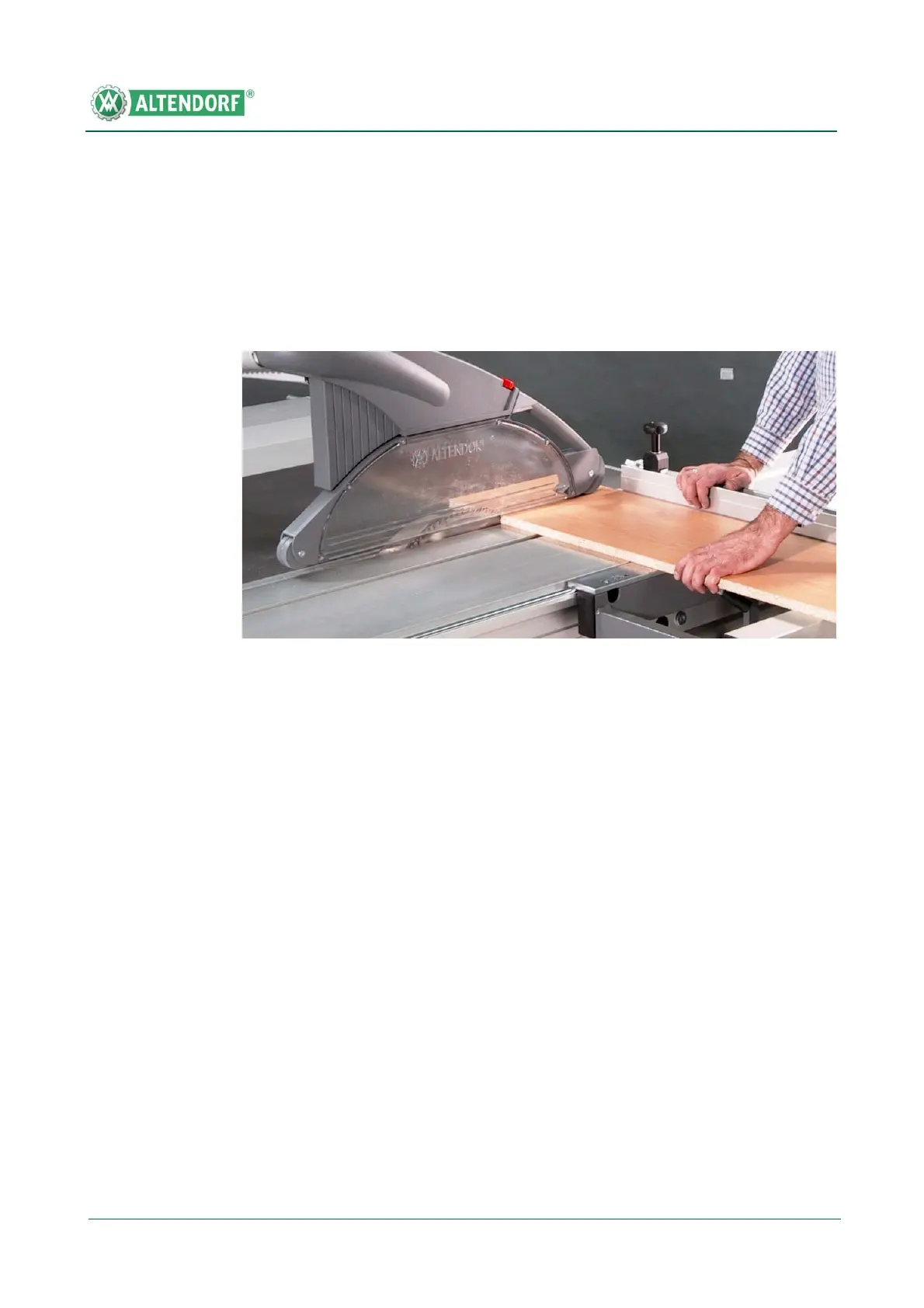

Fig. 6-14 Crosscutting
