MM-400A
8. Operation Screens
8-66
measurement. To pass multiple current pulses, refer to PULSE MODE in the
BASIC SETUP (2) screen.
• FORCE (EXT)
*1
The instrument measures force each time a force trigger of the external input
signal is input. The internal processing time varies depending on the current
flow and force measurement time. As a result, the internal processing may
not be complete before next measurement. To pass multiple current pulses,
refer to PULSE MODE in the BASIC SETUP (2) screen.
• EXTERNAL (EXT)
*1
The instrument measures external input voltage (±10 V) or external input
current (4 to 20 mA) each time an external trigger of the external input signal
is input. The internal processing time varies depending on the current flow
and external input measurement time. As a result, the internal processing
may not be complete before next measurement. To pass multiple current
pulses, refer to PULSE MODE in the BASIC SETUP (2) screen.
*1: Refer to (2) INPUT 7 to 8 in “o-1. EXT INPUT/OUTPUT (1) Screen.”

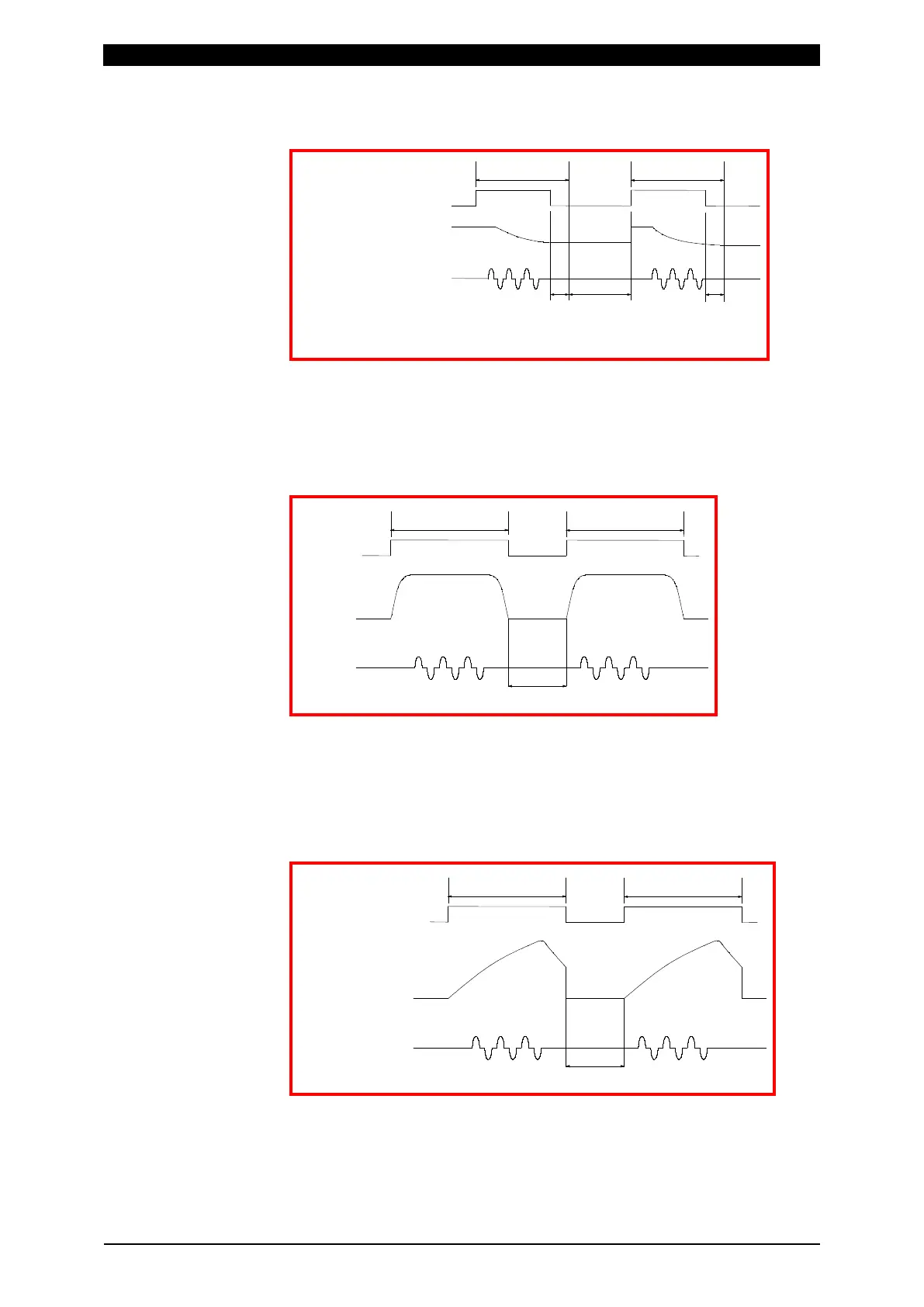

Measurement
Measurement
DisplacementInternal
processing delay
time time
Displacement
delay
time
Displacement trigger
Displacement
Current
Internal processing time
F
o
rc
e
tri
gge
r
F
o
rc
e
Curr
ent
Mea
surement Measu
r
em
e
nt
Internal processing time
External input
or
External
trigger
Current
±10V voltage
4 to 20mA current
Measurement Measurement
