When the TRIGGER and TIME settings are changed, START TIME and END
TIME may be initialized. Set START TIME and END TIME again.
• When TIME is CYC-AC: 000.0 to 300.0 CYC (in units of 0.5 CYC)
• When TIME is ms-DC: 0000 to 2000 ms (in unit of 1 ms)
• When TIME is CYC***Hz-AC: 0000.0 to 2,000.0 CYC (in units of 0.5 CYC)
• When TIME is CYC-DC: 000.0 to 120.0 CYC (in units of 0.5 CYC)
• When TIME is SHORT ms-DC: 000.00 to 300.00 ms (in units of 0.01 ms)
• When TIME is ms-AC: 0000 to 5000 ms (in unit of 1 ms)
• When TIME is LONG CYC-AC: 0.0 to 600.0 CYC (in units of 0.5 CYC)
(9) Function keys
MENU: Touching this displays the MENU screen.
NEXT: Touching this displays the BASIC SETUP (2) screen.
COPY: Touching this copies the settings made under the schedule number
001 (all the settings made in the COMPARATOR, ENVELOPE, BASIC SETUP,
and EXTEND SETUP screens) to all the schedule numbers 002 to 127.

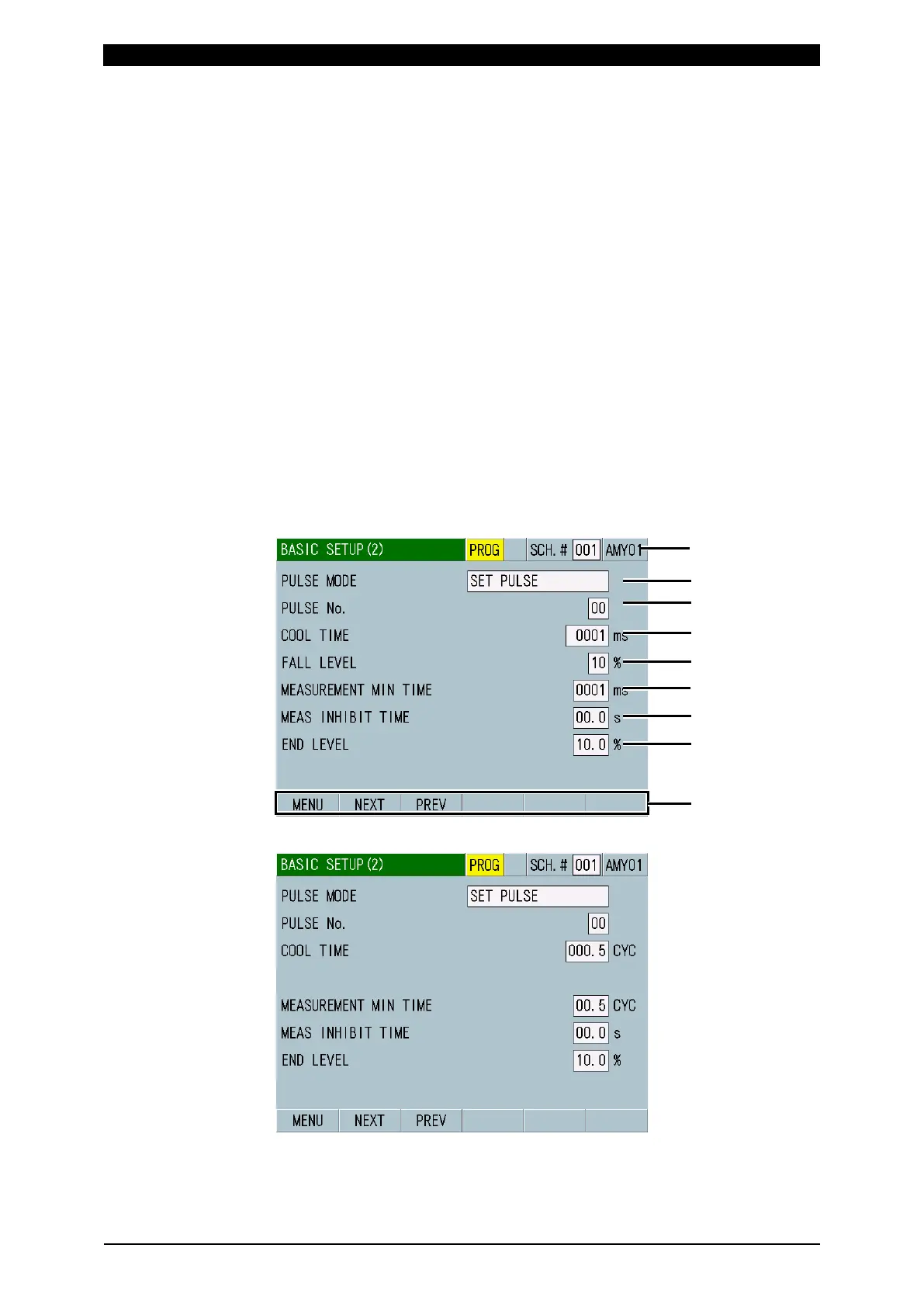

l-2. BASIC SETUP (2) Screen
When TIME is DC
When TIME is AC
To Next Page
