MM-400A
8. Operation Screens
8-87

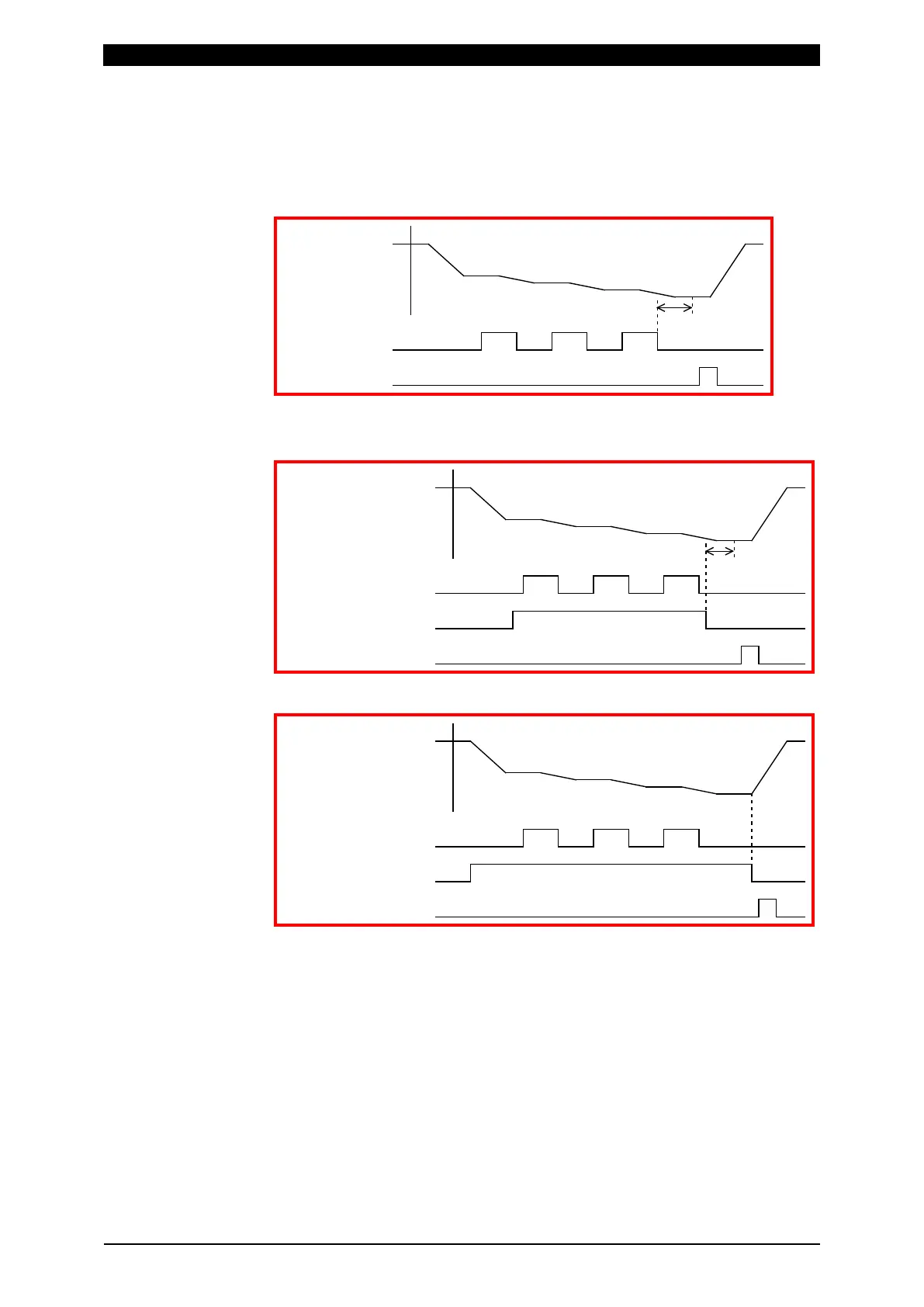

(3) FINAL MEASUREMENT
Select DELAY TIME or EXTERNAL INPUT.
• When DELAY TIME is selected for FINAL MEASUREMENT, and an option
other than REAL TIME and DISPLACEMENT (EXT) is selected for
TRIGGER
• When DELAY TIME is selected for FINAL MEASUREMENT, and
DISPLACEMENT (EXT) is selected for TRIGGER
• When EXTERNAL INPUT is selected for FINAL MEASUREMENT
A: Measurement of “DIST FINAL” B: Final delay time
For the trigger, refer to Chapter 8, “l-1. BASIC SETUP (1) Screen.”
WE1 CO1 WE2 CO2 WE3
A
B
Displacement
Welding current
Judgment output
Head UP
WE1 CO1 WE2 CO2 WE3
A
B
Displacement
Welding current
External input signal
Judgment output
"DIST TRIGGER"
Head UP
WE1 CO1 WE2 CO2 WE3
NO CURR
A
Displacement
Welding current
External input signal
Judgment output
Head UP
