(5) START TIME / END TIME
By specifying an arbitrary range, you can measure mean external input (±10 V
voltage or 4 to 20 mA current input). Set START TIME and END TIME in the
range from 0 to 10,000 ms. There are three input fields for each item because
you can specify three ranges for a single measurement and measure the
external input at three locations.
(6) Function keys
MENU: Touching this displays the MENU screen.
NEXT: Touching this displays the EXTEND SETUP (7): EXTERNAL (2/2)
screen.
PREV: Touching this displays the EXTEND SETUP (5): FORCE (2/2) screen.
DIST: Touching this displays the EXTEND SETUP (1): DISPLACEMENT (1/3)
screen.
FORCE: Touching this displays the EXTEND SETUP (4): FORCE (1/2)
screen.
EXTERNAL: Touching this displays the EXTEND SETUP (7): EXTERNAL
(2/2) screen.

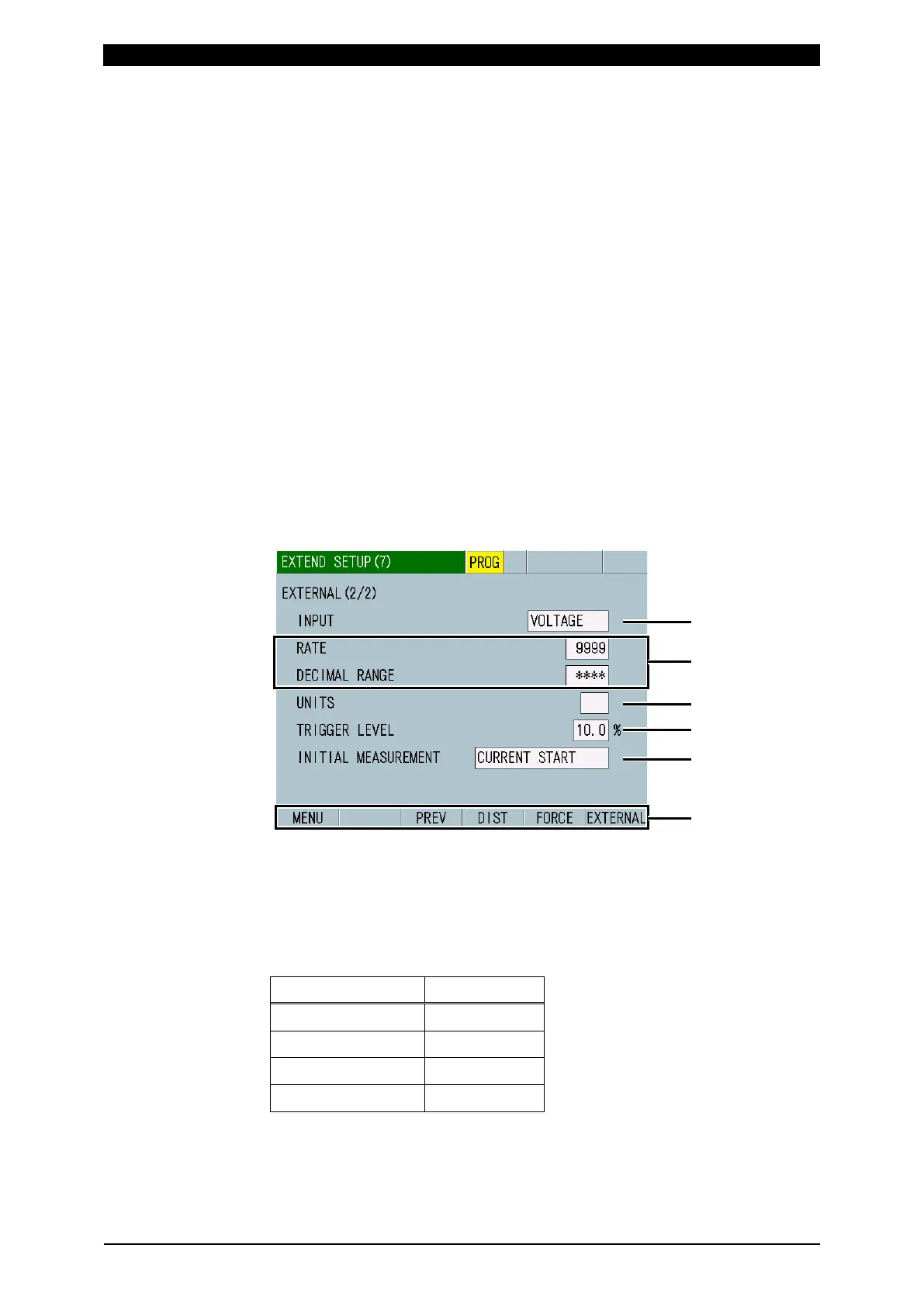

m-7. EXTEND SETUP (7) Screen: EXTERNAL (2/2)
(1) INPUT
Select voltage input (±10 V) or current input (4 to 20 mA).
(2) RATE / DECIMAL RANGE
You can change the setting range of RATE arbitrarily according to the
DECIMAL RANGE setting.
DECIMAL RANGE RATE
*.*** 0.500 to 9.999
**.** 05.00 to 99.99
***.* 050.0 to 999.9
**** 0500 to 9999
To Next Page
