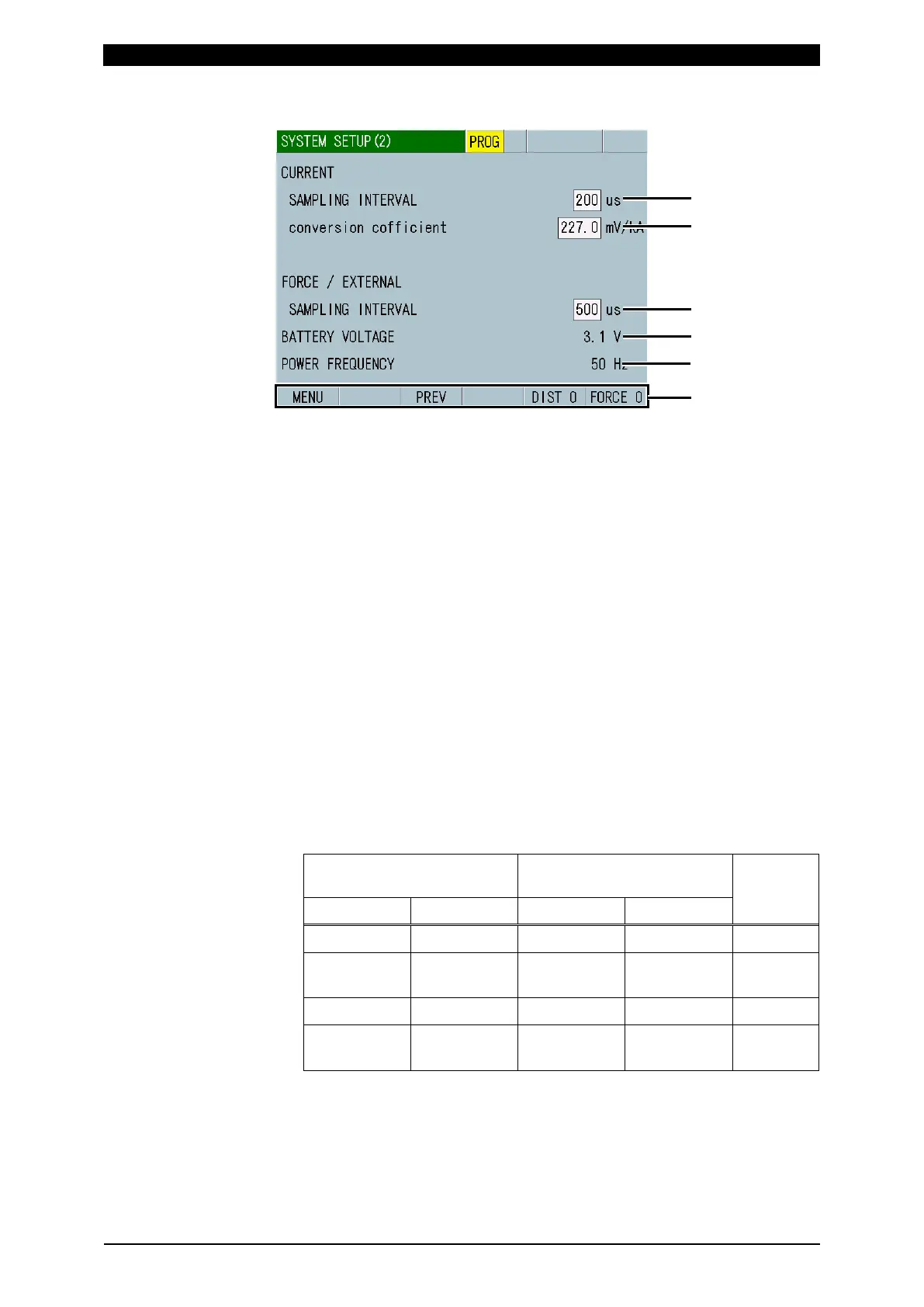

n-2. SYSTEM SETUP (2) Screen
(1) CURRENT SAMPLING INTERVAL
Set the sampling interval of current, voltage, displacement, power, and
resistance.
20us: Performs measurement (sampling) every 20 us, calculates and
displays waveforms every 20 us, and outputs data
*1
every 20 us.
(Notes 1 and 2)
50us: Performs measurement (sampling) every 50 us, calculates and
displays waveforms every 50 us, and outputs data
*1
every 50 us. (Note
1)
100us: Performs measurement (sampling) every 100 us, calculates and
displays waveforms every 100 us, and outputs data
*1
every 100 us.
200us: Performs measurement (sampling) every 100 us, calculates every 100
us, displays waveforms every 200 us, and outputs data
*1
every 100
us
*2
.
*1: Waveform output by communication and USB
*2: In a combination of force and external, data is output every 100 us. In a
combination of current, voltage, displacement, power, and resistance,
data is output every 200 us. When data is output every 100 us, measured
values change every 0.2 ms.
100 us interval
(calculation)
200 us interval
(data output)
Remarks
Time [ms] Current [kA] Time [ms] Current [kA]
0.0 0.00 0.0 0.00
0.1 0.50 0.1 0.00
Same as
0.0 ms
0.2 0.60 0.2 0.60
0.3 0.70 0.3 0.60
Same as
0.2 ms
(Note 1) When 20 μs is selected for SAMPLING INTERVAL and the TIME
setting in the BASIC SETUP (1) screen is a setting other than SHORT ms-DC,
the sampling interval becomes 50 μs automatically. Also, when displacement
is measured, the sampling interval becomes 50 μs automatically.
