8. Operation Screens
8-115

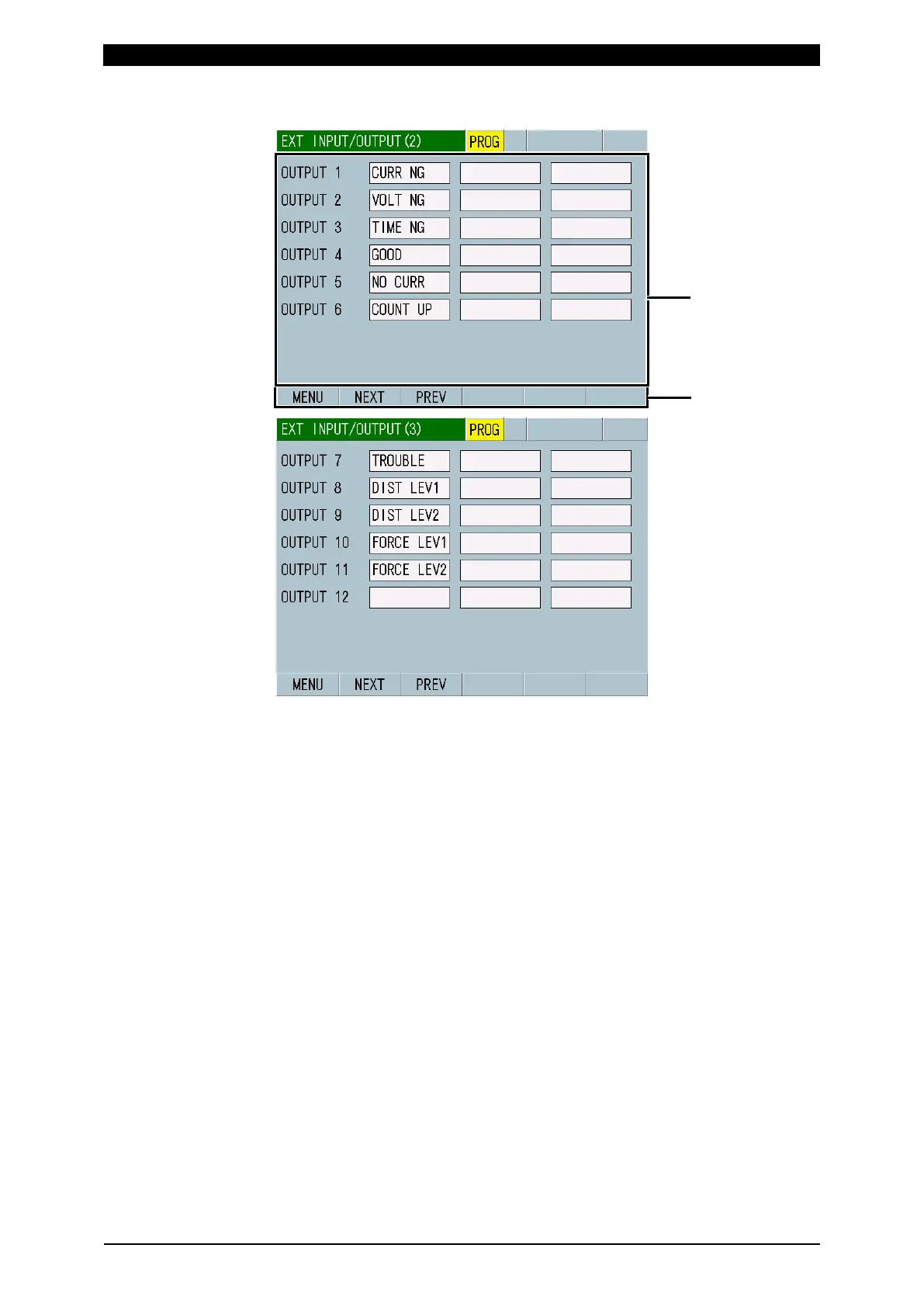

o-2. EXT INPUT/OUTPUT (2) (3) Screen
(1) OUTPUT 1 to 12
Set up to three items for each of outputs 1 to 12 from the following:
(Ex.) To make current OK/NG judgment against upper and lower limits, set
the outputs as follows:
Output 1: CURR-L and CURR-U
Output 2: TIME-L and TIME-U
Output 3: GOOD
Output 4: NG
Output 5: TROUBLE
This provides you with an output from Output 3 when current flows properly, an
output from Output 1 if the measured current falls outside the upper and lower
limits, an output from Output 2 if the measured current flow time falls outside
the upper and lower limits, an output from Output 4 in the event of an error
such as overrange error, and an output from Output 5 in the event of an error
in the MM-400A.
