MM-400A

8. Operation Screens

8-129

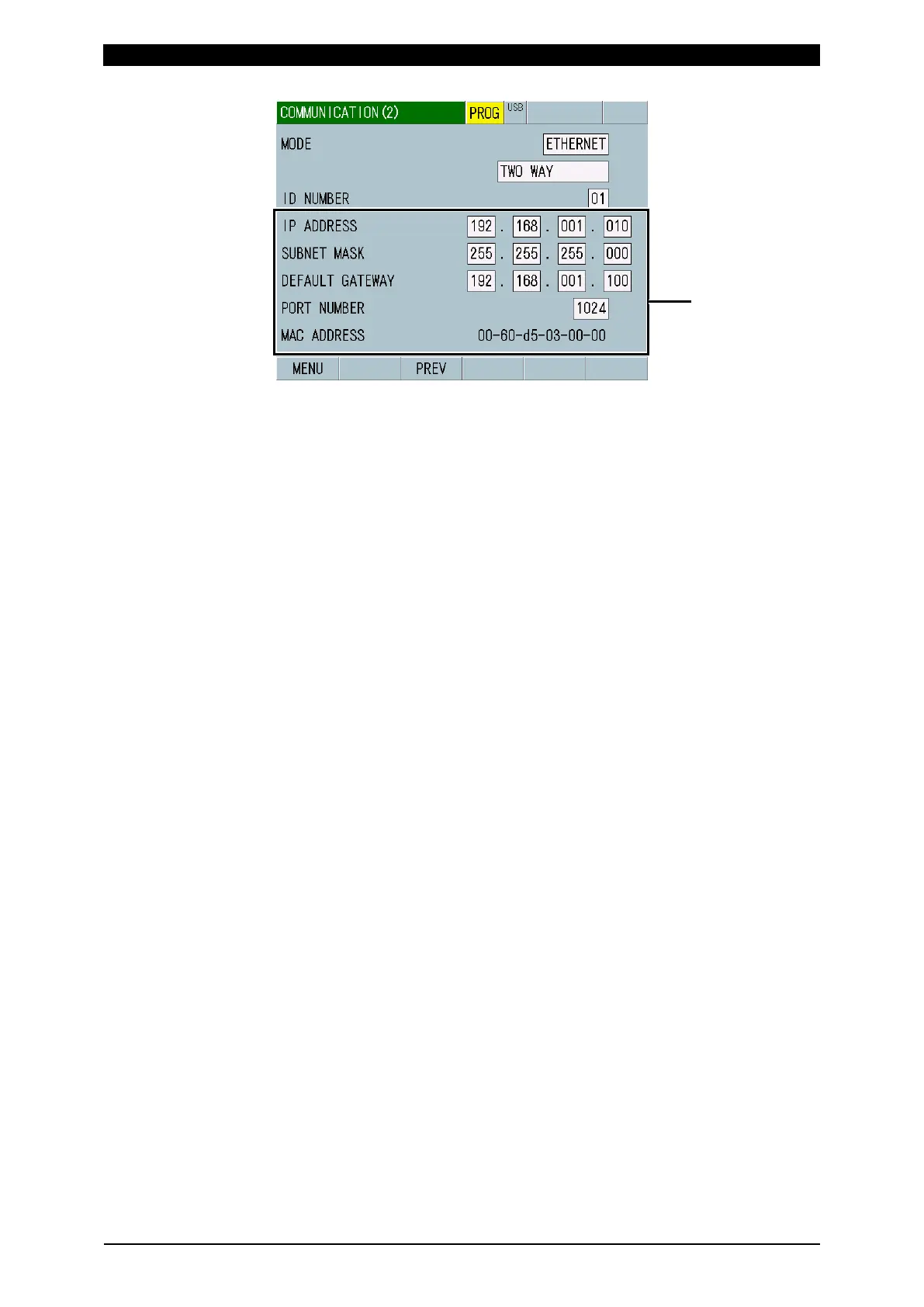

(5) Function keys

MENU: Touching this displays the MENU screen.

PREV: Touching this displays the COMMUNICATION (1) screen.
