8. Operation Screens
8-138
(Note) Use with measurement interval ≥ measurement range. In the
intermittent current flow, set so that one cycle of WELD/COOL be the
measurement interval and WELD time be the measurement range.
(6) START TIME / END TIME
Set the judgment start time and end time of the judgment periods1 to 3 in time
or cycle from the welding start. In this judgment period, GOOD or NG judgment
is made after each measurement range and output at the end of welding.
When all judgments are within upper and lower limits, the judgment period is
judged as GOOD.
When the TRIGGER and TIME settings are changed, START TIME and END
TIME may be initialized. Set START TIME and END TIME again. (Refer to "s-3.
SEAM SETUP (3) Screen.")
CYC-AC, CYC-DC: 0 to 18,000 CYC
ms-DC, ms-AC: 0 to 300,000 ms (in units of 10 ms)
SHORT ms-DC: 0 to 30,000 ms
(7) Function keys
MENU: Touching this displays the MENU screen.
NEXT: Touching this displays the SEAM SETUP (2) screen.
COPY: Touching this copies the settings made under the schedule number
001 (all the settings made in the COMPARATOR, ENVELOPE, BASIC SETUP,
and EXTEND SETUP screens) to all the schedule numbers 002 to 127.

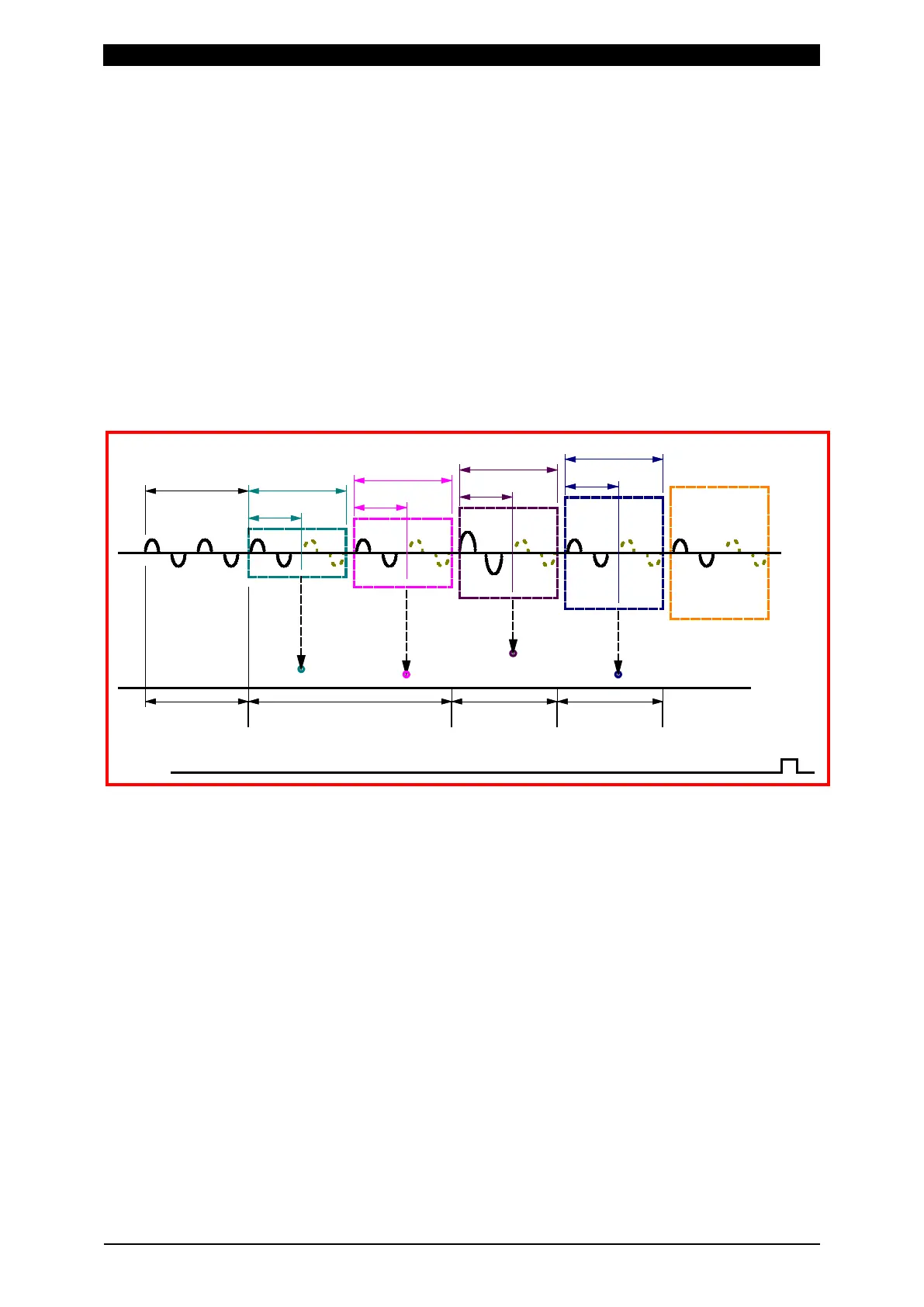

GOOD or NG Output
Judgment Judgment
Judgment
Judgment
Before judgment start
Measurement start
Measurement interval
Measurement interval
Measurement interval
Measurement interval
Measurement range
Measurement range
Measurement range
Measurement range
Non-judged
Start
time 1
Start
time 2
Start
time 3
End
time 1
End
time 2
End
time 3
