MM-400A
8. Operation Screens
8-139

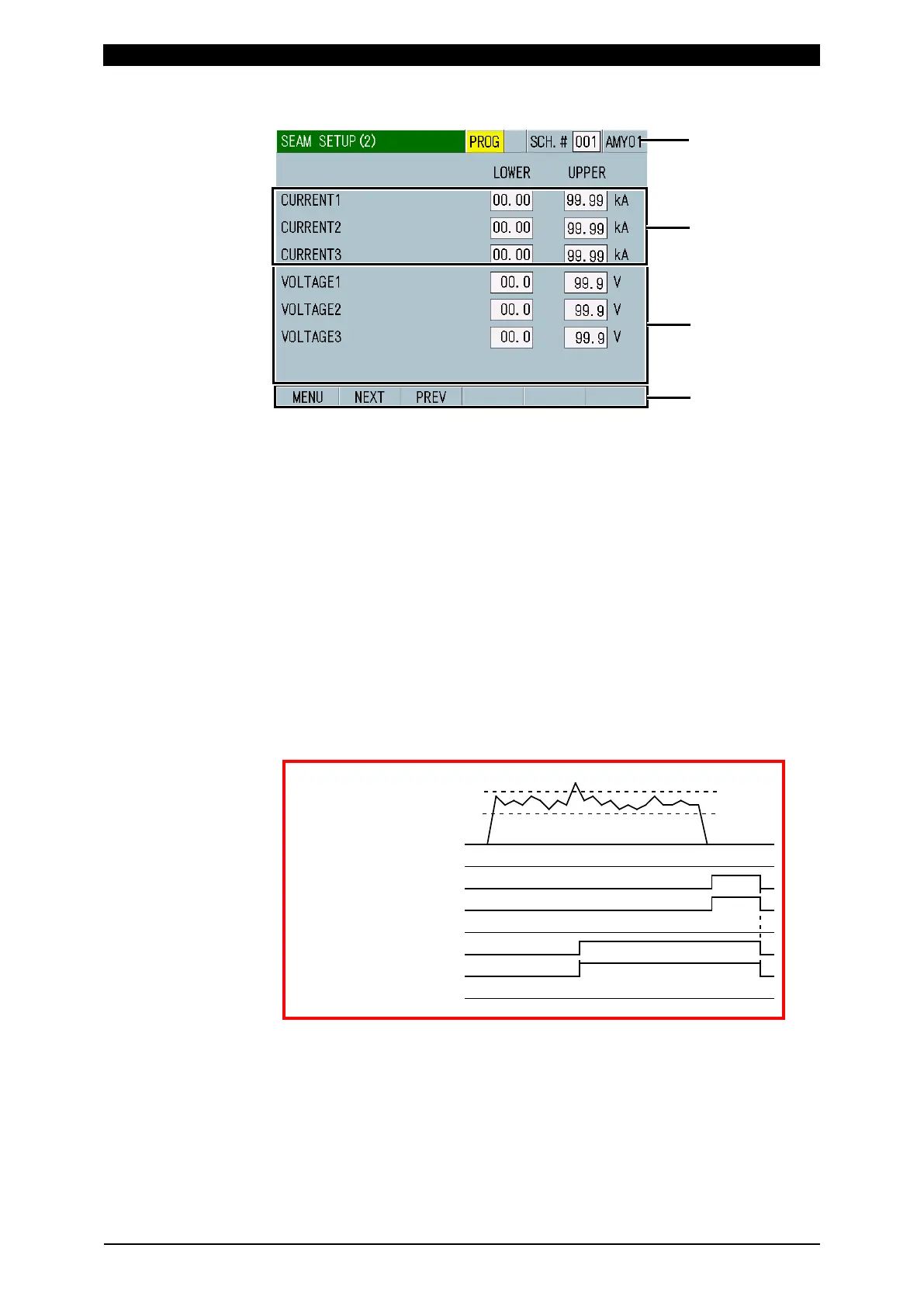

s-2. SEAM SETUP (2) Screen
(1) SCH.#
Shows the measurement schedule number used (1 to 127). On the other hand,
you can change schedules by selecting this field and inputting a value.
(2) Schedule name
Shows the name of SCH.#. This can be set in the BASIC SETUP (1) screen.
(3) CURRENT 1 to 3
Set upper and lower limit values of the current in the judgment period 1 to 3.
(4) VOLTAGE 1 to 3
Set upper and lower limit values of the voltage in the judgment period 1 to 3
There are two settings for judgment output for CURRENT 1 to 3 and
VOLTAGE 1 to 3, that after the current flow end and that during the current
flow. (Refer to Chapter 8, “o-2. EXT INPUT/OUTPUT (2) (3) Screen.”)
• When exceeding the upper limit
GOOD
UP
PER
L
OWE
R
CURRE
NT/V
OLTA
GE
CURR NG/
V
OLT NG
CURR-U
/VOL
T-U
CURR-L/VOLT-L
BK CURR-L
/BK VOLT-L
BK
CURR-U/
BK VOLT-U
BK CURR
NG/BK VOLT NG
To Next Page
