• When falling below the lower limit
(5) Function keys
MENU: Touching this displays the MENU screen.
NEXT: Touching this displays the SEAM SETUP (3) screen.
PREV: Touching this displays the SEAM SETUP (1) screen.

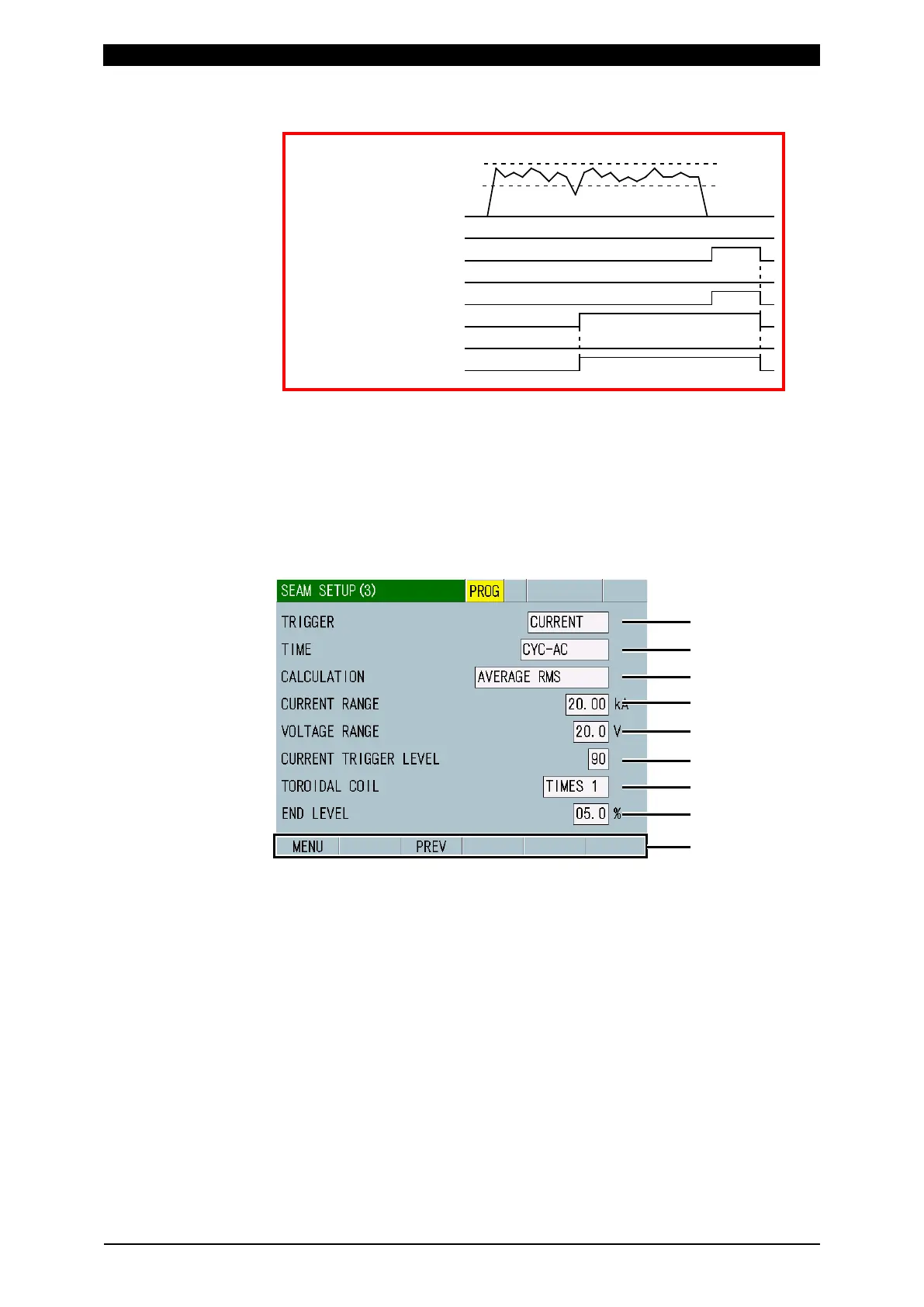

s-3. SEAM SETUP (3) Screen
(1) TRIGGER
Select CURRENT or VOLTAGE.
When the TRIGGER setting is changed, START MEASUREMENT,
MEASUREMENT RANGE, MEASUREMENT INTERVAL, START TIME, and
END TIME may be initialized. Set START MEASUREMENT, MEASUREMENT
RANGE, MEASUREMENT INTERVAL, START TIME, and END TIME again.
(Refer to "s-1. SEAM SETUP (1) Screen.")
(2) TIME
Select from CYC-AC, ms-AC, CYC-DC, ms-DC, and SHORT ms-DC.
The selectable item varies depending on the TRIGGER setting.
(Note) When CURRENT is selected for TRIGGER, CYC-AC or ms-AC can be
selected for TIME. When VOLTAGE is for TRIGGER selected, ms-DC,
CYC-DC, or SHORT ms-DC can be selected for TIME.
GOOD
UPPER
LOWER
CURRENT/VOLTAGE
CURR NG/VOLT NG
CURR-U/VOLT-U
CURR-L/VOLT-L
BK CURR-L/BK VOLT-L
BK CURR-U/BK VOLT-U
BK CURR NG/BK VOLT NG
To Next Page
