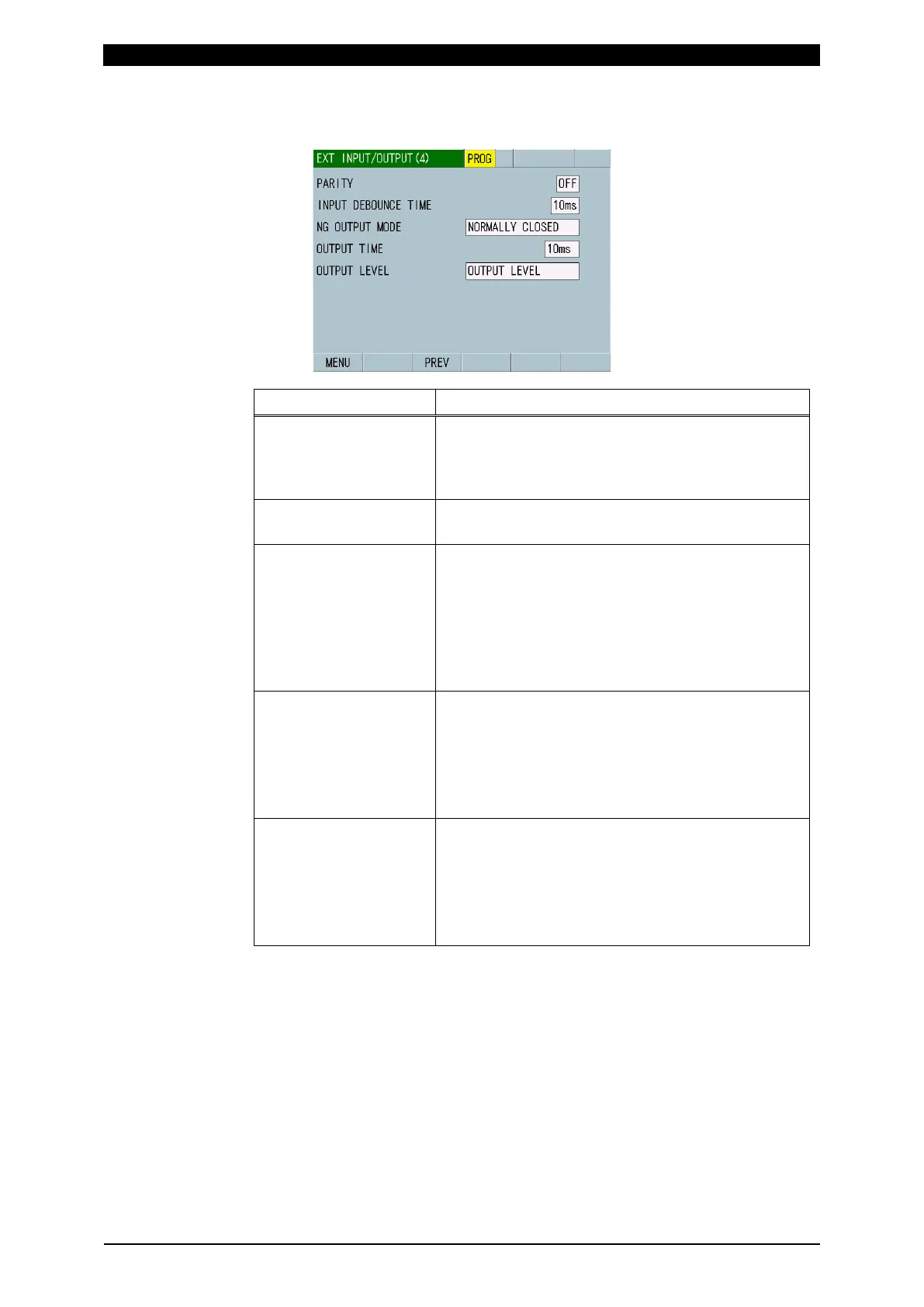

13) Set the following items in the EXT INPUT/OUTPUT (4) screen. (For more
information, refer to (2) o-3 in Chapter 8.)
Item Setting
PARITY Select whether to use parity terminals.
When you select ON, be sure that the total number
of schedule selection and parity terminals that are
closed is odd.
INPUT DEBOUNCE
TIME
Set a delay time from the signal input to when the
signal settles down to 1 ms or 10 ms.
NG OUTPUT MODE Set a mode for the output terminals
GOOD, PREGOOD, COUNT, POWER ON,
READY, and force/displacement/external level
signal work as NORMALLY OPEN irrespective of
the NG OUTPUT MODE setting.
NORMALLY CLOSED: Open at output
NORMALLY OPEN: Closed at output
OUTPUT TIME Select an output time.
10ms: Output time of 10 ms
100ms: Output time of 100 ms
HOLD: Holds output and cancels output at the start
of next measurement, the start of no-current check,
or in the event of an error reset.
OUTPUT LEVEL Select the output method of
force/displacement/external level signal. The pulse
output time is in conformity with OUTPUT TIME, but
it becomes 100 ms when HOLD is selected.
OUTPUT PULSE: Pulse output
OUTPUT LEVEL: Level output
