MM-400A

12. Data Communication

12-5

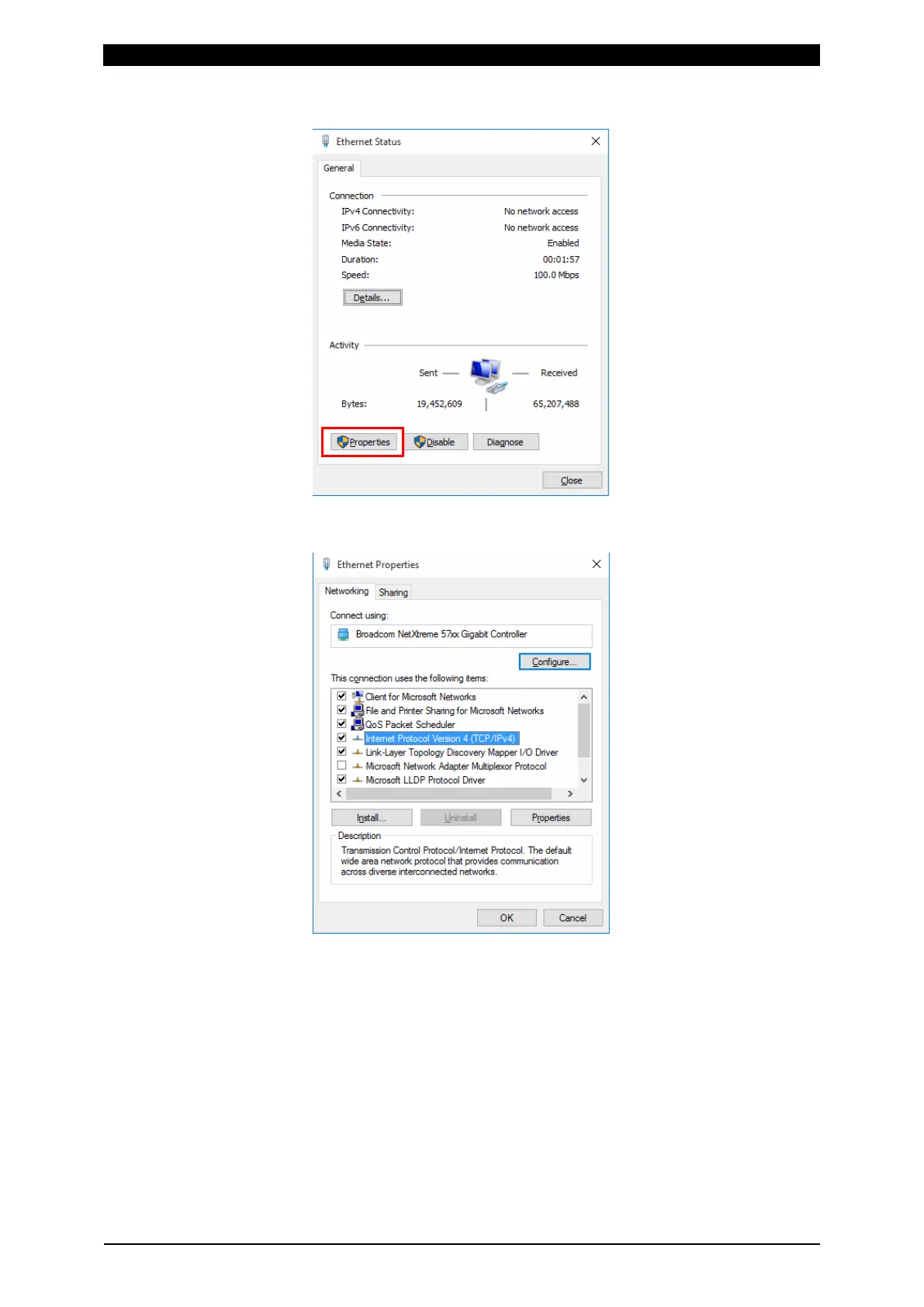

5) Click the [Properties].

6) Select the [Internet Protocol Version 4(TCP/IPv4)] and click the [Properties].
