MM-400A
7. Basic Operation
7-6

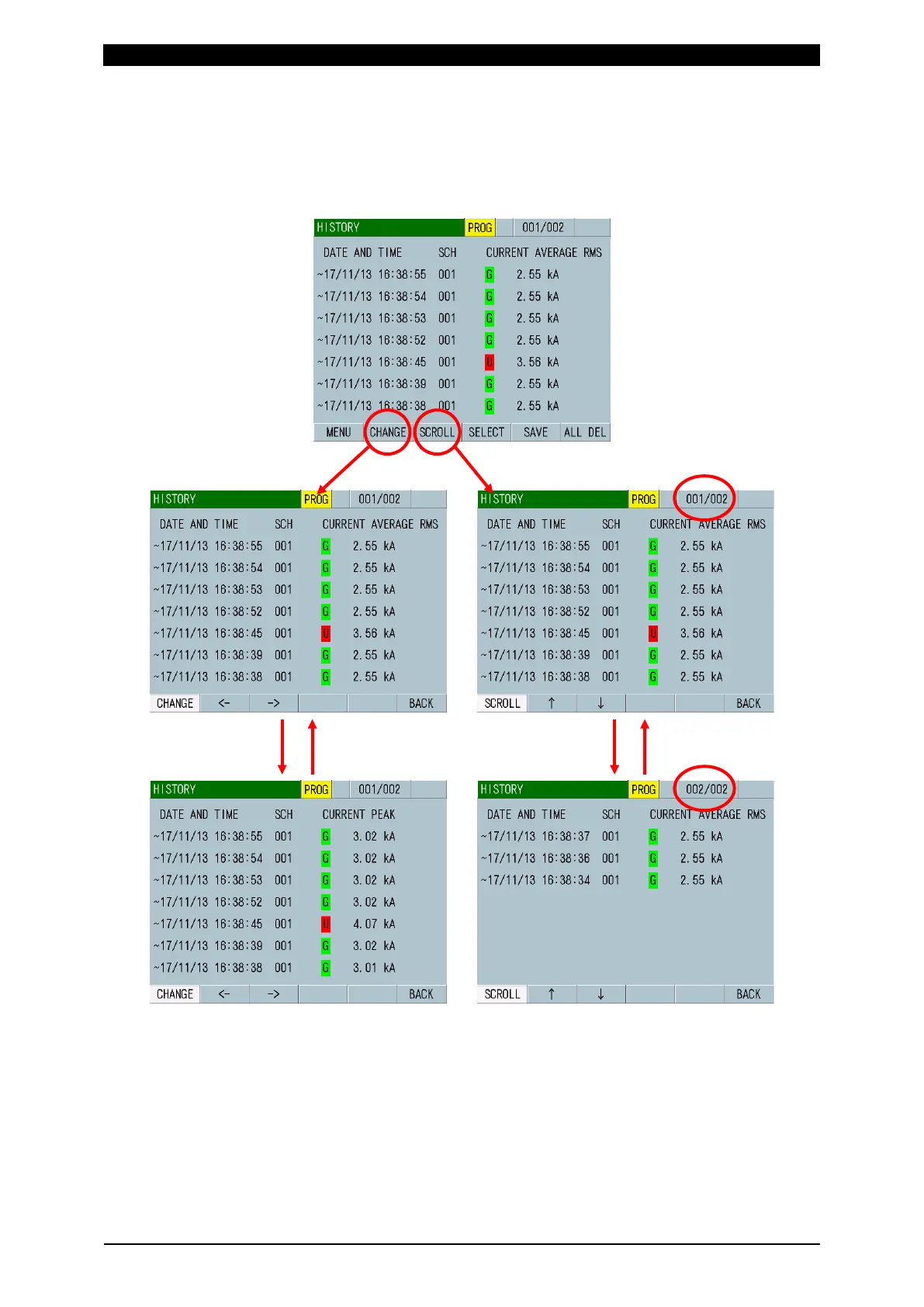

• Scrolling the HISTORY screen.
Touching the CHANGE key on the at the lower portion of the HISTORY screen
displays ← → to switch ten measurement items selected in the VIEW screen.
Touching the SCROLL key displays ↑ ↓ to scroll the screen by seven points.
The page number is shown at the upper-right portion on the screen.
002/002
2
nd
page of 2 pages
001/002
1
st
page of 2 pages
