5) When creating upper/lower limit thresholds of two waveforms based on the
created reference waveform data, create two CSV files for each waveform.
Create data as follows:
Data array (entire arrangement)
When the ENVELOPE is selected for ITEM and touch the SAVE key without
the envelope setting, the above data is created.
The order is the upper limit of SEGMENT#1, the lower limit of SEGMENT#1,
the upper limit of SEGMENT#2, the lower limit of SEGMENT#2, the upper limit
of SEGMENT#3, and the lower limit of SEGMENT#3.

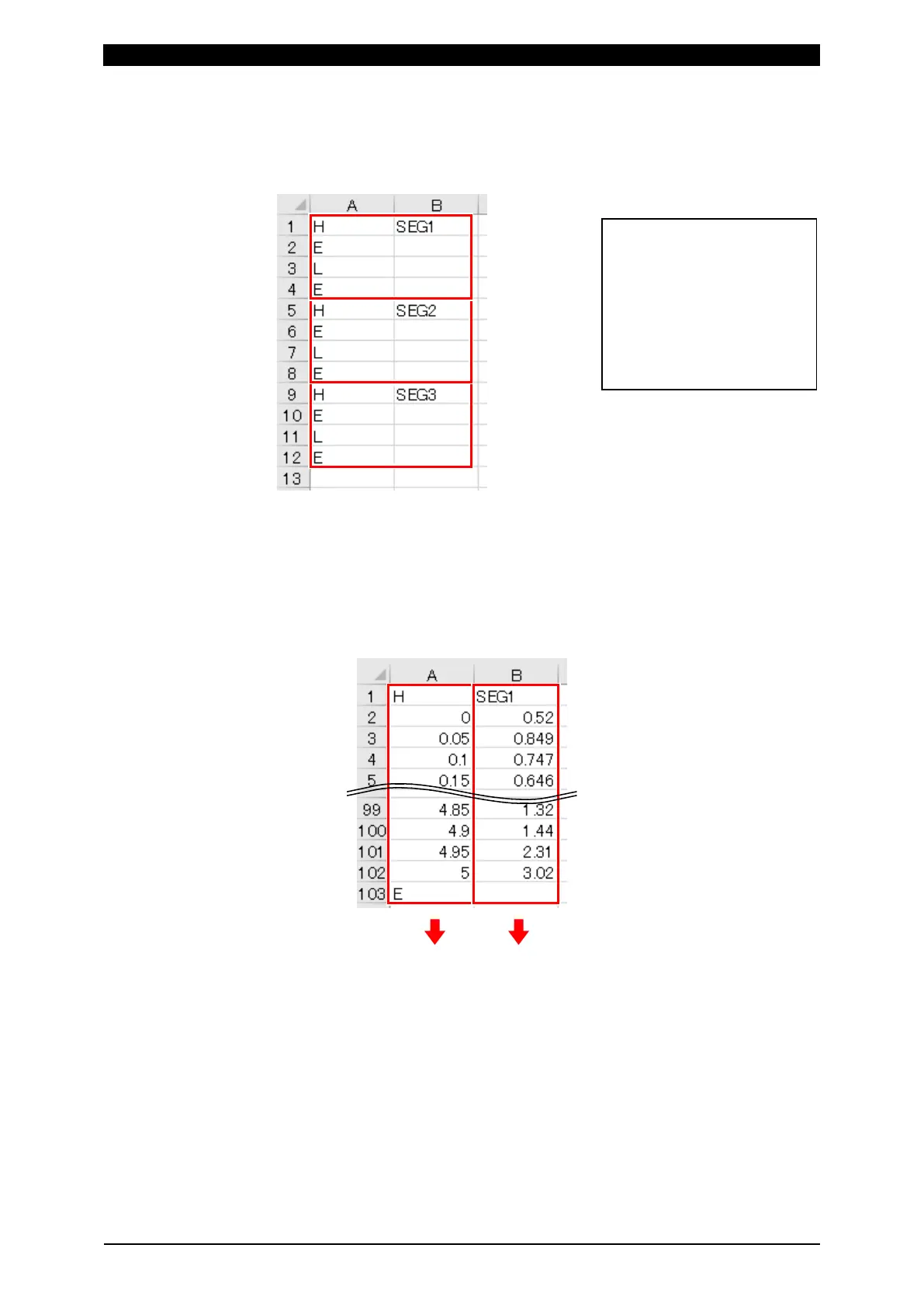

Data array (time and waveform data)
H: Start position of upper limit
E: End position of upper limit
L: Start position of lower limit
E: End position of lower limit
Characters in Column B
SEG1: SEGMENT#1 start
SEG2: SEGMENT#2 start
SEG3: SEGMENT#3 start
SEGMENT2
SEGMENT3
Time interval Waveform data
