(4) Function keys
MENU: Touching this displays the MENU screen.
CURR: Touching this displays the ALL CYCLE screen (Current).
RECALC: Touching this recalculates the measured force and external input.
Use this function to redo the calculation of the mean over a new calculation
interval after changing the force start and end cycle (START TIME, END TIME)
settings in the EXTEND SETUP (4) screen and changing the external input
start and end cycle (START TIME, END TIME) settings in the EXTEND
SETUP (6) screen.
: Touching this moves a page of the screen.
*1: Force/displacement-equipped specification function
(*) How to execute RECALC of force and external
1) Just like RECALC of current/voltage/conduction angle, change start time and
end time of force to recalculate after measurement. The external input is are
also similar.

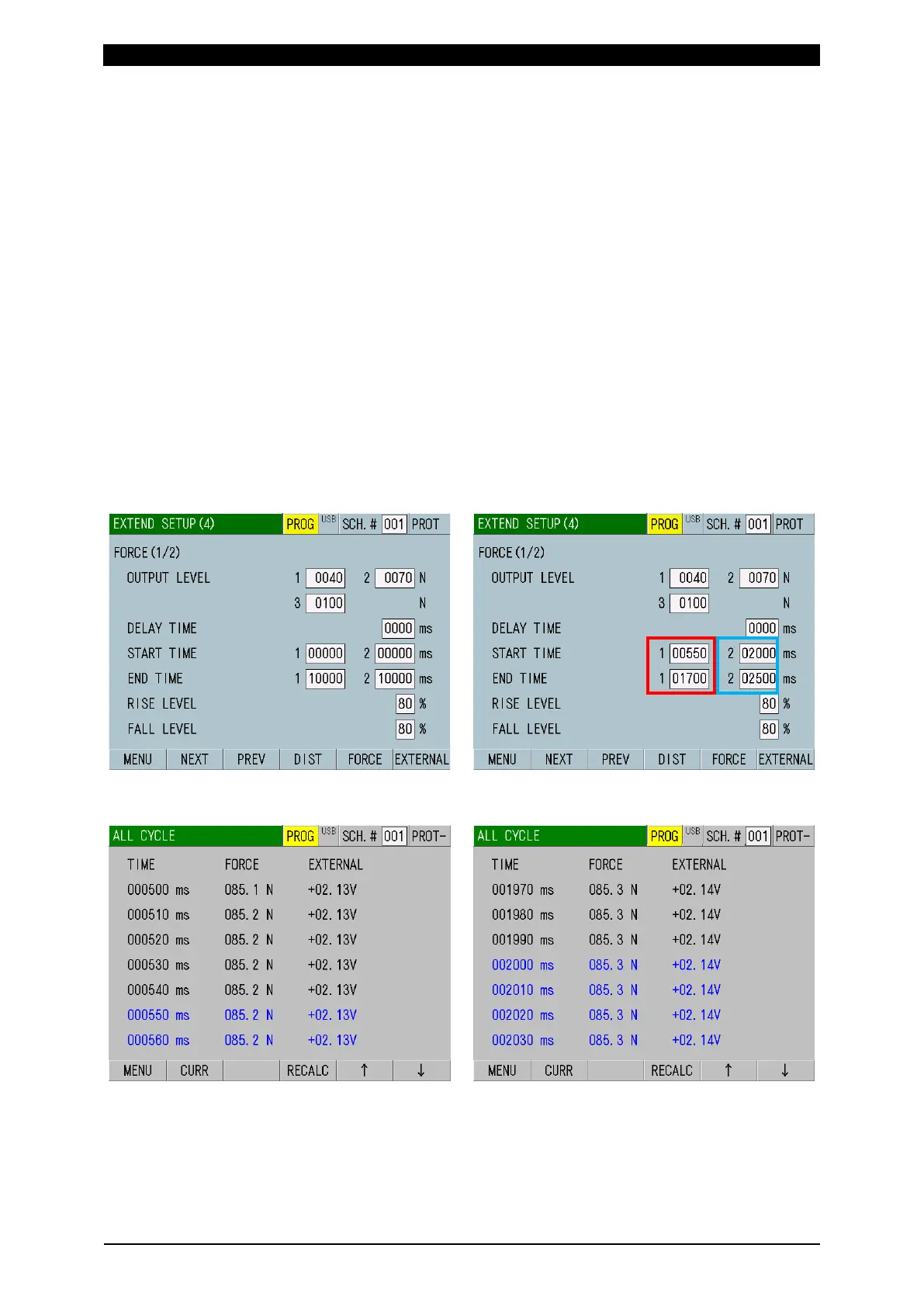

Left: Schedule of measurement before recalculation Right: Schedule of
recalculation
2) Touching the RECALC key changes the color of range omitted from calculation
from blue to black. Left: Force average 1 Right: Force average 2
