MM-400A
8. Operation Screens
8-58

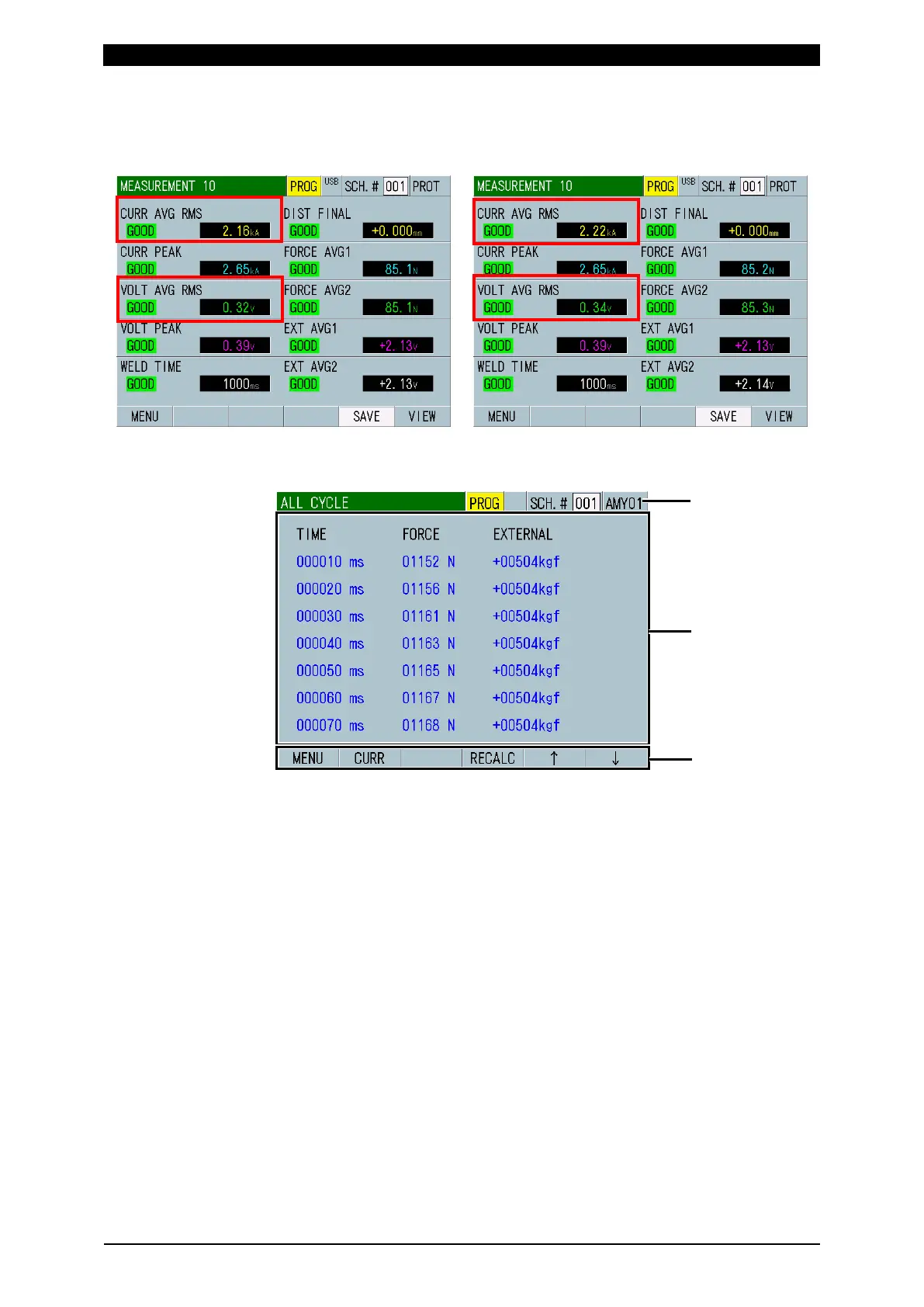

3) Left: Measured value before recalculation Right: After recalculation
Since the RMS calculation starts from 6 ms, the rising part is omitted from the
measured value.
j-2. ALL CYCLE Screen (Force)
(1) SCH.#
Shows the measurement schedule number used (1 to 127). On the other hand,
you can change schedules by selecting this field and inputting a value.
(2) Schedule name
Shows the name of SCH.#. This can be set in the BASIC SETUP (1) screen.
(3) RMS per cycle
Shows the RMS FORCE and EXTERNAL every 10 ms. The area with values
shown in blue represents the calculation interval.
