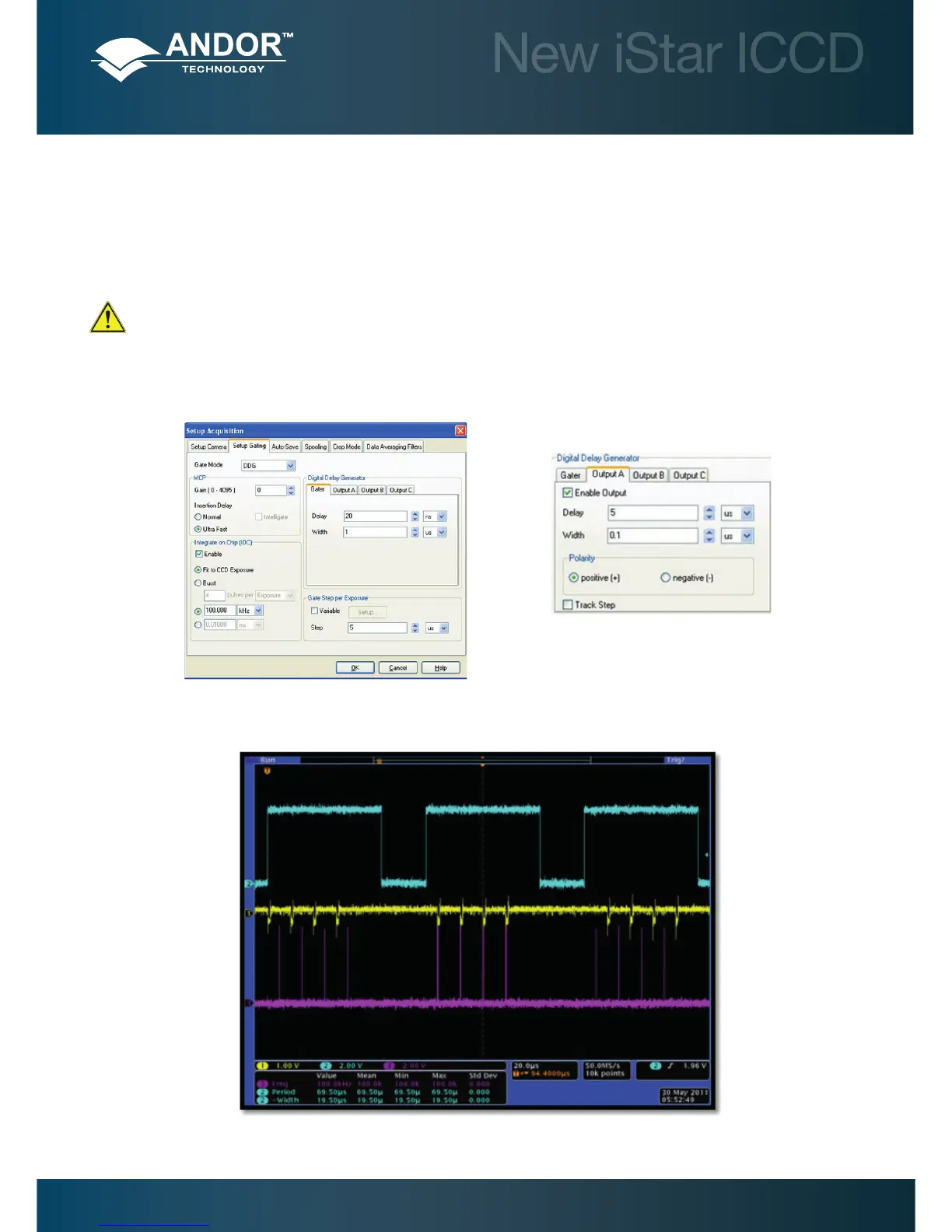

6.1.5.4 - IOC and Gate Step Enabled
Description
Several gate pulses are generated within an exposure. For every successive exposure in the series, the gate delay
applied is incremented by the gate step value.
The re pulse rate cannot exceed 15 kHz in this particular mode.
Setup
IOC enabled, gate step enabled, Output A enabled (trackstep disabled).
Waveforms
Operation
Fire
Gate Monitor
Output A
