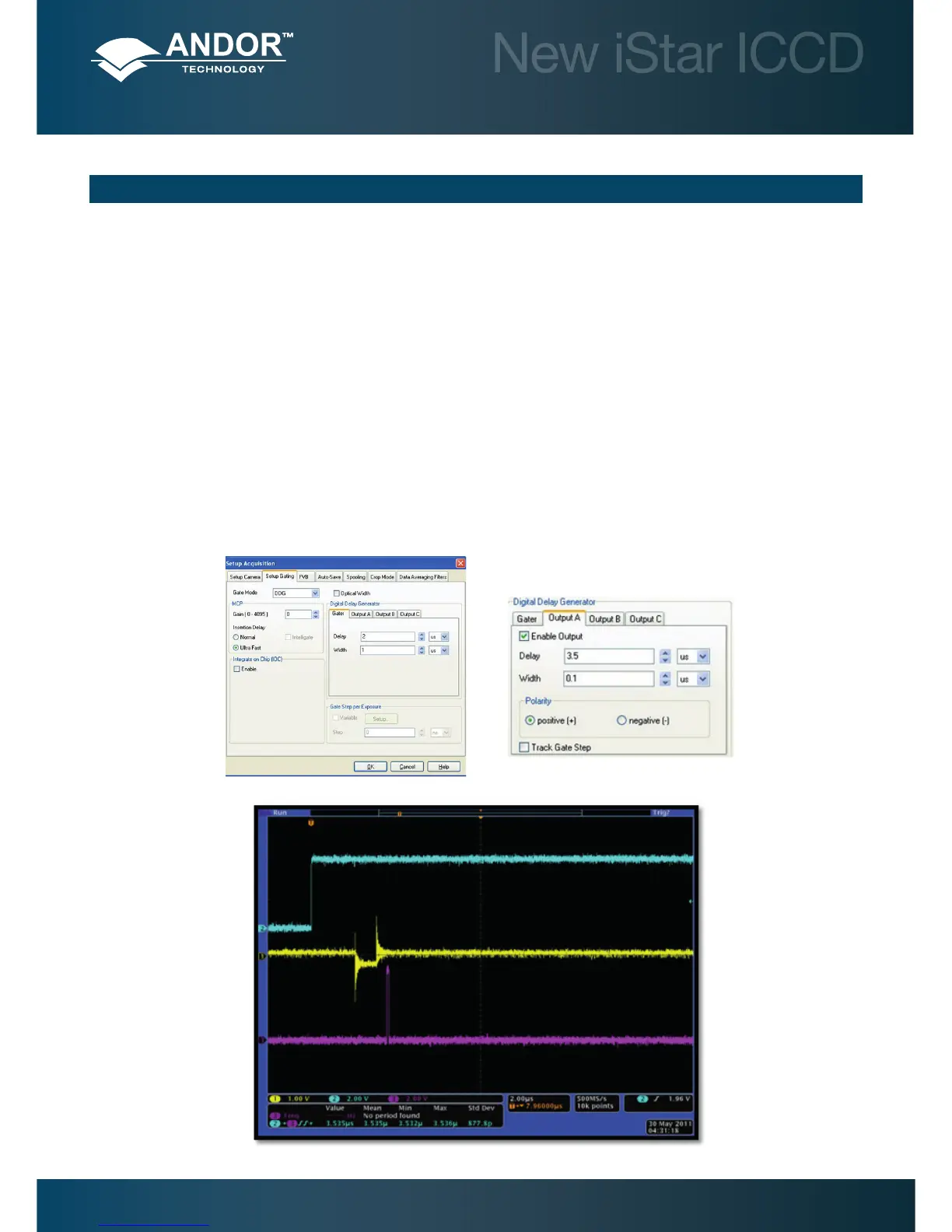

New iStar ICCD
6.1 - TRIGGERING: INTERNAL
6.1.1 - Acquisition Mode: Single
6.1.1.1- Standard Operation (IOC Disabled)
Description
One gate pulse is generated within the exposure. A delay relative to the rising edge of the Fire pulse can be applied to
the Gate pulse (and output A/B/C).
Setup
IOC disabled, output A enabled.
Waveforms
Operation
SECTION 6 - OPERATION: GATING, TRIGGERING & SYNCHRONIZATION
Fire
Gate Monitor
Output A
