New iStar ICCD

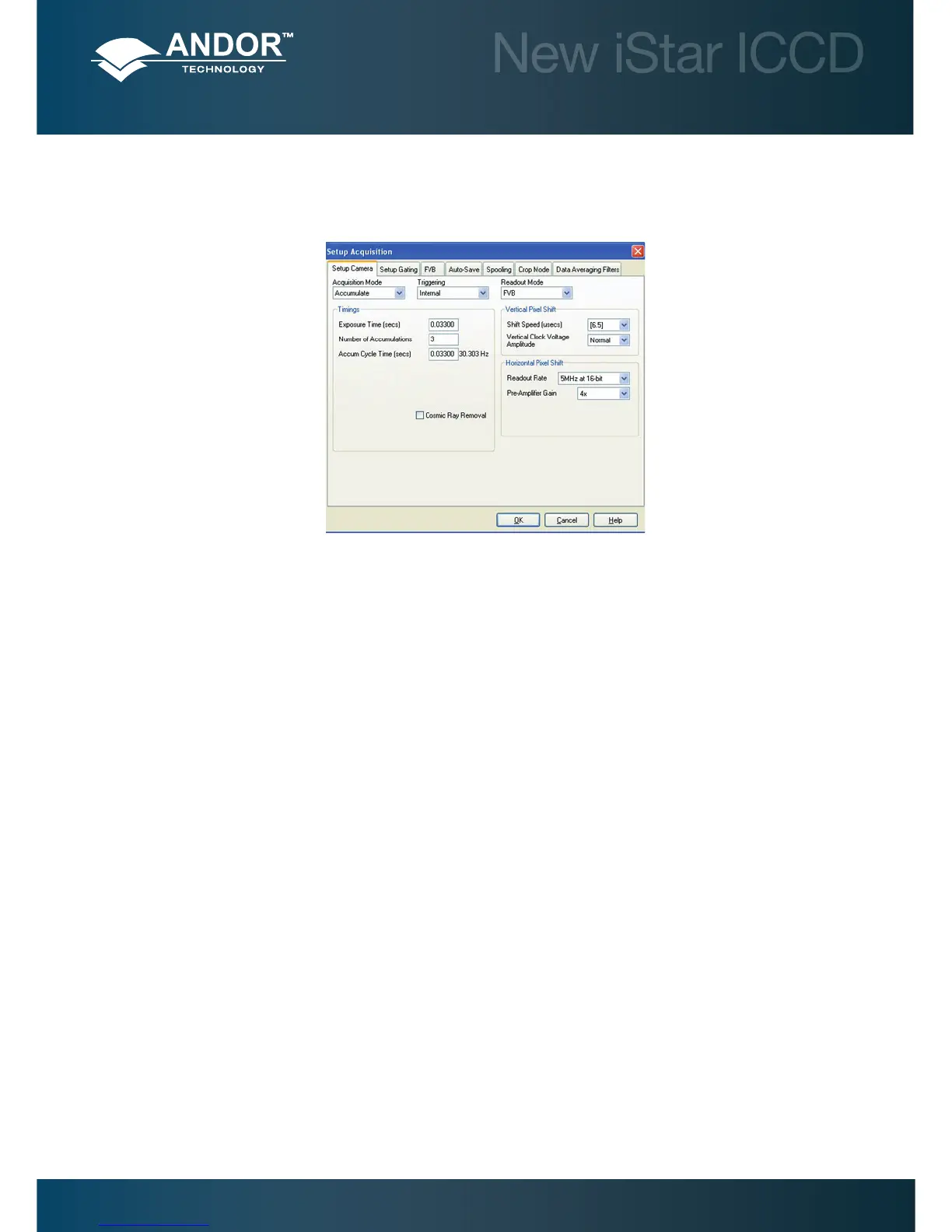

6.1.2 - Acquisition Mode: Accumulate
A number of individual frames will be added together to produce the nal accumulated image.
6.1.2.1 - Standard Operation (IOC Disabled)
Description
One gate pulse is generated within an exposure. The gate delay is the same for each of the exposures involved.
Setup
IOC disabled, gate step disabled, output A enabled.
Waveforms
Timings are the same as in kinetic series: 1 accumulation, standard operation (IOC disabled and gate step disabled). See
sections 6.1.3.1.1 and 6.1.3.2.1.
6.1.2.2 - Integrate on Chip (IOC)
Description
Several gate pulses are generated within each exposure. The gate delay is the same for each of the exposures.
Setup
IOC enabled, output A enabled.
Waveforms
Timings are the same as in kinetic series: 1 accumulation, IOC enabled. See sections 6.1.3.1.2 and 6.1.3.2.2.
Operation
