Andor Technology New iStar User Manual

Page 125
New iStar ICCD
Operation
6.2.2.2.2 - Integrate on Chip (IOC) Enabled
6.2.2.2.2.1 - Default: One Pulse per Trigger
Description
Several gate pulses can be generated within an exposure. A gate delay is applied that is the same per every trigger
within an accumulated image. The gate delay is also the same for every accumulated image that is returned. Every
external trigger within an exposure will generate only one gate.
Setup
IOC enabled, output A/B/C disabled.

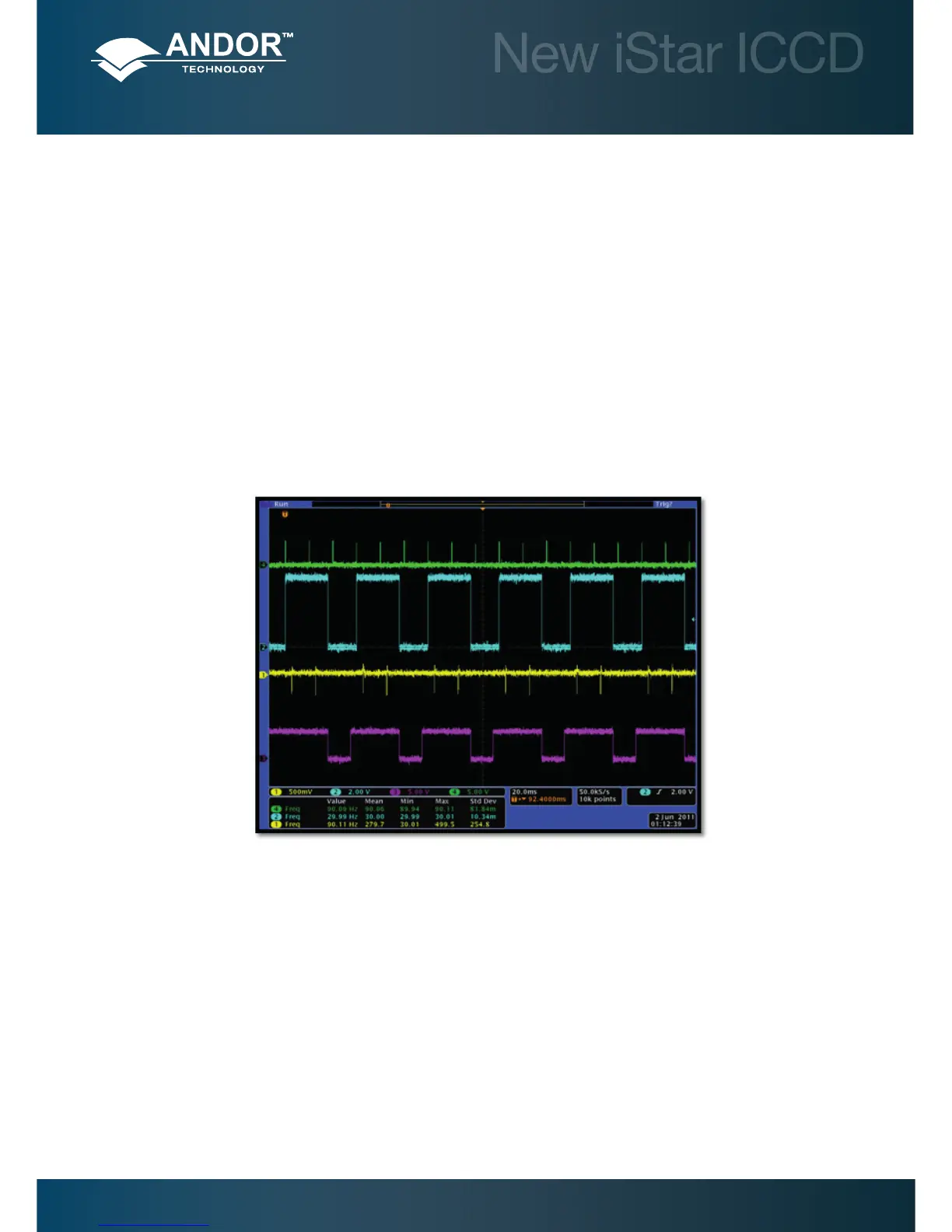

Waveforms
External Trigger
Fire
Gate Monitor
ARM
One Pulse per Trigger
