Operation
6.2.2.1.4 - IOC and Gate Step Enabled
6.2.2.1.4.1 - Default: One Pulse per Trigger
Description
Several gate pulses can be generated within an exposure. A gate delay is applied that is the same per every trigger
within an exposure. For every successive exposure in the series, the gate delay applied is incremented by the gate step
value. Every external trigger within an exposure can generate only one gate pulse.
Setup
IOC enabled, gate step, output A/B/C disabled.

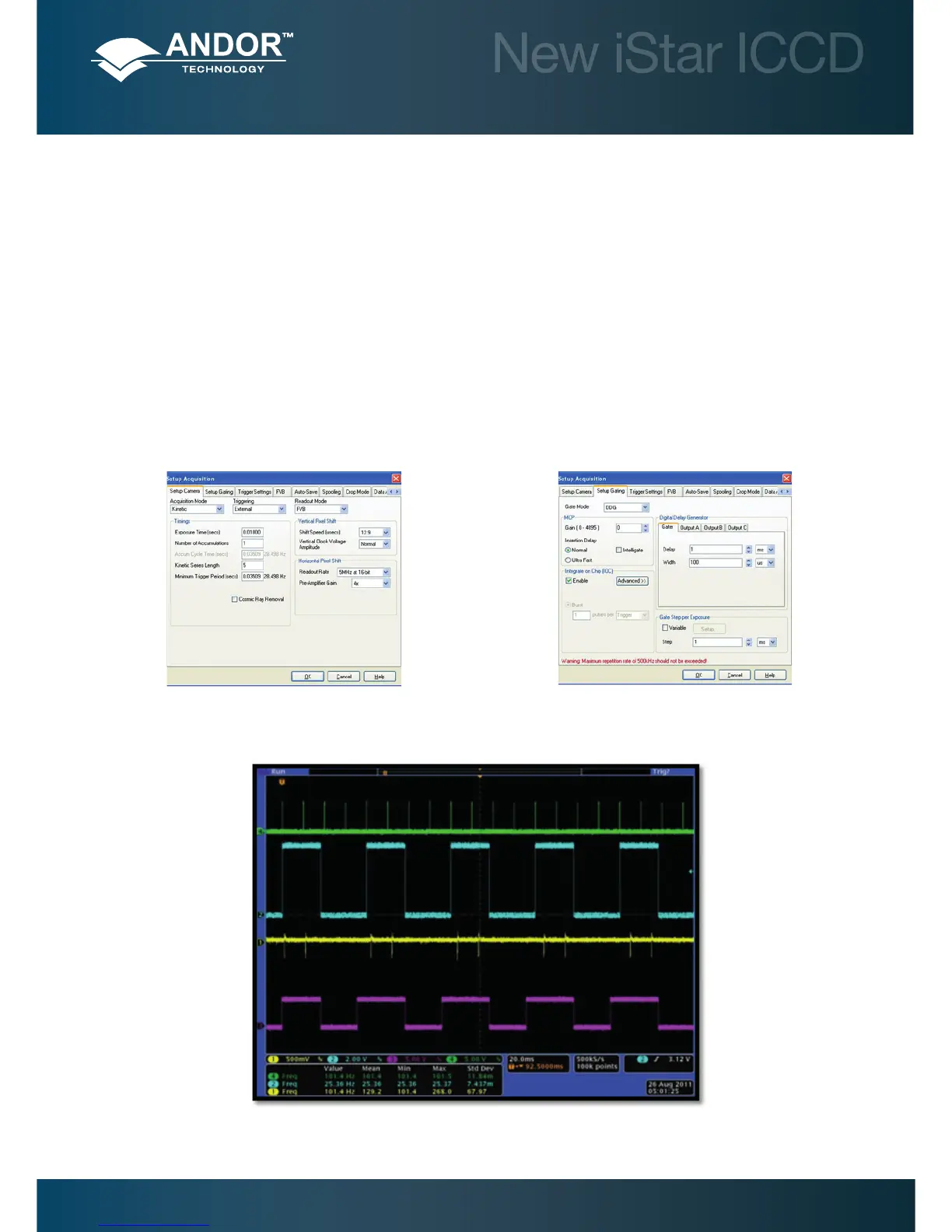

Waveforms
CCD Settings
One pulse trigger
External Trigger
Fire
Gate Monitor
ARM
