New iStar ICCD
6. 2 - TRIGGERING: EXTERNAL
6.2.1 - Acquisition Mode: Single
6.2.1.1 - Standard Operation (IOC Disabled)
Description
The external trigger generates one gate pulse per exposure. A delay relative to the trigger can be applied to the gate
pulse (and output A/B/C). Any subsequent triggers that arrive during the exposure are ignored.

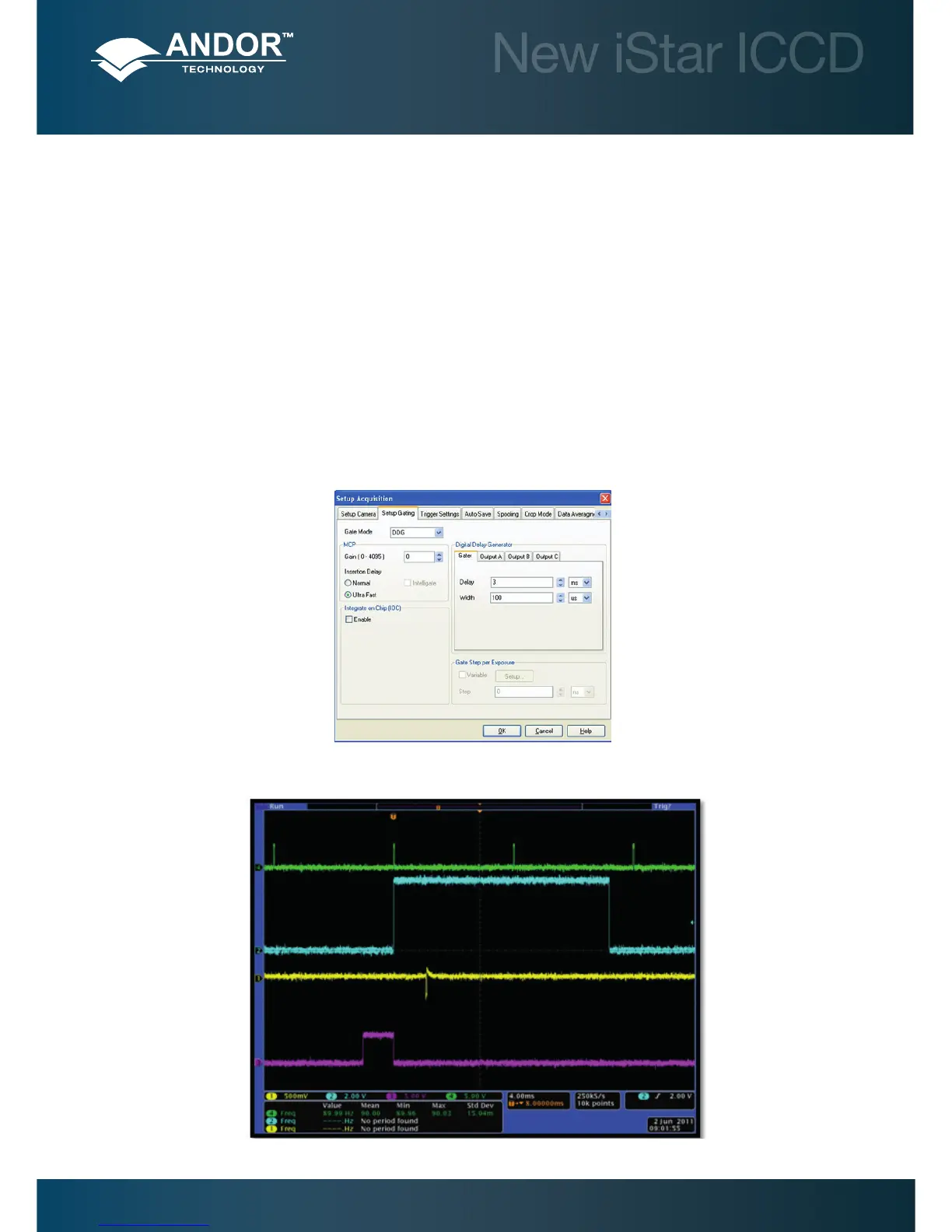

Setup
IOC disabled.
Waveforms
Operation
External Trigger
Fire
Gate Monitor
ARM
