Operation
6.2.2.2.4 - IOC and Gate Step Enabled
6.2.2.2.4.1 - Default: One Pulse per Trigger
Description
Several gate pulses can be generated within an exposure. A gate delay is applied that is the same per every trigger
within an accumulated image. The gate delay is incremented for every accumulated image that is returned .Every
external trigger within an exposure can generate only one gate pulse.
Setup
IOC enabled, gate step enabled, output A/B/C disabled.

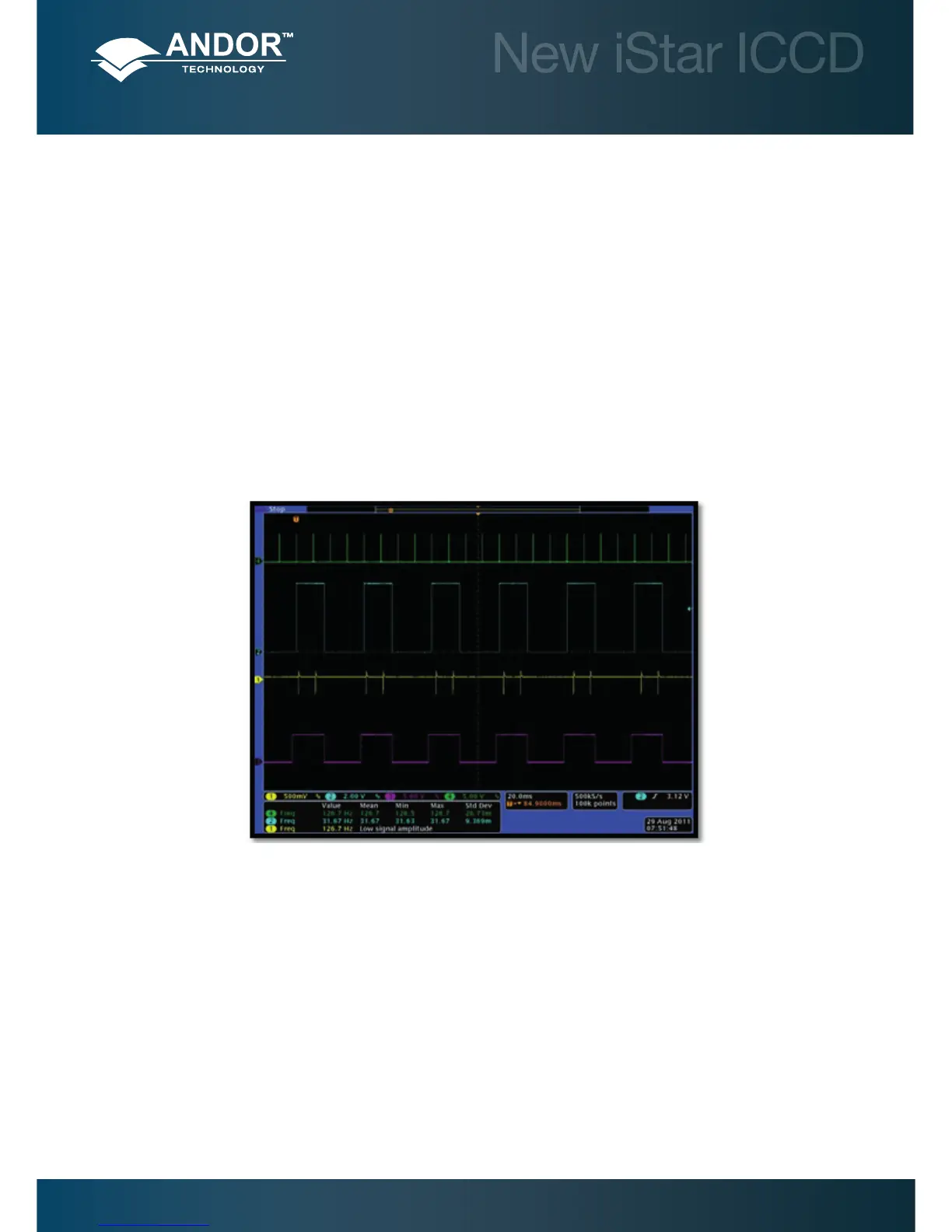

Waveforms
External Trigger
Fire
Gate Monitor
ARM
One Pulse per Trigger
